Description

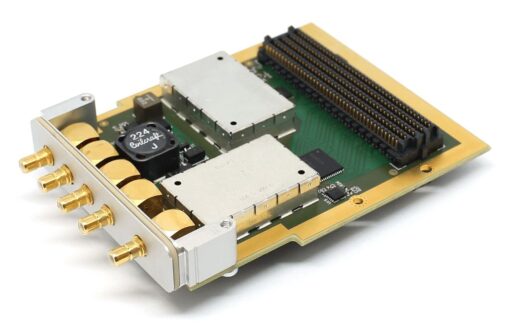

The Creonic L-band RF receiver FMC card allows you to receive RF signals between 925 and 2,250 MHz. It is ideally suited for satellite communication with standard satellite dishes since it includes a DiSEqC driver IC for LNB controlling. The board allows building receivers with symbol rates of up to 100 Msymbols/s. Due to the low-pin-count (LPC) FMC connector it can be used with any FMC carrier board that supports VADJ=1.8V.
Key Components and Features
- LPC FMC connector, compliant with VITA 57.1 FMC standard
- MAX2121B RF Tuner (925 – 2,250 MHz) to ZF
- Programmable baseband bandwidth from 40 MHz to 100 MHz
- Dual-channel 12-bit ADC, 250 Msps
- Temperature compensated crystal oscillator (TCXO) for high frequency stability
- Clock generation with optional external clocking
- DAC for analog RF gain control (LNA)
- DiSEqC 13/18V, 22 kHz driver for LNB control
- 75 Ohm SMB connectors for RF and clock signals
- 1.8V LVDS IOs
- Voltage and temperature sensors
Scope of Delivery
- FMC PCB
- FPGA firmware (VHDL for Xilinx FPGAs)
- Software firmware (C++)
- Comprehensive documentation
