HSMC DisplayPort 1.2 Daughter Card


GX FPGA DisplayPort interface Daughter Card with HBR2 re-drivers.

SKU: hsmc-dp-card

Category: FPGA Daughter Cards


Available on back-order



The Bitec HSMC Displayport Daughter Card is designed to interface Altera GX FPGA devices to DisplayPort source and sink devices. The daughter card is compatible with the Bitec DisplayPort IP Core.

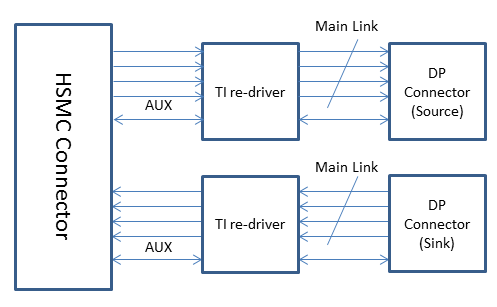

High speed, 5.4 Gbps DisplayPort re-drivers are used on both the Source and Sink main link signal paths to improve signal integrity. The re-drivers ensure close PHY layer compatibility at the DisplayPort connectors.


  • Source and Sink interfaces
  • Supports DisplayPort 1.2 HBR2 data-rate (5.4 Gbps)
  • Integrated TI re-drivers on main link data paths
  • Compatible with Altera GX development kits
  • Clock and I/O expansion interface

The board has been tested using numerous third party DP 1.2 Sinks and Sources.
