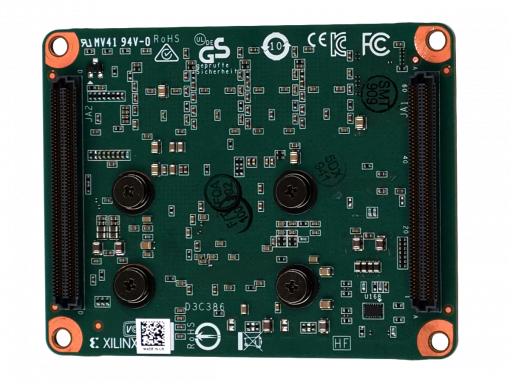

Kria K26 System-on-Module

£300.00

The newest path to whole application acceleration, the K26 SOM is optimized for edge vision applications requiring flexibility to adapt to changing requirements.



Part Number: SM-K26-XCL2GC

Data Sheet



13 in stock

Category:

Description

Designed to Enable Smart City and Smart Factory Applications

  • 3X vision AI performance and 2X performance-per-watt versus competing SOMs1
  • Native ROS 2 support for 5X productivity for robotics and industrial automation

Out-of-the-Box Hardware Acceleration

  • Leverage pre-built accelerated applications without needing FPGA place-and-route
  • Tailor AI models and application code to your requirements

Production Qualified and Certified Commercial and Industrial Grades

  • Commercial: operating range 0 to 85°C for smart camera, embedded vision, tracking & identification
  • Industrial: operation range -40-100°C and ruggedized for extreme environments

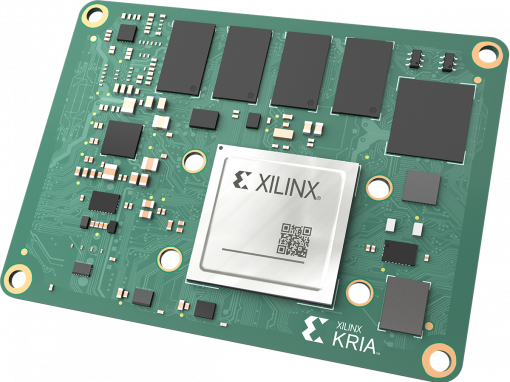

The K26 SOM features an exclusive, custom-built XCK26 SoC based on the Zynq® UltraScale+™ MPSoC architecture, that has been configured for enhanced acceleration of vision AI applications.

Specifications



Area Parameter K26

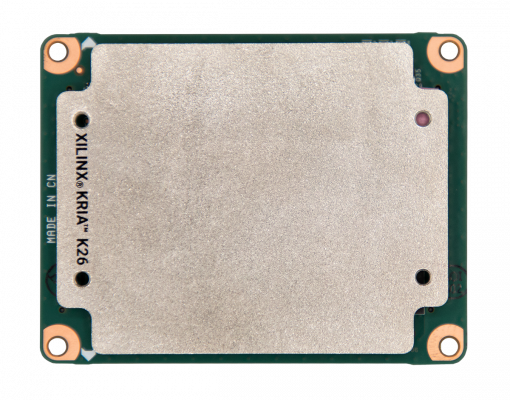

Form Factor Dimensions (with heat spreader) 77mm x 60mm x 11mm
Processor Unit & Acceleration Application Processor Quad-core Arm® Cortex®-A53 MPCore™ up to 1.5GHz
Real-Time Processor Dual-core Arm Cortex-R5F MPCore up to 600MHz
Graphics Processing Unit Mali™-400 MP2 up to 667MHz
Video Codec Unit (VCU) 1 – up to 32 streams (total resolution ≤ 4Kp60)
Trusted Platform Module (TPM) Infineon 2.0
Memory On-Chip* 26.6Mb On-Chip SRAM
On-SOM 4GB 64-bit DDR4 (non-ECC) and 16GB eMMC
Connectivity High-Speed PS Connectivity (GTR) PCIe® Gen2 x4, 2x USB3.0, SATA 3.1, DisplayPort, 4x Tri-mode Gigabit Ethernet
General PS Connectivity (MIO) 2xUSB 2.0, 2x SD/SDIO, 2x UART, 2x CAN 2.0B, 2x I2C, 2x SPI, 4x 32b GPIO
Transceivers GTH 12.5Gb/s Transceivers 4 (PCIe Gen3 x4, SLVS-EC, HDMI 2.0, DisplayPort 1.4)
GTR 6Gb/s Transceivers 4
I/O Count PS MIO (1.8V) 49
PL High-density (HD) I/O (3.3V) 69
PL High-performance (HP) I/O (1.8V) 116
Programmable Logic System Logic Cells (K) 256
DSP Slices 1,248
Power & Thermal Typical Power 7.5W
Maximum Power** 15W

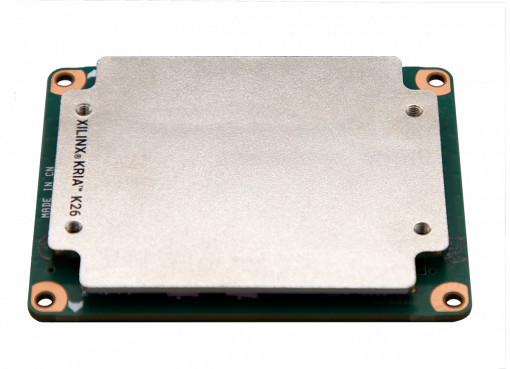

Thermal Interface Passive (Heat spreader)
Speed and Temp Grade Commercial -2 speed grade, low voltage and 0 to 85°C temperature range
Industrial -2 speed grade, low voltage and –40 to 100°C temperature range

Downloads



  K26 Product Brief

  K26 SoM Data Sheet

  Kria K26 SOM: The Ideal Platform for Vision AI at the Edge
