Description
Computer-On-Module (COM), is a highly integrated board with CPU, chipset, memory, and peripherals designed into a component module. COM Express Type 6 has become the most versatile and most scalable COM standard supporting everything from small-scaled and cost-sensitive applications up to high-end computing and graphics-intensive solutions.

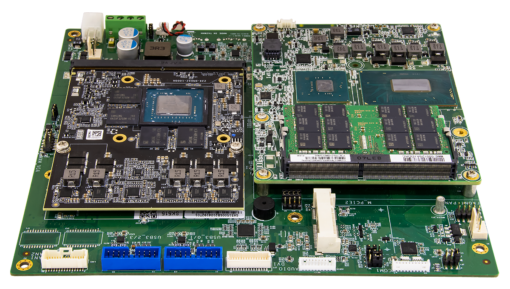

7StarLake’s SK515-T6 COM Express defines Open Scalable Modular Architecture and pin-out Type 6 platform which is ensuring amazing computing performance and offering a broad range of I/O interfaces including intense graphics support, Digital Display Interfaces (Display Port, HDMI) and super-fast USB 3.0 to serve all kind of different application requirements.
SK515-T6 pin-out Type 6 is a complementary specification to the existing Type 6 pin-out. It is replacing the graphics support by offering multiple 10GbE-KR ports and defining 32 PCIe lanes. The Type 6 is an ideal definition to design server-grade platforms for applications requesting high data and network throughput.
SK515-T6 support a wide range of Intel processors, including 13th Gen core i7-13800HE and Industrial Temp grade of i7-13800HRE, feature advanced hybrid architecture with Performance and Efficient cores for optimized power usage. What’s more, SK515-T6 has the capability to operate in harsh environment. It accepts the extend range of temperature from -40 to 85°C. With outstanding computing capability and efficient thermal design, SK515-T6 is very suitable for industrial, military/aerospace and transportation.
