Velociraptor HS / 2.2MP C

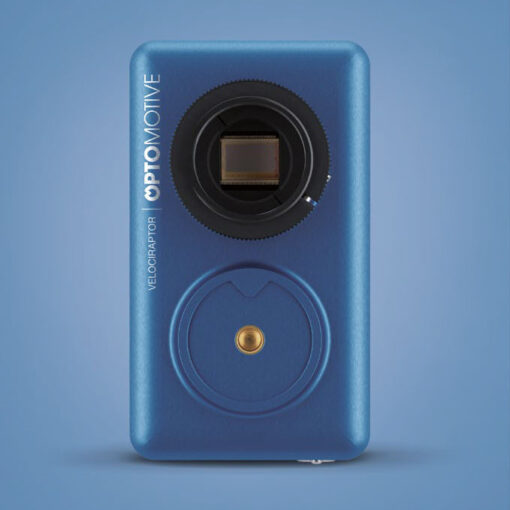

VELOCIRAPTOR HS is the ultimate FPGA camera with a very large Xilinx Spartan-6 FPGA and high-speed imaging sensor. It is developed to fill the gap in the market between standard industrial cameras and high-speed cameras. The Camera has small and ruggedized waterproof aluminum housing design (90x52x40 mm) with an innovative mounting system (balljoint). It is Ethernet powered (IEEE 802.3at PoE) with a power consumption up to 10W. Imaging sensors were carefully selected and the ones selected were the best market has to offer: turbocharged CMOSIS imaging sensors CMV2000 (2048×1088 pixels, 2/3’’ size) or CMV4000 (2048×2048 pixels, 1’’ size).

The sensors include all features a modern machine vision sensor should have: a global shutter, several high dynamic range modes and an overlapping trigger mode. As already mentioned the sensor is very fast and outputs up to 768 million pixels per second resulting in 331 FPS (CMV2000) and 176 FPS (CMV4000). At a reduced frame size the frame rate can go up to 5000 frames per second.

With high-performance FPGA System-on-Chip (SoC) technology, the Velociraptor camera family opens new dimensions in computer vision. It is a global shutter high-speed camera with incredible frame rates and a range of real-time image-processing cores (JPEG compression, color processing, etc.).

A JPEG compression core operating at maximum frame rate is offered with this camera. This core was developed especially for this camera, since there was no JPEG core with sufficient performance available on the market. The compression core enables long recording of high-speed video and direct PC storage.


  • Motion analysis and slow-motion photography – from understanding river erosion to unravelling the mysteries of the flight of fruit flies
  • Ballistics – freeze the motion of an in-flight bullet
  • Sports – golf, baseball, basketball or football
  • Medical imaging – body movement analyses
  • Troubleshooting analysis
  • Broadcast – high-speed video capture and slow-motion replay



Active pixels H x V 2048 x 1088
Imaging sensor CMOSIS
Resolution (MP) 2.2 MP
Spectral options colour
Optical format 12.7 mm (2/3”)
Active pixels (H x V) 5.5 μm
Frame rate (FPS) 331 FPS
Dynamic Range 10bit/12bit 60 dB


ADC Resolution 10 bit
Analogue Gain 1 – 3.2x
Region of Interest YES, with 8 pixel increments
Shutter Type Electronic global shutter
Shutter Time 20us – 90 s
Pixel Clock Speed 760 MHz (8 pixels @ 95 MHz)
Exposure Linear, 3 slope high dynamic range
Pixel Correction Dead pixel correction and programmable LUT
Trigger Modes Free running, trigger, overlap, pulse width
Trigger Features Delay 0 – 1000 ms, LP Filter 1.5Hz – 100 kHz
Shutter Resolution 21 ns
FPGA Spartan-6LX
Volatile Memory 2x 128 MB DDR3 SDRAM
Non-volatile Memory 8MB flash
Lens Mount C-mount (1” 32G thread)
Temp Range 0 – 50°C
Mass 50 g OEM / 290 g with housing
Protection Up to IP67 with housing
Housing Material CNC-machined aluminum, anodized in a special OptoMotive blue color
RoHS RoHS compliant
Fixing Holes 4 x M3 OEM / 2 x M6 with housing
Input Voltage Power over Ethernet, 42-57V
Consumption up to 10W
IO Isolation No, but camera has 1.5kV PoE isolation
Connectors RJ45, 4 pin LEMO EXG 00 304
Real-time Image Processing Yes. JPEG compression core implemented as a standard configuration
On-board Image Processing As an option (if an IP Core is integrated)
Open Reference Design Yes
Open architecture Yes
Software Compatible with OptoMotive SHARKi software and any other GigE vision software
Operating System Windows 7, Windows 10, 64bit or 32bit
Protocols GigE Vision® 1.2 and GenICam™ 2.0 compliant
Development Tools Xilinx ISE/EDK version 13.3 or later, Microsoft Visual Studio 2010
