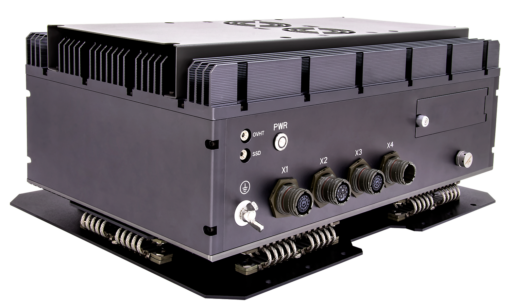

AV800

Military Rugged GPU Server, Tesla T4 GPU & Intel® Xeon® D-2183IT, MIL-461 18V~36V DC

  • Ultra-High Performance Intel® Xeon® Skylake-D D-2183 IT (16C, 3.00 GHz)
  • NVIDIA TELSA T4 GPU Integrated (2560 CUDA, 16GB GDDR6)
  • MIL-STD-810 Thermal, Shock, Vibration, Humidity
  • 512GB DDR4-2666 MHz
  • 2x10GbE, 2xGbE , IPMI Support
  • NVMe for Fast & Mass Storage
  • IP65 Rating with DTL38999
  • MIL-STD 461 EMI 18V~36V DC-In
  • Dimension : 405 x 316 x 154 mm (DxWxH)
  • Extended Temperature -20°C to +55°C



 AV800 Datasheet

 AV800 User Manual

 7StarLake_XEON-D_DM_0711



CONTACT US FOR A QUOTE
Category:

Description

AV800 is 7StarLake ruggedized AI inference platform specifically designed for NVIDIA® Tesla T4 and supports Intel® Xeon® Skylake- D D-2183IT Processor. Utilizing 7StarLake’ Open, Modular, Scalable Architecture, AV800 provide optimized cooling solution for Tesla T4, ensure the stable system operation in harsh environments. In addition to Tesla T4, AV800 provides one M.2 NVMe slot for fast storage access. Combining stunning inference performance, powerful CPU and expansion capability, it is the perfect ruggedized platform for versatile edge AI applications.

AV800 ruggedized AI inference platforms designed for advanced inference acceleration applications such as voice, video, image and recommendation services. It supports NVIDIA® Tesla T4 GPU, featuring 8.1 TFLOPS in FP32 and 130 TOPs in INT8 for real-time inference based on trained neural network model.

Computing Features

  • Xeon D2183IT (2.0GHz, 16 cores, 32 threads)
  • 4 x DDR4 2400Mhz RIMM ECC (up to 512GB)
  • Nvidia Tesla T4 GPU (2560 CUDA, 16GB GDDR6)
  • 1 x M.2 2280 M-key (SATA/PCIe 3.0×4 NVMe)
  • 2 x 2.5” SATA SSD (Easy Swappable)

I/O and Expansion Options

  • X1 : Two 10GbE LAN with D38999 connector
  • X2 : One VGA with D38999 connector
  • X3 : Two USB 3.0 with D38999 connector
  • X4 : One DC-in with D38999 connector

Environment

  • MIL-STD-461 18V-36V DC Power Module
  • MIL-STD-810, 461 compliant
  • Operates up to extended temp -20°C to +55°C

Specifications

System
Processor Intel® Xeon® D-2183IT, 100W, Skylake 6th Gen, 16C, Freq. 2.2/3.0 GHz, 22MB Smart cache.
Memory type 4 x DIMMs Up to 512GB ECC RDIMM DDR4-2666MHz
Chipset SoC, integrated with CPU
GPU
NVIDIA TESLA T4
Turning Tensor Cores 320
CUDA Cores 2560
Memory 16 GB GDDR6, 300 GB/sec
Graphics Output
1x VGA ASPEED AST2500
Resolution Up to 1920×1200@60Hz 32bpp
Storage
HDD/SSD 1x M.2 2280 M key NVMe socket (PCIe Gen3 x4) for NVMe SSD installation

2 x 2.5″ SSD (Easy Swappable)
Side I/O
X1    ( 2 x 10GbE Ethernet)) 1x Amphenol TV07RW-13-35S (22PIN)
X2(VGA) 1 x Amphenol TV07RW‐13‐98S(10PIN)
X3(USB3.0x2) 1 x Amphenol TV07RW-13-35SB(22PIN)
X4 (DC-IN) 1 x Amphenol TV07RW‐13‐04P (4PIN)
Button 1 x Power Switch with Dedicated LED
SSD Tray 2 x Dual 2.5″ HDD/SSD Easy Swap Tray
Dedicated LED 1 x Red LED(OVHT),1 x Green LEDs(SSD)
Power Requirement
Power Input DC-DC 18 to 36V (300W max) MIL-STD 461
Mechanical and Environment
Dimension (DxWxH) 405 x 316 x 154 mm
Weight 15Kg (33.06lbs)
Chassis Aluminum Alloy, Corrosion Resistant
Finish Anodic aluminum oxide
Cooling Natural Passive Convection/Conduction. No Moving Parts
Ingress Protection IP65
Applications, Operating System
Applications Military Platforms Requiring Compliance to MIL-STD-810 where Harsh Temperature, Shock, Vibration, Altitude, Dust and EMI Conditions.
Operating System Windows 10 64Bit, Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Ubuntu14.04, Fedora 20/23, RedHat Linux EL 7.1/7.2, VMware ESXi 6.0, ESXi 6.5
Environmental
Operating Test MIL-STD-810G Test
Method 502.5, Procedure II ( Operation/Low Temperature )
Method 501.5, Procedure II ( Operation/High Temperature )
Method 507.5, Procedure II ( Temperature & Humidity )
Method 514.6 Vibration Category 24/Non-Operating ( Category 20 & 24, Vibration )
Method 516.6 Shock-Procedure V Non-Operating ( Mechanical Shock )
Method 516.6 Shock-Procedure I Operating ( Mechanical Shock )
Non-Operating Test Method 502.5, Procedure I ( Storage/Low Temperature )
Method 502.5, Procedure II ( Operation/Low Temperature )
Method 501.5, Procedure I ( Storage/High Temperature )
Method 514.6 Vibration Category 24/Non-Operating ( Category 20 & 24, Vibration )
Method 514.6 Vibration Category 20/Operating ( Category 20 & 24, Vibration )
Method 516.6 Shock-Procedure V Non-Operating ( Mechanical Shock )
Method 516.6 Shock-Procedure I Operating ( Mechanical Shock )
Method 509.7  Salt Spray (50±5)g/L
EMC compliance MIL-STD-461

CE102 basic curve, 10kHz – 30 MHz

RE102-4, (1.5 MHz) -30 MHz – 5 GHz

RS103, 1.5MHz to 18GHz, 50V/m equal for all frequencies

EN 61000-4-2: Air discharge: 8 kV, Contact discharge: 6kV

EN 61000-4-4: Signal and DC-Net: 1 kV

EN 61000-4-5: Leads vs. ground potential 1kV, Signal und DC-Net: 0.5

EN 55022, class A

EN 61000-4-3: 10V/
Designed to Meet Items ( Options )
CS101, CS114, CS115, CS116
CE106, RE103, RS101
MIL-STD-1275 (Options)
Steady State: 20V~33V
Surge Low: 18V/500ms
Surge High: 100V/500ms
Operating Temperature -20°C to 55°C
Storage Temperature -40°C to 85°C

Block Diagram

Thermal Solution

Patented Thermal Architecture

7starlake guarantees reliable and supreme solutions for industrial and military applications. All of our selected components are of authentic industrial grade, and have verified their stability and durability through a series of Wide-range Temperature tests.
