AV800-D27

IP65 Military Ice Lake D-2796NT, 20C, 3.1Ghz, 200G Smart NIC MXM-GPU Server

  • Intel® XEON D-2796NT 20 Cores 2.0GHz Max Turbo 3.10GHz
  • 256GB RDIMM ECC DDR4-2933/512G LRDIMM DDR4-2933
  • Nvidia RTX A4500 5888 CUDA cores PCIe Gen 4.0 X 16
  • Nvidia ConnectX-6 100GbE Single-Port QSFP56
  • 2 x 1GBase-T, 2 x 10GBase-T LAN
  • 2 x 2TB 2.5” Swappable SATA Drive with AES function
  • Hardware Secure Erase(AES) button, Swappable CMOS battery
  • IP65 Sealed with External Cooling Blade
  • MIL-STD-810G Thermal, Shock, Vibration, Humidity
  • MIL-STD 18V~36V EMI DC Input
  • Extreme Temperature -20°C to 60°C



 AV800-D27 Datasheet

 AV800-D27 User Manual

 AV800-D27 e-DM



CONTACT US FOR A QUOTE
Category:

Description

AV800-D27 is 7STARLAKE ruggedized AI Inference platform specifically designed for Intel® Xeon® Ice Lake D-2796NT Processor(20 Cores, 2.0GHz Max Turbo 3.10GHz), NVIDIA MXM RTX A4500 and NVIDIA® ConnectX®-6 DX (200Gb/s, signal port)

With built-in acceleration Intel® Deep Learning Boost, AV800-D27 is able to deliver server-class and high-end performance for rugged IoT devices. Combining stunning inference performance and high-bandwidth (200Gb/s) networks, AV800-D27 is the perfect HPC platform for versatile edge AI applications.

Designed with NVIDIA MXM RTX A4500(Ampere Architecture-Based 5888 CUDA cores, 46 RT Cores, and 184 Tensor Cores), AV800-D27 will help achieve powerful performance for data-intensive industries such as medical, defense, and transportation.

What’s more, with NVIDIA® ConnectX®-6 DX, AV800-D27 is capable of providing single port of 200Gb/s Ethernet connectivity and highly secure smart network interface card (SmartNIC), which accelerates performance, security, virtualization, SDN/NFV, big data, machine-learning for data center applications.

Enhanced performance per watt:

Intel® Xeon® processor D-2700 product family delivers exceptional value and unmatched performance density per watt. Its TDP of 100W, industry-leading 10 nm process technology and a compute-only design make it ideal for meeting the diverse needs of customers seeking mid-range low-power, high-density solutions.

II. NVIDIA Quadro RTXA4500 MXM
SR800-D27 supports 1 x NVIDIA Quadro RTXA4500 MXM Module; can power the planets most reliable mainstream workstations. Designed into a 115-watt package, RTXA4500 is powered by NVIDIA Ampere architecture, supplying innovative multi-precision performance to accelerate a vast range of modern applications. SR800-D27 w/ Quadro RTXA4500 GPU accelerates diverse cloud workloads. These include high-performance computing, data analytics, deep learning training and inference, graphics and machine learning. RTXA4500 MXM features multi-precision Turing Tensor Cores. It comes in a very compact MXM form factor, helping SR800-D27 deliver ground-breaking performance at scale.

MIL-STD Environment
Operating Temperature High: 50°C, MIL-STD-810G, Method 501.5, Procedure I
Operating Temp Low: 0°C, MIL-STD-810G, Method 502.5, Procedure I
Non-Operating Temperature High: 70°C, MIL-STD-810G, Method 501.5, Procedure II
Non-Operating Temperature Low: -40°C, MIL-STD-810G, Method 502.5, Procedure II
Operating Altitude: Up to 15,000 ft., MIL-STD-810G, Method 500.5
Non-Operating Altitude: Up to 45,000 ft., MIL-STD-810G, Method 500.5
Humidity: MIL-STD-810G, Method 507.5, Procedure Ib (Natural Cycle B3)
Shock: MIL-STD-810G, Method 516.6, 30 g’s, Saw-tooth, 11ms & MIL-DTL-901E, Grade A, Class II; Type B
Vibration: MIL-STD-167, Type I, Deck Mounted Equipment
EMI/EMC: MIL-STD-461F, RE101, RE102 (Shipboard Level 1), RS103, CE101, CE102, CS101, CS114, CS116
Airborne Noise: MIL-STD-740-1 compliance: 43.7dBA (Idle), 52.5dBA (50%), 54.6dBA (80%).



Specifications

System
Processor Intel® Xeon® ICELAKE-D D-2796NT Processor, 20Cores, 40Threads, Base Frequency 2.0GHz
Memory type 256GB RDIMM ECC DDR4-2933/512G LRDIMM DDR4-2933 in 4 DIMM Slot

GPU
Graphics Card NVidia® RTX A4500 5888 CUDA Cores PCIe Gen4.0 x16

Storage
HDD/SDD 2 x NVMe PCIe GEN 4.0 x 4

Hardware Secure Erase (AES) by option

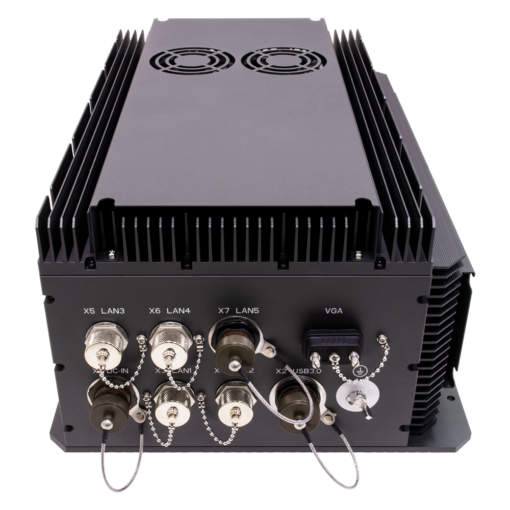

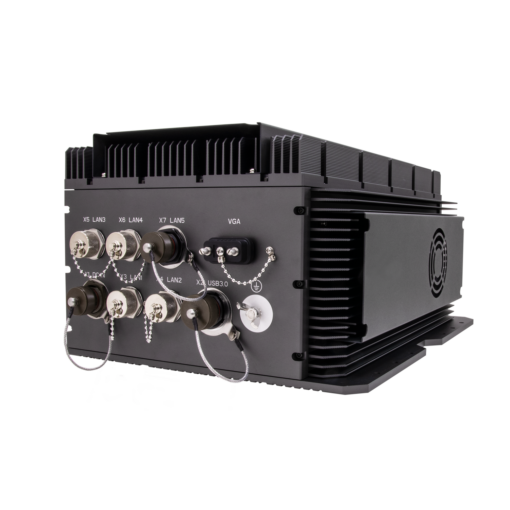

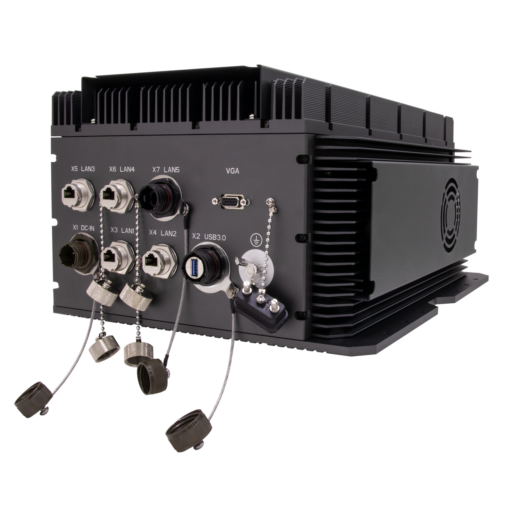

Front I/O
X1 DC In connector
X2 1 x USB3.0 Amphenol USB3FTV7AZNF312 connector
X3 1 x 1GBase-T TV07RW-13-98S connector
X4 1 x 1GBase-T TV07RW-13-98S connector
X5 1 x 10GBase-T M20 RJ45 CAT6A connector
X6 1 x 10GBase-T M20 RJ45 CAT6A connector
X7 1 x 100G Fiber Ethernet Amphenol FSI MPOFTV70ZNN
VGA D-sub 15 connector with waterproof cap

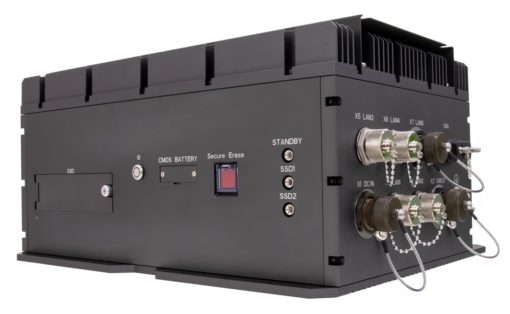

Side I/O
SSD tray 2 x Dual 2.5″ HDD/SSD Easy Swap Tray
Power Button 1 x Power Button with LED backlight

Power Requirement
Power Input MIL-STD-461 EMI power supply, 18V~36V DC-IN (300W)
Applications
Applications Military Platforms Requiring Compliance to MIL-STD-810 Where Harsh Temperature, Shock, Vibration, Altitude, Dust and MIL-461 EMI Conditions.
Operating System
Operating System Windows 10 64Bit, Linux by request.
Physical
Dimension 405mm x 316mm x 195mm (W x L x H)
Weight 10KGS
Chassis Aluminum Alloy, Corrosion Resistant
Finish Anodic aluminum oxide (Color Iron gray)
Cooling Intelligent Active Cooled
Environmental
MIL-STD-810G Test Method 500.5, Procedures I and II (Altitude, Operation):

12,192M, (40,000 ft) for the initial cabin altitude (18.8Kpa or 2.73 Psia)

Method 500.5, Procedures III and IV (Altitude, Non-Operation):

15,240, (50,000 ft) for the initial cabin altitude (14.9Kpa or 2.16 Psia)

Method 501.5, Procedure I (Storage/High Temperature)

Method 501.5, Procedure II (Operation/High Temperature)

Method 502.5, Procedure I (Storage/Low Temperature)

Method 502.5, Procedure II (Operation/Low Temperature)

Method 503.5, Procedure I (Temperature shock)

Method 507.5, Procedure II (Temperature & Humidity)

Method 514.6, Vibration Category 24/Non-Operating (Category 20 & 24,Vibration)

Method 514.6, Vibration Category 20/Operating (Category 20 & 24,Vibration)

Method 516.6, Shock-Procedure V Non-Operating (Mechanical Shock)

Method 516.6, Shock-Procedure I Operating (Mechanical Shock)
Reliability Conduction Cooling.

Designed & Manufactured using ISO 9001 Certified Quality Program.
MIL-STD-461 CE102 basic curve, 10kHz – 30 MHz

RE102-4, (1.5 MHz) -30 MHz – 5 GHz

RS103, 200 MHz – 3.2 GHz, 50 V/m equal for all frequencies

EN 61000-4-2: Air discharge: 8 kV, Contact discharge: 6kV

EN 61000-4-3: 10V/m

EN 61000-4-4: Signal and DC-Net: 1 kV

EN 61000-4-5: Leads vs. ground potential 1kV, Signal und DC-Net: 0.5 kV

CE and FCC
MIL-STD-1275 Steady State – 20V~33V,

Surge Low – 18V/500ms,

Surge High – 100V/500ms

Emitted spikes

Injected Voltage surges

Emitted voltage surges

Voltage ripple (2V)

Voltage spikes

Starting Operation

Reverse polarity
Operating Temp. -20 to +60°C
Storage Temp. -40 to +85°C
Relative Humidity 5% to 95%, non-condensing.

Block Diagram



Dimensions



Ordering Info



AV800-D27-20C
Military MXM-GPU System GPGPU AI Inference Computer with Intel® Xeon® ICELAKE-D D-2796NT Processor, IP65 rating, MIL-STD D38999 Connectors, 18V~36V DC-in, Extreme Rugged operating temperature -20~+60 °C

AV800-D27-16C
Military MXM-GPU System GPGPU AI Inference Computer with Intel® Xeon® ICELAKE-D D-2775TE Processor, IP65 rating, MIL-STD D38999 Connectors, 18V~36V DC-in, Extreme Rugged operating temperature -20~+60 °C



Downloads



 7StarLake_System Test Report_AV800-D27_20230414
