System
|
| Processor |
Intel® Xeon® Processor D-2183IT (Frequency 2.0GHz, Turbo Boost Frequency up to 3.0GHz), 16 Core, 32 Thread Support, 22MB Smart Cache |
| Memory type |
4 x Up to 512GB LRDIMM/256GB RDIMM, 4CH DDR4 3200MHz |
| Chipset |
SoC, integrated with CPU |
|
GPU
|
| NVIDIA |
NVIDIA A2000 MXM GPU |
| TFLOPS |
8.25 |
| CUDA Cores |
2560 |
| Memory |
4 GB GOOR6, 192 GB/sec ( Optional for 8GB ) |
| Graphics Output |
| 1 x VGA |
Aspeed AST2500 |
| Resolution |
Up to 1920×1200@60Hz 32bpp |
|
Storage
|
| HDD/SDD |
2 x 2.5″ 2TB MLC SSD (Easy Swappable) |
|

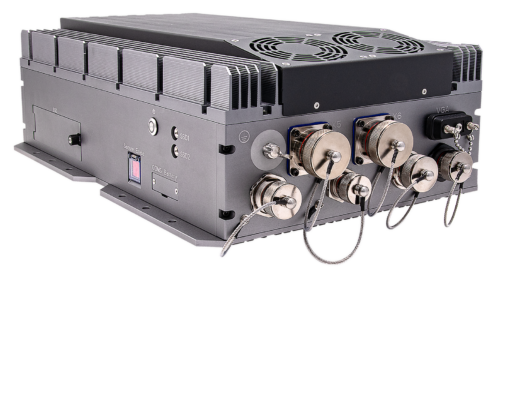

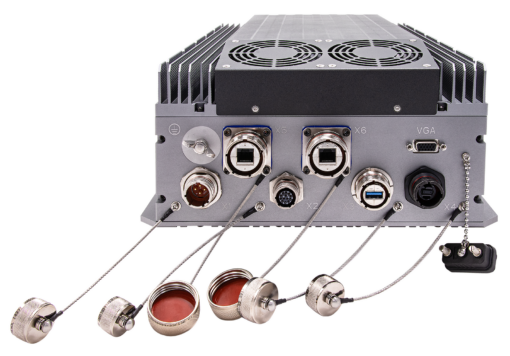

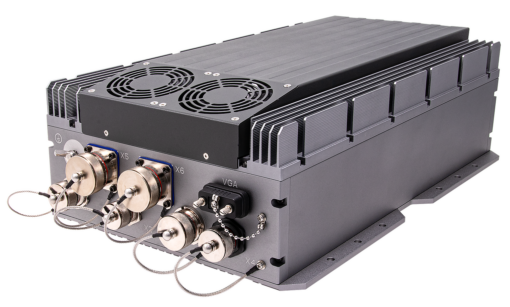

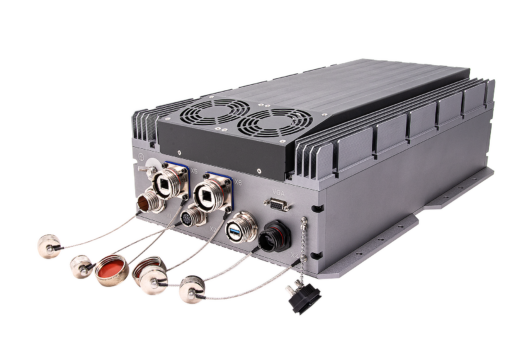

Front and Side I/O
|
| X1(DC-IN) |
1 x Amphenol TV07RW-13-04P (4PIN) |
| X2(USB2.0x2) |
1 x Amphenol TV07RF11-35S |
| X3(USB3.0) |
1 x Amphenol USB3FTV7AZNF312 |
| X4(2x10G SFP+) |
1 x Amphenol FSI MPOFTV70ZNN |
| X5(1G RJ45) |
1 x Amphenol RJFTV62A1N |
| X6(1G RJ45) |
1 x Amphenol RJFTV62A1N |
| VGA |
D-sub15 connector with waterproof cap |
| SSD Tray |
2 x Dual 2.5″ HDD/SSD Easy Swap Tray Dedicated LED |
| Dedicated LED |
2 x Red/Green LEDs ( SSD) |
| Secure Erase Button |
1 x AES hardware erase button |
|
Power Requirement
|
| Power Input |
DC-DC 18 to 36V (300W max) MIL-STD 461 |
| Applications, Operating System |
| Applications |
C4ISR, Commercial and Military Platforms Requiring Compliance to MIL-STD-810 Process Control, where Harsh Temperature, Shock, Vibration, Altitude, Dust and EMI Conditions |
| Operating System |
Windows 10 64Bit, Windows Server 2019 64bit, Windows 2016 64bit, Hyper-V Server 2016 R2, Ubuntu16.04.3 LTS/17.10/18.04.1LTS, Fedora 25/26, RedHat Linux EL 6.8/6.9/7.3/7.4/7.6, VMware ESXi 6.5u1 ,Vmware ESXi 6.7U2 |
| Physical |
| Dimension |
432 x 138 x 281 mm (WxDxH) |
| Weight |
15Kg (33.06Ibs) |

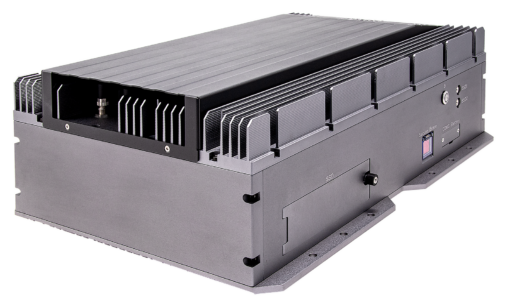

| Chassis |
Aluminum Alloy, Corrosion Resistant |
| Finish |
Anodic aluminum oxide |
| Cooling |
Natural Passive Convection/Conduction Cooling. No Moving Parts Ingress Protection |
| Ingress Protechtion |
IP65 |
| Environmental |
| Operating Test MIL-STD-810 |
|
| Low air pressure |
Method 500.5 |
Operation/Air Carriage 4572m(15.000 ft) |
| Procedure 2 |
| Low Temperature |
Method 502.5 |
-20°C, 4 hours, ±3°C |
| Procedure 2 |
| High Temperature |
Method 501.5 |
+55°C, 4 hours, ±3°C |
| Procedure 2 |
| Humidity |
Method 507.5 |
85%-95% RH without condensation, 24 hours/ cycle, conduct 10 cycle |
| Vibration |
Method 514.6 |
5-500Hz, Vertical 7.7Grms, 40mins x 3axis |
| Category 24 |
| Shock |
Method 516.6 |
20 Grms, 11ms, 3 axes |
| Non-Operating Test MIL-STD-810 |
| Low Temperature |
Method 502.5 |
-33°C, 4 hours, change rate:≦20°C/ Hour
-15°C, 72hours (By request) |
| High Temperature |
Method 501.5 |
+71°C, 4 hours, change rate:≦20°C/ Hour |
| Procedure 1 |
+68°C, 240 hours (By request) |
| Vibration |
Method 514.6 |
5-500Hz, Vertical 7.7Grms, 40mins x 3axis |
| Shock |
Method 516.6 |
20 Grms, 11ms, 3 axes |
| Salt Fog |
Method 509.7 |
Salt Spray (50±5)g/L |
| MIL-STD-461 |
| Conducted Emissions |
CE102 basic curve |
10kHz – 30MHz |
| Power Leads |
| Conducted Emissions |
RE102-4 |
1.5HMz-30MHz-5GHz |
| Electric Field |
| Radiated Susceptibility |
RS103 |
1.5 MHz – 3GHz, 50 V/m equal for all frequencies |
| 2MHz – 80MHz, 50 V/m equal for all frequencies |
| Electric Field |
80MHz – 3GHz, 50 V/m equal for all frequencies |
| 3GHz – 5GHz, 50 V/m equal for all frequencies |
| Electrostatic Discharge |
EN 61000-4-2 |
Air DISCHARGE: 8 Kv, Contact discharge : 6kV |
| Electromagnetic compatibility |
EN 61000-4-4 |
Signal and DC Net: 1 kV |
| Electromagnetic compatibility |
EN 61000-4-5 |
Lead vs. ground potential 1Kv, ignal und DC Net: 1 kV |
| Radio disturbance |
EN55022 |
Class A |
| Electromagnetic compatibility |
EN61000-4-3 |
10V/m |
| Electromagnetic compatibility |
EN61000-4-5 |
Lead vs. ground potential 1Kv, ignal und DC Net: 0.5 kV |
| MIL-STD-1275 Specifications |
| Steady State |
20V~33V |
| Steady Low |
20V~33V |
| Steady High |
18V/500ms |
