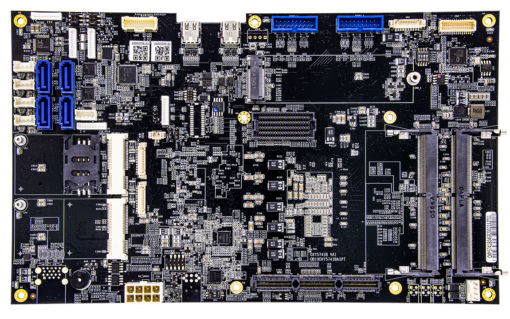

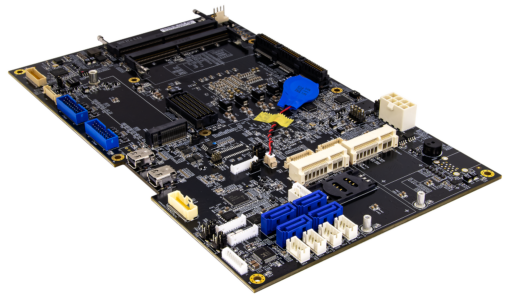

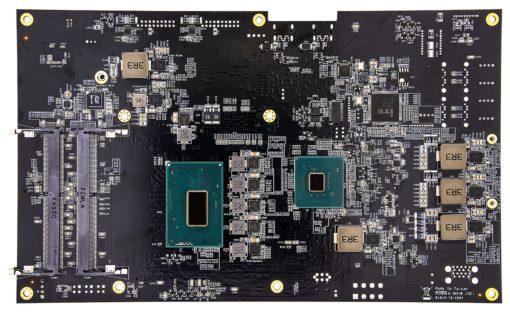

| System |
| CPU |
Intel® Core™ i7-9850HE Processor
(6 Cores/12 Threads, 9M Cache, up to 4.40 GHz), 45W
Intel® Core i7-9850HL Processor
(6 Cores/12 Threads, 9M Cache, up to 4.10 GHz), 25W
XEON E-2276ME Processor
(6 Cores/12 Threads, 12M Cache, up to 4.50 GHz), 45W
XEON E-2276ML Processor
(6 Cores/12 Threads, 12M Cache, up to 4.20 GHz), 25W
Intel® Core™ i5-8400H Processor
(6 Cores/12 Threads, 8M Cache, up to 4.20 GHz) TDP: 45W |
| Memory type |
4x DDR4 2666MHz 260 Pin SO-DIMM
(up to 128GB, Xeon® Sku Support ECC) |
| Chipset |
CM246 |
| BIOS Core |
AMI® UEFI BIOS |
| BIOS Flash |
SPI Flash |
| Super I/O |
ITE 8786 |
| TPM |
TPM 2.0 (SLB9665) |
| iAMT |
iAMT 12.0 |
| Watchdog |
1-255 sec. or 1-255 min. software programmable and can be generate system reset |
| Display |
| Display Port |
Resolution up to 4096 x 2304 @ 60Hz |
| Chipset |
Intel® UHD Graphics 630 |
| Multi-Display |
Triple simultaneous display with LVDS + 2x Mini-DP |
| LVDS |
1* Dual Channel 24-bit LVDS, max resolution up to 1920 x 1080 @60Hz (w/auto-dimming support) |
| Audio |
|
| Codec |
ALC888S |
| Expansion Slot |
| M.2 |
1x M.2 (M-key, type:2280, SATA/PCIe 3.0 x4 NVMe) |
| miniPCIe |
2x Full size (USB/PCIe and 1x Micro SIM Card) |
| PCIe/104 |
TYPE 2 |
| FPE |
1x FPE slot. |
| Ethernet |
| Chipset |
Intel® I210 & I219LM GbE LAN (10/100/1000 Mbps supported ) |
| WOL |
Yes |
| Boot from LAN |
Yes for PXE |
| Rear I/O |
|
| Display Port |
2*mini-DIP Display Port Female 20P 90D |
| Internal I/O header (No Edge I/O Needed) |
| SATA |
4x SATAIII (RAID 0,1,5) , from 2 up to 4 ports |
| SATA power |
4x |
| LVDS connector |
1x (30 pins) or equal —> W/Auto-dimming supports), Bright light control |
| LVDS Inverter |
1x (10 pins) box header |
| 8 bit GPIO |
1x (4in/4out) in a (10 pins) box header |
| Serial |
2x RS232/422/485 (2x 10 pins) box header |
| SIM card holder |
1x (Micro SIM) in mini-PCIe slot |
| LAN |
2x 10/100/1000 Base (20 x 1.0 wire to Board connector) |
| USB 3.0 |
4x USB3.0 (2x 20GU 2.0 x 2.0mm box header) |
| USB2.0 |
4x USB2.0(2×5 Pins) box header |
| LPC |
1x LPC (10 pins ) box header |
| Front Panel |
1 (2x 5 pins) Power BTN/HDD LED/Reset BTN/PWR LED/Buzzer |
| Smart Fan |
1x CPU Fan —>1x 4 pins for CPU(PWM mode) |
| Audio |
1x MIC-IN / LINE OUT (10 pins) box header |
| Battery |
1x RTC battery holder |
| Power DC-IN |
1x (4 x 2pin) horizontal type |
| Mechanical and Environmental |
| Form Factor |
EBX |
| Dimension |
146 mmX 243mm |
| Power Type |
12V DC-IN |
| Power Consumption |
180W |
| Operation Temperature |
-40℃ ~ 85℃(ambient with air flow) |
| Storage Temperature |
-40℃ ~ 85℃ |
| Relative humidity |
10% to 90%, non-condensing |
| Standard Compliance |
| Standard Compliance |
CE/FCC |
| OS |
| OS Support |
Windows® 10 64-bit
Linux (Support by request) |
| Modular Architecture |
| PCIe/104 |
PCIe/104 (PCI2v3.0, Type2)bus-2x Gen3.0 x4 lanes plus 4x Gen3.0 x 1 lanes
Supports integration with stackable PCIe/104 and /or PCI/104-Express I/O cards
PCI-PCIe bridge adapter required to support PCI-104 and/or PC/104-Plus I/O cards. |
| FPE |
FPE B2B connector to support PCIe Gen3.0 x16 lanes
Use this feature configures the PCI-E port Bifuraction setting for a PCI-E port Specified by user. The options are x8x4x4, x8x8 and x16(SK229) 3 cards slots available for PCIe/104 or PCIe adapter cards example:
1. FPE/PCIe 104 to 4 mini-SAS connectors (SK229)
2. Mini-SAS PCIe x16 slot(x8 signal_SK228)
3. Mini-SAS to PCIe x16 slot (x16 signal_SK226/SK230)
4. Mini-SAS to MXM adapter board(SK224) |
| Mini PCI/e |
2x Full size mini PCIe slot
1x slot dedicated for Mini-PCIe card I/O module (i.e. MIL-STD-1553, ARINC 429, serial, Ethernet, GPS, etc.) |
| M.2 |
M.2 2280 slot to support PCIe Gen3.0 x4 or NVMe SSD storage device by jumper setting. |
| Expansion I/O Support |
5 to 6 card slot to support available for PCIe/104 or PCI/104 -Express cards example:
1. HD-SDI/PAL/NTSCH.264 frame grabber (mPCIe by SK401)
2. H.264 video recorder/network streaming card (mPCIe SK401)
3. MIL-STD-1553/ARINC429 (mPCIe by SK401)
4. CAN data-bus module (mPCIe by SK401)
5. Ethernet NIC/10GbE LAN switch (SK506, SK502) |
| Data Storage |
4x SATA controllers for SATA III and 1x NVMe SSD can support Data Storage function.
(1) SATA LAN 0 / (2) SATA LAN 1 (3) SATA LAN 2
(4) SATA LAN 3 / (5) M.2 2280 NVMe SSD |
