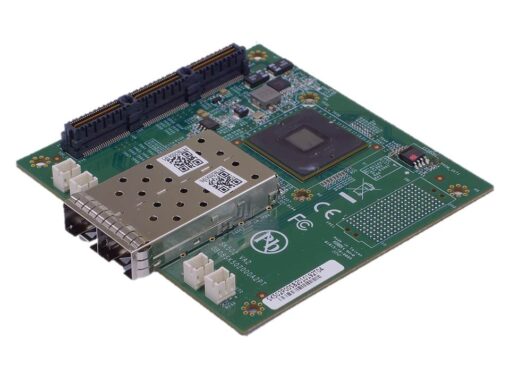

SK502_2x10GbE Module

Dual Port Fiber 10GbE Ethernet PCIe/104 Module 10SFP+

  • Intel® X710-BM2 Controller
  • 2 10GbE/1GbE SFP+ ports
  • PCIe Gen.3 x4 host interface
  • Rugged Stackable PCIe/104 form factors
  • Supports 10GBASE-SR / 10GBASE-LR / 10GBASE-DAC / 10GBASE –GBIC module
  • Supports SR-IOV based virtualization


 Datasheet SK502





PCIe/104 Dual 10GbE board is a dual-port 10 Gigabit Ethernet controller for PCIe/104 platforms. Powered by Intel’s X710 Ethernet Controller, the PCIe/104 Dual 10GbE provides support for network and server virtualization as well as LAN and SAN flexibility while maintaining reliable performance. This product is ideal for adding high-speed 10GbE connectivity to embedded systems.

SK502 based on PCIe/104 rugged modular stackable architecture, which can easily connect with other PCIe/104 carrier boards.

For example, the first layer is the EBX SBC – OXY5741A, featuring Intel’s Xeon E-2276ME and ruggedised open-standard EBX architecture. The second layer is the MXM carrier with RTX2060S, delivering outstanding performance.  On the top is the SK502, which provide high speed 10GbE connectivity to embedded systems.


Chipset Intel® X710-BM2 2 Dual 10 Gigabit Ethernet Controller
Disable LAN through BIOS Yes
Boot from LAN Yes for PXE
Memory 32Mb serial flash for firmware and configuration
Power PCIe/104 bus
Internal I/O
StackPC PCIe/104 (Type-2) x 4 Bus
FPE N/A (Option)
LAN 2 x SPF+ pluggable interface Ports
LED (Link/Act) 2
LED Indicators LINK(Solid) and Activity (Blanking), LED color (Green : 10Gbps), (Yellow: 1Gbps)
LAN signal Up to 10 Gb/s 1Gb/s Data Throughput
Mechanical and Environmental
Form Factor StackPC- PCIe/104
Operating Temperature 0°C ~ +55°C
Storage Temperature -40°C ~ 85°C
Relative humidity 10% to 90%, non-condensing
