ROC286B

1U Rugged Fanless System with Intel® Coffee Lake-Refresh 8th/9th Processor(Up to 65W), 2x Display Port, 1x HDMI, 1x PCIe x16, 6x USB,100V~240V AC-IN ,Extended Temp. -30°C to 70°C

  • Intel® Coffee Lake-Refresh 8th/9th Processor(Up to 65W)
  • Intel® Q370 Chipset
  • 2x SO-DIMM DDR4 2400/2666 MHz up to 64GB

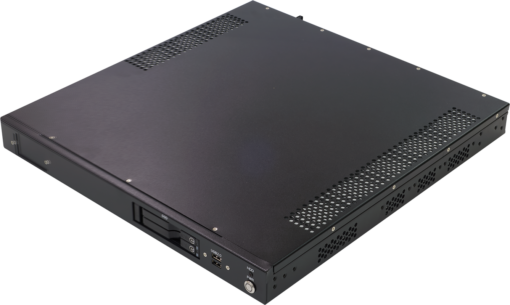

  • Front IO: 2x 2.5”SATA HDD/SSD easy swap tray, 2x USB2.0

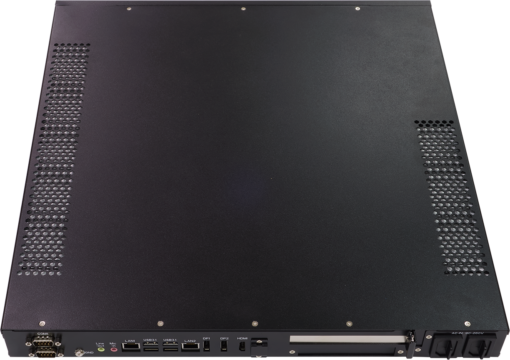

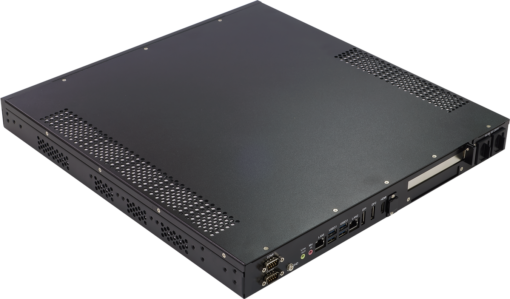

  • Back IO: 2x COM, 4x USB3.1, 2x DP, 2x LAN, 1x Line-out/Mic
  • Wide range 100V~240V AC-IN
  • Extended Operating Temperature -30°C to 70°C



 ROC286B Datasheet

 ROC286B User Manual



CONTACT US FOR A QUOTE

Description

ROC286B is an industrial 19” 1U Rack-mount rugged fanless server. Based on Intel® Coffeelake 14nm Core™ Q370 Chipset, ROC286B can be processed by 8th/9th Processor(up to 65W). It supports up to 64GB of memory capacity, 1 x PCIe x16 Slot 1 x M.2(Key M, PCIe x4 and SATA3) Expansion Slot,4 x USB3.1, 3 x DisplayPort, 2 x LAN, 1 x Line-out/Mic,2 x 2.5” SATA HDD/ SSD Easy Swap Tray.

With further advantages, for example, HDD/ SSD easy swap tray and multi-expansion slot, we believe that ROC286B is a best choice for those, who are looking for an ideal server to meet the requirements of commercial and industrial platforms, process control, intelligent automation and manufacturing applications.





Specifications

System

High Performance Processor Socket LGA 1151 for Intel® Core i7/i5/i3/Celeron® (Supports up to 65W) Intel® 8th/9th Processor
Memory type 2x DDR4 2400/2666 MHz SO-DIMM up to 64GB
Chipset Intel® Q370 Chipset
Expansion Slot 1x PCIex16

1x M.2 (Key M, 2242/2280) with PCIe and SATA Signal

Storage

HDD/SDD 2x 2.5” SATA HDD/SSD easy swap tray

Ethernet

Ethernet Intel® I210 & I219LM GbE LAN (support 10/100/1000 Mbps for x2 RJ45 ports)

Rear I/O

Display Port 2x
HDMI 1x
Ethernet 2x RJ45 Intel® I210 & I219LM GbE LAN (support 10/100/1000 Mbps)
Audio 2x 3.5mm Audio Jacks (1x MIC, 1x Line-Out)
COM 2x RS232/422/485 (422 / 485 select by BIOS)
USB Port 4x USB 3.1(10Gb/s)
AC-IN 1x AC-IN, 90V~260V

Front I/O

Button 1x Power Button w/Indicator LED
Indicator LED 1x HDD
USB Port 2x USB 2.0
Easy Swap SSD Tray 2x

Applications, Operating System

Applications Commercial and Industrial Platforms, Embedded Computing, Process Control,

Intelligent Automation and manufacturing applications

Operating System Windows 10 64Bit

Ubuntu13.04, Ubuntu13.10, Ubuntu14.04, Fedora 20

Physical

Dimension (W x D x H) 430 x450 x 44 mm
Weight 8.5Kg
Chassis SECC
Heatsink Aluminum Alloy, Corrosion Resistant
Finish Anodic aluminum oxide

Environmental

MIL-STD-810 Test Method 507.5, Procedure II (Temperature & Humidity)

Method 501.5, Procedure I (Storage/High Temperature)

Method 501.5, Procedure II (Operation/High Temperature)

Method 502.5, Procedure I (Storage/Low Temperature)

Method 502.5, Procedure II (Operation/Low Temperature)

Method 503.5, Procedure I (Temperature shock)

Green Product RoHS compliance
Operating Temperature w/o Graphic Card (ET: -20 to 60°C; UT: -30 to 70°C) ; w/Graphic Card (0 to 50°C)
Storage Temperature -40 to 85°C
Relative Humidity 5% to 95%, non-condensing
EMC CE and FCC compliance

Thermal Solution

With combination of high CPU computing power and graphic GPU performance generate numerous heat, 7STARLAKE emphasizes on providing exceeding thermal design guarantee system offers superior performance under critical environment. Based on our experience, ROC286 adopts dual side thermal solution, with copper heat spreader directly touches the heat source components processor and graphic GPU to absorb the heat rapidly, the heat then transfer to heat pipe; heat pipe is two-phase heat transfer involves the liquid-vapor phase change of a working fluid which can provide high efficiency heat transmission, the aluminum heat sink dissipates the heat into surrounding air promptly. Both side thermal solution is mainly for processor. With unique thermal design, 7STARLAKE is capable to integrate high power consumption CPU into 1U such slim size fanless system.
