SK708

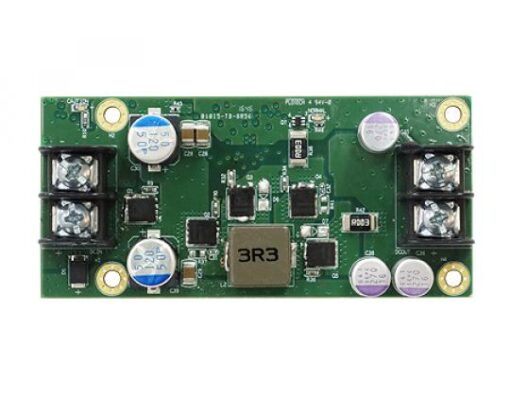

150W DC/DC Converter Module with 9V to 36V Input/ 12V Output, Extended Temp. -40 to 85°C

  • Wide Input Range: 9V to 36V
  • 12V DC Output up to 12 Amp
  • Over voltage protection
  • Over current protection
  • Surge protection
  • Compact size
  • Efficiency: typ.(86%~90%)
  • Extended Temperature -40°C to 85°C (9V workable with derating 130W)



  SK708 Datasheet

CONTACT US FOR A QUOTE



Description

SK708 is a wide input board type converter and supports input range from 9V to 36V. SK708 stands out with its full power of 150W for 12V-36V even under extended temperatures from -40°C to 85°C; while with 9V input, SK708 can still reach 130W (derating).

Possessing extraordinary performance for a minimum 91% efficiency, SK708 holds the remarkable capability for a fanless system but is also suitable for various applications. Moreover, equipped with ring terminals, SK708 is designed for easy system installation.

Specifications

Input Voltage
9V to 36V
Output
150W, 12V @ 12 A
Performance Characteristic
Ripple: <300m
Line Regulation: <100 mV
Load Regulation: <100 mV
Efficiency: Min. 91%
Operation Temperature
-40°C to 85ºC
Dimension
90(L) x 42(W) mm
