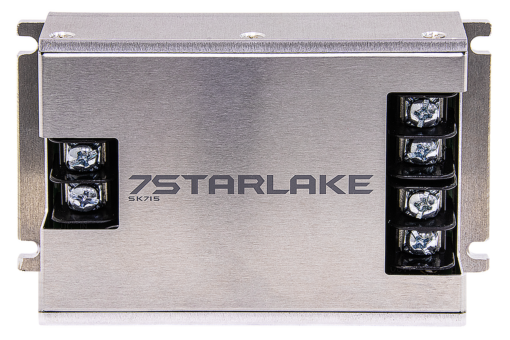

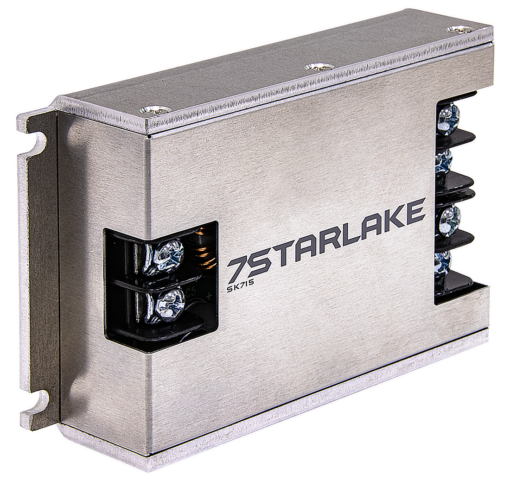

SK715



400W DC/DC Converter Module with 9V to 36V Input/ 12V Output, Extended Temp. -40 to 85°C

  • Wide Input Range: 9V to 36V
  • 12V DC Output up to 33 Amp
  • Over-voltage protection
  • Over current protection
  • Efficiency: typ.(91%)
  • Extended Temperature -40°C to 85°C



  SK715 Datasheet

CONTACT US FOR A QUOTE



Description

SK715 is a wide input board type converter and supports input range from 9V to 36V. SK715 stands out with its full power of 400W for 9V-36V even under extended temperature from -40°C to 85°C. Possessing extraordinary performance for minimum 91% efficiency, SK715 holds the remarkable capability for a fanless system but is also suitable for various applications. Moreover, equipped with ring terminals, SK715 is designed for easy system installation.

Specifications

Input Voltage
9V to 36V (2P Terminal block)
Output
400W, 12V(2 x 2P Terminal block)
Power Efficiency
91%
Ripple and Noise
100mVp-p
Reverse Voltage Protect
Yes
Operation Temperature
-40°C to 85°C
Storage Temperature
-40°C to 85°C
Dimension
Dimension 90(L) x 60(W) mm
Over-Voltage Protection
Yes
Over-Current Protection
Yes
Reverse Polarity
Yes
Over-Temperature shutdown
Yes
Setup, Rise Time
500ms, 60ms
Power On LED
Yes
