  • 1U/half Size Rugged Military Server
  • Intel® Coffee Lake Xeon® E-2276ML
  • DDR4 Up to 128GB, NVMe Up to 2TB
  • Military D38999 Connectors Support : 2x DVI, 2x LAN, 2x USB 3.0
  • Design for Naval Defense System, withstand 75G rms Shock
  • 18V~36V DC-in, MIL-STD-461 EMI Filter
  • Extended Temperature:-40°C to+70°C


 THOR100-X4-D7E Datasheet

 THOR100-X4-D7E User Manual




The nature of the military operation and existence is changing due to technology. The performance, reliability, and stability of the application become important, and so is the durability of the application to the operating temperatures, shock, and vibration requirements of challenging environments.

THOR100-X4-D7E – 1U Half Size Rugged Mission MIL-STD 810 Computer is built to meet strict size, weight, and power (SWaP) requirements and to withstand harsh environments, including temperature extremes, shock/vibe, sand/dust, and salt/fog. The THOR100-X4-D7E equipped Ultra-High Performance Intel® Xeon® E-2276ML is fully qualified IP65 with D38999 connectors which can offer the most powerful performance and ready to handle harsh environments in battle-field, such as sustain 75 g shock in the maritime applications.

In order to satisfy the requirement of Naval System Application and reducing the SWaP, THOR100-X4-D7E is driven by powerful processor, and equipped with high speed serial interconnects 2x LAN, 1x DC, , 2x DVI, and 2x USB3.0. It also withstand extended temperature -40°C to +70°C and wide voltage input MIL-STD 461 18V~36V, to make it an ideal solution for Military type rugged applications.


Computing Features
– Xeon E-2276ML (up to 4.20 GHz), 25W
– 4 x 260 Pin DDR4 SO-DIMM (up to 128GB)
– 1 x M.2 2280 M-key (SATA/PCIe 3.0×4 NVMe)

I/O and Expansion Options
– X1 : One 9V~36V DC-in with D38999 connector
– X2 : One LAN with D38999 connector
– X3 : One LAN with D38999 connector
– X4 : One DVI with D38999 connector
– X5 : One DVI with D38999 connector
– X6 : One USB 3.0 with D38999 connector
– X7 : One USB 3.0 with D38999 connector

-MIL-STD-461 wide range 9-36V DC power module with EMI Filter
-MIL-STD-810, 461 compliant
Operates up to extended temp -40°C to +70°C

Robust Product Design Ready For Military Application

Design for Naval Defense System; Withstand MIL-STD-810 Shock Up to 75G rms
In Naval Defense System, the application must be withstand detonating explosives in water and assessing the resulting high-impact mechanical shock. MIL-STD-810 standard is considered the upmost principle of the environmental design. With using the shock tester, it can analyze the product ability to tolerate the strong external stress and the degradation of structural weaknesses to quickly obtain the data of structure strength, anti-shock appearance and anti-drop. The shock tester is using the sawtooth wave to evaluate the product reliability and monitor the consistency of production. To assure the application is supporting a mission-critical hardware, THOR100-X4-D7E are designed to meet with the strict standards of MIL-STD 810 shock up to 75G rms.

MIL-STD-461 EMI Filter, Wide Voltage Power Input 18V~36V
To withstand under any kinds of application challenges, system with wide range designed is brings maximum reliability and stability. THOR100-X4-D7E is designed with MIL-STD-461 EMI, protecting against voltage surges, spikes and transients, and even electromagnetic interference. Wide voltage power input design (18~36V) can protect the system from damages caused by sudden surge of voltage, especially in Navy application, thus further secure the reliability of its critical components and the system itself.


Processor Intel® 9th Gen. Xeon® E-2276ML (12M Cache, up to 2.0/4.2 GHz)
Memory type 4 x DDR4 2666MHz up to 128GB
Chipset CM246
Processor Graphics Intel® UHD Graphics P630
Storage(1) NVMe M.2 up to 2TB
Interface Card
Digital Input/Output 8 bit digital I/O , split into 2 groups of 4 , Programmable I/O,
Front I/O

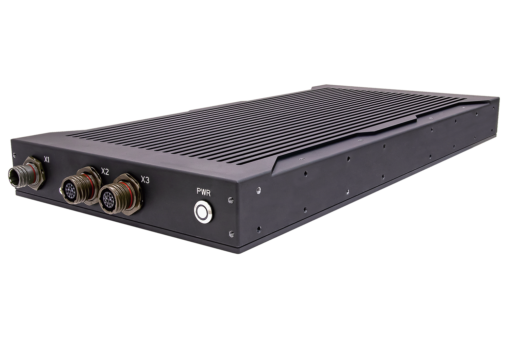

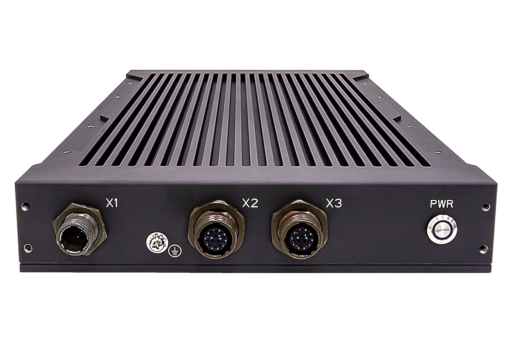

X1 1x DC   (Amphenol TV07RW09-98P)
X2    1x LAN  (Amphenol TV07RW-9-09S)
X3 1x LAN  (Amphenol TV07RW-9-09S)
Power Button with LED backlight
Rear I/O

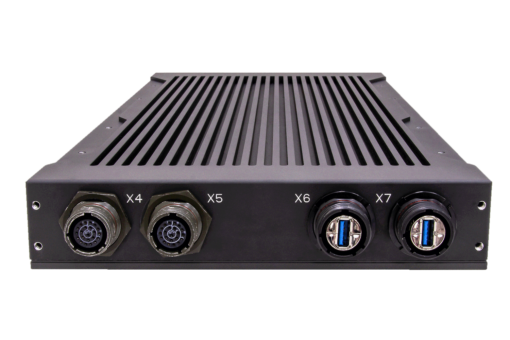

X4 1x DVI  (Amphenol TV07RW-13-35S)
X5 1x DVI  (Amphenol TV07RW-13-35S)
X6 1x USB 3.0  (Amphenol USB3FTV7AZNF312)
X7 1x USB 3.0  (Amphenol USB3FTV7AZNF312)
Power Requirement
Power Input MIL-STD 461 18V~36V
Mechanical and Environment
Dimension (W x D x H) 220 x 400 x 44 mm
Chassis Aluminum Alloy, Corrosion Resistant
Finish Anodic aluminum oxide (Color Iron gray)
Cooling Natural Passive Convection/Conduction. No Moving Parts
Ingress Protection IP65
MIL-STD-810 Testing Methods (Operating)
Method 502.5  Procedure 2 Low Temperature -40°C, 4 hours, ±3°C
Method 501.5  Procedure 2 High Temperature +70°C, 4 hours, ±3°C
Method 507.5 Humidity 85%-95% RH without condensation, 24 hours/ cycle, conduct 10 cycles.
Method 514.6 Vibration 5-500 Hz 5.0 g rms, 30 mins by Z axis.
5-500 Hz 7.0 g rms, 30 mins by X/Y axis
Method 516.6 Shock 50 g , 11ms.
MIL-STD-810 Testing Methods (None-Operating)
Method 502.5 Low Temperature (Storage) -40°C, 4 hours, change rate:20°C/ Hour
Method 501.5 High Temperature (Storage) +85°C, 4 hours, change rate:20°C/ Hour
Method 514.6 Vibration 5-500 Hz 7.0 g rms, 30 mins by Z axis.

5-500 Hz 10.0 g rms, 30 mins by X/Y axis

Method 516.6 Shock 75 g, 6ms.
MIL-STD-461 Testing Methods (EMC)
CE102 basic curve Power Leads 10kHz – 30 MHz
RE102 Electric Field (1.5 MHz) – 30 MHz – 5 GHz
RS103 Electric Field 1.5 MHz – 5 GHz, 50 V/m equal for all frequencies
Radiated Susceptibility 2 MHz – 80 Mhz  50V/m  equal for all frequencies
80 MHz – 3 GHz  50V/m  equal for all frequencies
3 GHz – 5 GHz,  50V/m  equal for all frequencies
EN61000-4-2 Electromagnetic Compatibility Air discharge: 8 kV, Contact discharge: 6kV
EN 61000-4-3 Electromagnetic Compatibility 10 V/m
EN 61000-4-4 Electromagnetic Compatibility Signal and DC-Net: 1 kV
EN 61000-4-5 Electromagnetic Compatibility Leads vs. ground potential 1kV, Signal und DC-Net: 0.5 kV
EN55022 Radio Disturbance Class A
* Option Test item: CS101/CS114/CS115/CS116/RS101/RS103/RE103/CE106
MIL-STD-1275 Testing Methods
Steady State 20V~33V
Surge Low 18V/500 ms
Surge High 100V/500 ms
Reliability No Moving Parts; Passive Cooling.

Designed & Manufactured using ISO 9001/2005 Certified Quality Program.

Operating Temp. -40 to +70°C (ambient with air flow)
Storage Temp. -40 to +85°C
Relative Humidity 5% to 95%, non-condensing.
