THOR200-D15EG

2U1/2 Military GPU Server

  • MIL-STD810 Thermal, shock, vibration,
  • Humidity / EMI / EMC conditions
  • Intel® XEON D-1577 Processors ( 16 cores)
  • NVidia RTX A2000 (3328 CUDA)
  • Up to 96GB DDR4 SO-DIMM
  • 2x Swappable SSD Tray
  • Compliant with MIL-STD-810
  • 18V~36V MIL-STD-461/MIL-STD-1275
  • IP65 Chassis with D389999
  • Extreme Temperature : -40°C to 60°C



 THOR200-D15EG Datasheet

 THOR200-D15EG User Manual



CONTACT US FOR A QUOTE
Category:

Description

THOR200-D15EG is driven by Intel 11th Gen. Tiger Lake-H processor. Tiger Lake processor supports outstanding CPU and graphics performance with up to 8 cores and 16 threads. THOR200 highlight on its rugged design and high functionality, the system especially installed MIL-STD D38999 connector and full IP65 protection allow system withstand in any kind of harsh environment. THOR200-D15EG supports extended temperature from -40°C to 60°C and wide range 18V~36V DC input can protect system from damages caused by sudden surge of voltage, thus further secure the reliability of its critical components and the system itself.

Specifications

System
Processor Intel® XEON™ D-1577, 1.3(2.1) GHz, 24MB, 45W, 16C/32T
Memory type 96GB DDR4 SO-DIMM
Chipset Intel® QM580E
Graphic Embedded NVIDIA® RTX™ A2000

– Ampere Architecture

– 2560 CUDA® cores, 20 RT Cores, and 80 Tensor Cores

– 4GB GDDR6 memory, 128-bit
TPM Chipset: Infineon, Type:TPM 2.0
BIOS AMI UEFI BIOS
USB 4x USB 3.0, 2x USB 2.0
Ethernet  2x 10/100/1000 Ethernet Ports

(1X LAN form mini-PCIE LAN module card)
Power Type 18V – 36V DC IN

MIL-STD 461 EMI DC Module
Storage 2x 2.5” SATA SSD (2x Swappable SSD Tray)
COM Port 2x RS232/422/485 (function select by jumper)
Operating Temperature -40 to 60°C
Dimension 220mm(W) x 350mm(L) x 88mm(H)

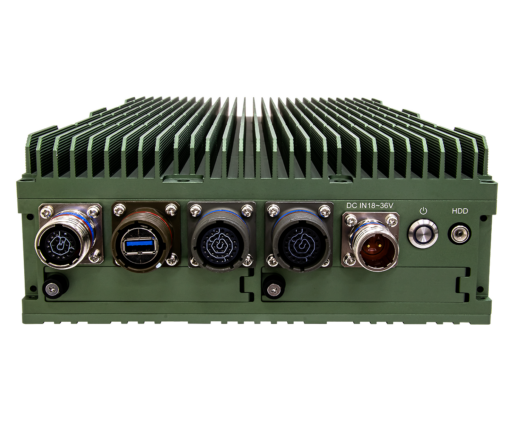

Front I/O
X1 4x USB 2.0 with D38999 connector
X2 1x USB 3.0 with D38999 connector
X3 2x LAN 2x RS232 with D38999 connector
X4 1x VGA, 1x DVI with D38999 connector
X5 1x DC-in with D38999 connector
Environmental
Standard MIL-STD-810

MIL-STD-461/ MIL-STD-1275 18V~36V DC-Input

Ordering Info





Downloads



 7StarLake_System Test Report_THOR200-D15_20230327_0
