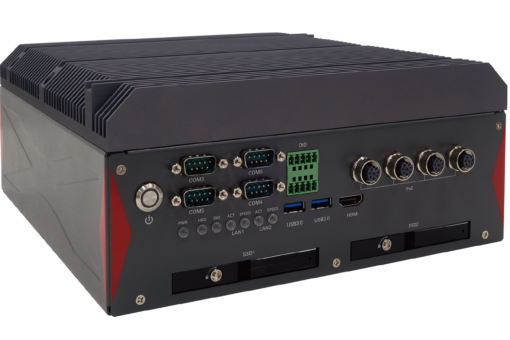

8th, 9th Gen Intel® Xeon®-E3/Core™-S Fanless Computer, Core i7-9700TE Processor, HDMI/DVI-I/DP, 2x 2.5” SSD Tray, 2x COM, 8x USB, 2x LAN, 9V~48V DC-IN, Extended Temp.

  • Intel® Core™ i7-9700TE Processor (up to 3.8 GHz, 8 cores)
  • DDR4, Up to 64GB -2666 SDRAM
  • 2x 2.5” SSD up to 4TB
  • Multi Display : HDMI/DVI-I/DP
  • Options for 8 x PoE, 8 x CAN Bus
  • Rich I/O : 2x COM, 8x USB, 2x LAN
  • 9V~48V Wide Range DC-in
  • Extended Temperature -20°C to 60°C


 CPT330A Datasheet




CPT330A is a Rugged IoT Edge Computer. Based on Intel® Coffeelake 14nm Core™ Q370 Chipset, CPT330A can be processed by Intel® Coffeelake-Refresh i7-9700TE (8 cores, up to 3.8GHz) processor. Equipped with rich I/O interfaces, CPT330A meets demands of Industrial 4.0, such as high performance data processing configured with different I/O interfaces to cooperate with sensors. For instance, CPT330A can support different expansion modules to meet diverse requirements, such as addtional 4x PoE (RJ45 or M12), 4x RS232/422/485 with isolated DIDO (4x DI, 4x DO), or 4x RJ45 LAN ports. Thus, CPT330A owns incredible scalability to overcome challenges in V2X era. Supporting 9V~48V wide range DC-in, CPT330A doesn’t dread to possible sudden drop or surge of power. Moreover, designed for the industrial automation market and to withstand 24/7 operation in harsh environments, all electronic components of CPT330A are rugged and satisfy certification standards for environmental protection.

CPT330A edge computer IT Diagram
CPT330A AI vehicle computer combined with AI 3D depth sensing recognition and real-time interpretation of people counting, capacity analysis and event watching. The counting, capacity and event can be returned to the AI Cloud image recognition cloud management system for storage.

AI Computer Vision IT Diagram
Its computer, CPT330, features i7-9700TE Processor with 8x POE. Intel Movidius is the third generation and most leading VPU from Intel. Computer vision is a scientific field that deals with how computers can obtain high-profile understanding from digital images or videos. It can be applied to many fields, one of which is artificial intelligence (AI). AI computer vision mostly carries out autonomous planning. Generally speaking, computer vision is sometimes considered partial artificial intelligence field or the computer science field.

Public Safety and Mobility Service
Alerts to vehicles and their occupants could assist in numerous situations, including Passenger and Driver behavior analysis.

A. Passenger Behavior

Pedestrian tracking, Passenger Counting
Ticketing & Payment Identification
Accident Prevention (Event Watching)

B. Driver Behavior

In-vehicle Driver Behavior

Coffeelake-R CPU For IoT Applications
CPT330A adopts Intel’s i7-9700TE CPU (8 Cores, 1.8GHz Turbo up to 3.8GHz), delivering the efficient performance to consolidate multiple workloads. Compare to 7th Generation CPU Processor, Coffeelake-R platform provides up to 36% better integer multi-threaded compute intensive application performance. With this flexible platform which is designed for intelligent devices and a mature ecosystem, CPT330A is able to accelerate the development of your value-add solutions enabling you to quickly put your ideas into action. CPT330A can be applied in Smart Factory, dramatically enhance the efficiency.

Raise Efficiency In Industrial 4.0
Variety sensors are used in factory, they can measure parameters that include temperature, pressure, light, vibration, water/lubricant quality, chemical content, liquid/solid levels and many more. All of the sensors are connected with different I/O interfaces, CPT330A with rich I/O interfaces is capable of satisfying these requirements. By collecting various data via CPT330A, it empowers business owners to better control and understand every aspect of their operation, and allows them to leverage instant data to boost productivity, improve processes, and drive growth.

Multi-Display Support
In Industrial 4.0 it’s important for employees or systems of factories to anticipate and act before issues or challenges arise. Thus, a real-time surveillance system is necessary for factorial management. In response to new trend, CPT330A has been qualified to support multi display ports including HDMI, DVI-I, and DP, which makes CPT330A an ideal choice for those, who are looking for an industrial computer to apply it in Control Center or different display scenarios.

Gigabit Ethernet
From real-time alerts and notifications, real-time tracking to monitoring, all of them rely on high-efficient interconnection with network to act in time. So, the efficiency of network becomes one of the most important concerns in intelligent factories. Considering the concern that our customers may have, 7starlake equipped CPT330A with RJ45 Gigabit Ethernet Interfaces to ensure that factories can make more accurate decisions without any delay.

Wide Range DC-in
Also, wide range DC power input is a characteristic of CPT330A. Ranging from 9V to 48V, CPT330A allows the system to be utilized in extensive power types. The design of wide power range keeps the system’s reliability and you can expect longer life-span as well. Sudden drop or surge of power posts absolutely no threat to this smart system.

Extended Temperature Range ensures the reliability of the equipment
With 7starlake’s extraordinary research and perfect design, CPT330A can successfully operate from -20°C to 60°C degrees, and with our special industrial extended range of temperature layout, it can also reduce the potential computer glitches and unpredictable shutdown caused by thermal issues.


Operating Temp.
Operating Temperature -20°C to 60°C
Storage Temperature -40°C to 85°C
CPU Intel® Core™ i7-9700TE (12M Cache up to 3.8GHz) 35W

Intel® Core™ i7-8700 (12M Cache up to 4.6GHz) 65W

Intel® Core™ i7-8700T (12M Cache up to 4.0GHz) 35W

Memory Type 2x DDR4, SO-DIMM up to 64GB -2666MHz
Front I/O
USB 4x USB3.0, 2x USB2.0
COM 2x RS232/422/485
Ethernet 2x RJ45 Gigabit Ethernet Interfaces (10/100/1000Mbps)
DisplayPort 1x 20Pin DisplayPort connector (Female), resolution up to 4096×2160@60Hz
Rear I/O
Storage Device 2x 2.5” SSD
USB 2x USB3.0
HDMI 1x 19Pin HDMI1.4 connector (Female), resolution up to 3840×2160@30Hz
OS support list
Windows Windows 10 64Bit
Linux Ubuntu14.04, Fedora 20/23, RedHat Linux EL 7.1/7.2
Mechanical and Environment
Power Requirement 9V~48V DC-IN
Operating Temp. -20°C to 60°C
Storage Temp. -40°C to 85°C

Block Diagram

Intel® Core™ i7-9700TE Processor (up to 3.8 GHz, 8 cores)

Thermal Point Testing Temp.
CPU T-J 0 17 16 58 68 75 91
CPU Die -10.4 8.8 11.8 38.6 71.9 76 81.5
CPU Heat sink -13.8 4.7 8.2 34.7 67.8 72 77.3
Δ1=(TJ-Die) 10.4 8.2 4.7 5.0 5.0 7.0 7.0
Δ2=(Die-Heat Sink) 3.4 4.1 4.7 5.0 5.0 6.0 5.0
CPU Frequency (GHz) 3.15 3.02 2.66 2.68 2.57 2.45 2.41
GPU T-J 19 57 71 82 88
GPU Die 31.5 62.6 85.5 87 89.3
GPU Frequency (GHz) 1.5 0.84 0.675 1.125 0.96

Intel® Core™ i7-8700T Processor (up to 2.4 GHz, 6 cores)

Thermal Point Testing Temp.
CPU T-J 0 20 16 77 95 99 100
CPU Die -10 8.2 11.8 38.6 71.9 76 81.5
CPU Heat sink -15.7 2.2 8.2 34.7 67.8 72 77.3
Δ1=(TJ-Die) 10 11.8 4.7 5.0 5.0 7.0 7.0
Δ2=(Die-Heat Sink) 5.7 6 4.7 5.0 5.0 6.0 5.0
CPU Frequency (GHz) 2.83 2.85 2.66 2.97 2.26 2.18 2.19

Intel®i7-8700 Processor( up to 3.2GHz,6 cores,50W)

Thermal Solution


Patented Thermal Solution

7STARLAKE designs a unique enclosure that is able to stack together both horizontally and vertically. The aluminum heat sink enclosure of CPT330A secures top heat dissipation. It’s well-known that fanless method relies heavily on the precise calculation of the efficiency of each heat dissipating component. 7STARLAKE exclusively adopts special heat radiating material and combining with special CNC cutting, further forged into a lavish sophisticated metal. Superior fanless design guarantees silent operation that enhances the flexibility of mobility and prevents the intrusion of dust and debris. Achieving ultimate reliability and stability,CPT330A can operate under extended temperature ranging from -20 to 60°C.
