IV320-CH Full IP65 Rugged MXM-GPU AI Edge Mission Computer

  • Full IP65 sealed enclosure for harsh, wet and dusty environments.
  • Design to meet MIL-STD 810 Thermal, Vibration, Shock, Humility
  • Intel® 9th Gen Core™ i7-9850HE/HL 45W/25W (COM Express /Type6)
  • 2 x SO-DIMM up to 64GB DDR4 (32GB per DIMM)
  • Supports NVIDIA® RTX GeForce™ GTX 1050Ti
  • Supports NVIDIA® Quadro MXM RTX A4500 (16GB GDDR6, 5888 CUDA)
  • Rugged waterproof M12 connectors
  • IP65 2 x 2.5” SATA SSD Easy Swap Tray
  • Extended Operating Temperature -20 to +60°C
  • Wide range DC-Input 12-36V DC-IN
  • MIL-TSD 461 18V~36V (28VDC) by Options
  • Dimensions : 246(L) x 313.5 (W) x 100 (H) mm


 IV320-CH Datasheet




Autonomous Vehicle
With the rise of advanced technology, the appearances of cutting-edge vehicles have been sprung up recently. Out of all the burgeoning vehicles, driverless vehicles have gone viral the most. Autonomous Vehicles (AV) could contribute to making future mobility more efficient, safer and cleaner. However, the road to the success is not always effortless for driverless vehicles; it requires the support of lots of technologies. Artificial Intelligence (AI) and Machine Learning (ML) is the backbone of the success of driverless vehicles, also with sensors and the computing unit that handles the main control for the self-driving vehicles, such as converting throttle input to torque requests, safety system monitoring, control loops, and power limiting. To satisfy the rapid increase in the operation speed of the sensors and the accumulated data, powerful GPGPU brings high speed, low latency, and more complex performance. Plus, while driving on uneven terrain, the system must be anti-vibration to protect the machine from damage. 7Starlake uses MXM mezzanine type structure to enhance the strength of ruggedness. Moreover, IV320CH-TX also equips 10GbE Uplink network which is wide bandwidth and can support for high-resolution video processing, to deliver low latency transmission.

CPU Features
To realize Edge AI technology, IV320CH-TX is driven by Intel® 9th Coffee Lake Processors, which features 6 cores, max frequency up to 4.4 GHz, providing high-speed data processing to support a large amount of computation. It is integrated Intel® UHD Graphics. Coffee Lake processor is built on 14nm Technology. It is high computing performance and flexibility for heavier IoT workloads.

MXM Mezzanine Type Structure to Withstand Uneven Terrain
While driving on uneven terrain, the system should be anti-vibration to protect the machine from damage; 7Starlake uses MXM mezzanine type to make the ruggedized structure for harsh environment. IV320CH-TX is driven by NVIDIA® Quadro RTX A2000 MXM GPU with 2,560 CUDA Cores 4GB/8GB GDDR6 high memory configurations. The GPU is arranged with MXM 3.1 module providing efficient GPU performance. With five channel outputs, including 4x DisplayPort 1.4a, 1x HDMI 2.1, IV320CH-TX supports various application, 4K at 120Hz or 8K at 60Hz with 10-bit color depth. RTX A2000 MXM GPU improves data-transfer speeds from CPU memory for data-intensive tasks with support for PCI Express Gen 4.

Ready for IoT

Wide 10 Gigabit Data Uplink Bandwidth Ideal for IoT
Artificial Intelligence and Machine Learning request large amount of data and fast data transmission, 10GbE uplink can support wide bandwidth for AI edge computing and led to less bottlenecks and low latency and improve work efficiency, ensuring peak network efficiency and performance for autonomous driving.

Flexible I/O Port and Expansion Slot
AI edge computer focuses on easy deployment for great variety applications; IV320TH-TX is equipped with extensive I/O ports including 1 x VGA, 2 X Giga LAN, 2 x USB, 1 COM port, especially the I/O is installed with M12 waterproof connector, ready for harsh environment. Furthermore, IV320TH-TX is equipped with 2 x Full-size mini PCIe and 1 x 2280 M key expansion slot that enable the installation for the connectivity of data transmission of diverse data-intensive applications.

Full IP65 Sealed Enclosure
The dirt, dust, and moisture in the outdoor environment can damage the system, and as the air moves from high humidity or dusty environments, it might lead to the failure of system operation. IV320TH-TX is full IP65 sealed enclosures which are designed to meet the various requirements of engineers when designing electrical and electronic systems which have to be protected. And protect against low pressure water jets from any direction, as well as condensation and water spray. It’s suitable for most outdoor enclosures.



CPU Intel® Core™ i7-9850HE, 45W, Coffee Lake 9th Gen, 6C, Freq. 2.7/4.4 GHz, 9MB cache

Intel® Core™ i7-9850HL, 25W, Coffee Lake 9th Gen, 6C, Freq. 1.9/4.1 GHz, 9MB cache

Memory type Dual Channel DDR4 2666 MHz, 64GB (32GB per DIMM)
CHIPSET Intel® QM370 Chipset
GPU NVIDIA® GeForce™ GTX 1050Ti – (Pascal, 768 CUDA Cores, 60W)

NVIDIA® Quodra RTX MXM A4500/A2000 (5888/2560 CUDA)

GRAPHICS Intel® UHD Graphics 630/P630
Expansion Slot 2x Full-size mini PCIe (1 with mSATA supported)

-1 with mSATA/USB2.0/PCIe x1 support

-1 with SIM/USB2.0/PCIe x1 support

1x 2280 M key (SATA only)


Display 2x DP outputs from COM Express®,

1x VGA from COM Express®


SATA 2x 2.5” SSD, Hot Swappable SSD/HDD slot
M.2 1x 2280 M key (SATA only)


Ethernet 2x 10/100/1000 Ethernet Ports

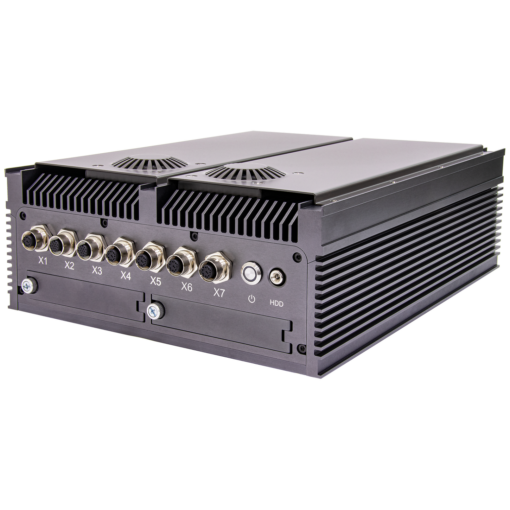

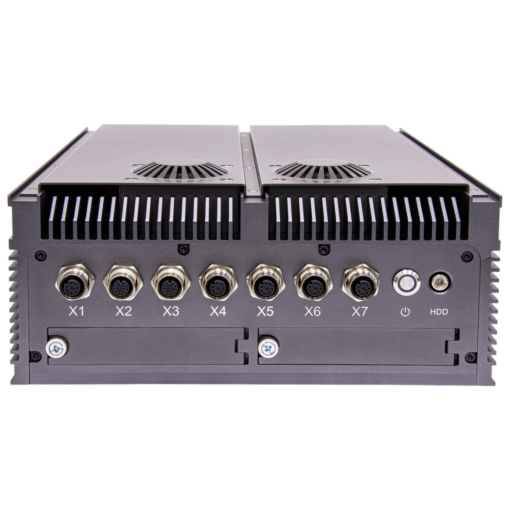

Front I/O

X1 1x VGA , with M12 waterproof connector
X2 1x Giga LAN , M12 waterproof connector
X3 1x Giga LAN , M12 waterproof connector
X4 1x USB , with M12 waterproof connector
X5 1x USB , with M12 waterproof connector
X6 1x RS232/422/485, with M12 waterproof connector
X7 (reserved)
switch 1x IP65 power button
SSD 2x 2.5”Easy swap SSD Tray

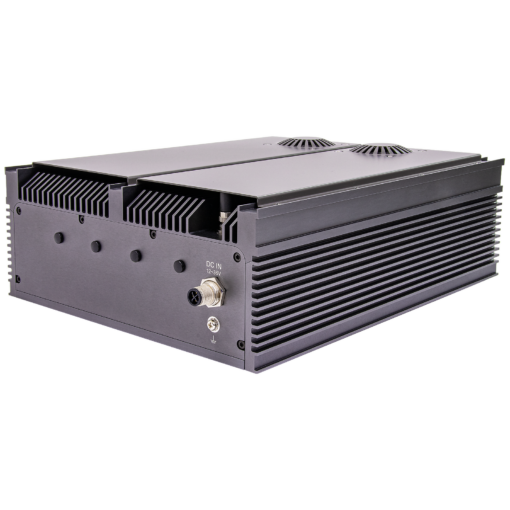

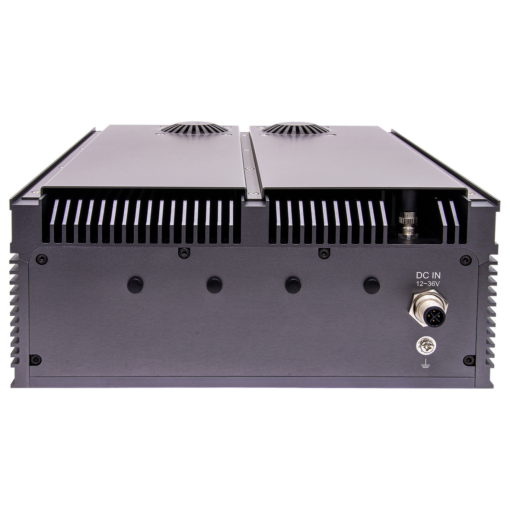

Rear I/O

DC-in 12V~36V DC-IN ; Options for EN50155 48VDC
others Antenna


Power input 12V~36V DC-IN , Options for EN50155 48VDC

Operating System

OS Windows® 10 64-bit / Linux (support by request)


Dimension 250(W) x 325 (L) x 100 (H)mm
Weight 7.5 Kg
Chassis Aluminum Alloy
Heatsink Heatsink Aluminum Alloy, Corrosion Resistant


Green Product RoHS, WEEE compliance
Operating Temp. -20°C to 60°C, Options for -40°C Cold Boot Up
Storage Temp. -40°C to 85°C
Relative Humidity 5% to 95%, non-condensing
MIL-STD-810 Method 507.5, Procedure II ( Temperature & Humidity )
Method 516.6 Shock-Procedure V Non-Operating ( Mechanical Shock )
Method 516.6 Shock-Procedure I Operating ( Mechanical Shock )
Method 514.6 Vibration Category 24/Non-Operating ( Category 20 & 24, Vibration )
Method 514.6 Vibration Category 20/Operating ( Category 20 & 24, Vibration )
Method 501.5, Procedure I ( Storage/High Temperature )
Method 501.5, Procedure II ( Operation/High Temperature )
Method 502.5, Procedure I ( Storage/Low Temperature )
Method 502.5, Procedure II ( Operation/Low Temperature )
Method 503.5, Procedure I ( Temperature shock )

Block Diagram

Ordering Info





IV320CH Thermal test report _2022 Q1
