DX-2200-TI-24

£1,050.00

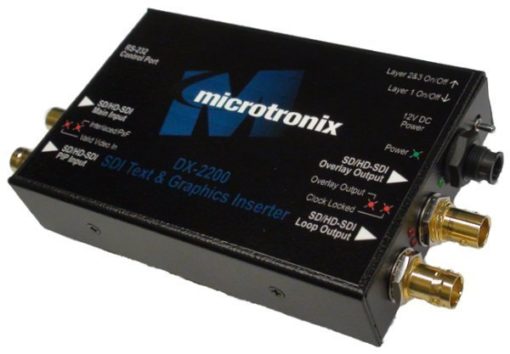

SD/HD-SDI Text & Graphics Inserter with PIP OSD & SDI Loop Output

Description

The DX-2200-TI-24 is a single port, high-speed SD/HD-SDI Text and Graphics Inserter with PIP OSD capable of overlaying live text and graphic components (symbols, lines, logos etc.) onto a SD or HD SDI video stream in both interlaced and progressive video formats. Up to 48 independent text or graphic fields on each of three overlay layers can be displayed and positioned as required. The text can independently controlled for color, size, font and background color. Enhanced on screen display (OSD) capabilities include: alpha blending and multi-layering of both text and graphic fields, and dynamic positioning of text and graphic components. An ancillary SDI input (which can operate asynchronous to the main video source) is used for overlaying a PIP display from a second video source.

The text and graphic OSD information is delivered to the unit through the RS-232 Serial Control Port. An extensive Serial Command set allows for full control of text size, font type, color, position, transparency and background color and background transparency. Serial commands can optionally be used to assign custom switch functions to control the display of text or graphic fields. User text, graphics overlays and custom user configurations can be stored in on-board flash. The unit has 2MB of flash available for storing graphic images uploaded through the serial port using a JAVA Software Uploader utility.

The DX-2200-TI-24 is designed for use in broadcast, professional video recording, surveillance, point-of-sale, security and embedded applications requiring alpha blended graphics (i.e. logos) overlay and live, high-speed text insertion with no degradation of the video content. All ancillary and vertical blanking information (VBI) content including audio channels and embedded metadata is passed through transparently (on the main SDI feed).

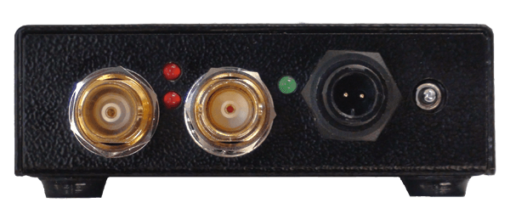

The unit provides two SDI outputs: one with the overlay and the other a clean loop-thru output of the video source.

Key Features

  • Supports live text insertion on interlaced, progressive segmented frame (PsF) and progressive video streams
  • Dual SD/HD-SDI inputs: one for the main input & one ancillary for the PIP display
  • Dual SDI outputs: one with the overlay & the other a loop-thru of the main SDI input
  • Supported SD and HD SDI video formats:
    • NTSC 480i @ 29.97 frames per sec (fps)
    • PAL 576i @ 25 fps
    • 720p @ 25 / 29.97 / 30 / 59.94 / 60 fps
    • 1080i @ 25 / 29.97 / 30 fps
    • 1080p @ 23.98 / 24 / 25 / 29.97 / 30 fps
    • 1080PsF @ 23.98 / 24 / 25 / 29.97 / 30 fps
  • Text and graphic overlay OSD:
    • 3 alpha blended overlay layers
    • Up to 48 independent Text Fields
    • Up to 48 independent Graphic Fields
    • Text size, color, transparency and position control
    • Configurable background color
    • Alpha blending of text and text background
    • Alpha blending of graphic components
    • Dynamic positioning of text and graphic overlay components
    • Fields support line drawing, open and filled rectangles
  • Output video Frame Counter text overlay display
  • Output video clock frequency is locked to input
  • Low latency video delay: a single video frame plus 1 line of video
  • Digital zoom (video scaling)
  • Supports ancillary and VBI content including audio channels and embedded metadata on the main SDI feed
  • User Control:

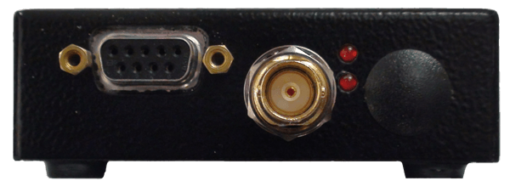

    • RS-232 Serial Control Port. (An optional Data Port is available for custom applications.)
    • User definable operation of DIP & Toggle switches
  • Flash storage of user configuration (including text and graphics) for auto system recovery after power-off
  • Firmware update via RS-232 serial port
  • Power: regulated 12VDC @ 1.3A 110/240VAC adapter
  • Mechanical: 132mm x 109mm x 33mm (LxWxH)

Product Warranty

  • 1-year factory replacement policy

Applications

  • Broadcast facilities
  • Professional video recording
  • Sports scoreboard overlay systems
  • High-end video security / surveillance / monitoring systems
  • Embedded real-time video applications: military displays, GPS, time display overlay, weather data, frame counter
  • Live SD/HD SDI text insertion
  • Insertion/overlay of text and graphic logos/images onto live SDI video streams
  • Dual-view (PIP) display systems
  • Point-of-sale (POS) video recording security systems

Kit Contents

The DX-2200-TI-24 product includes:

  • DX-2200 – SD/HD-SDI Text & Graphic Inserter with PIP & SDI Loop Output
  • 120/240VAC – 12VDC/1.3A power adapter
  • USB 2.0 to DB9 RS-232 Serial Port Adapter Kit
  • Software Uploader Program (on CD)
  • User Manual (on CD)

Ordering Information

  • PN: DX-2200-TI-24; SD/HD-SDI Text & Graphic Inserter with PIP OSD & Loop Output

Resources



DX-2200-TI-24 User Manual v1-75



DX-2200-TI-24 Product Brochure
