EMC²-DP – PC/104 OneBank Carrier

£995.00



PC/104 OneBank Carrier for SoC Modules

Ask a question



 EMC2-DP-Starters-Guide



Category:

Description

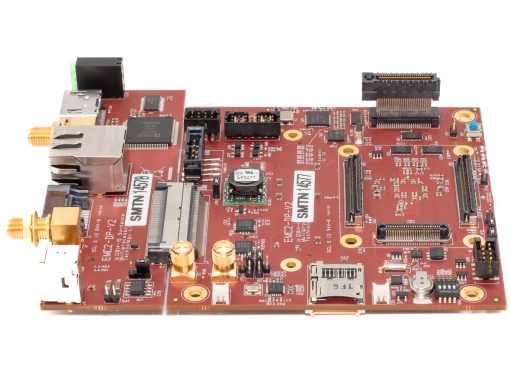

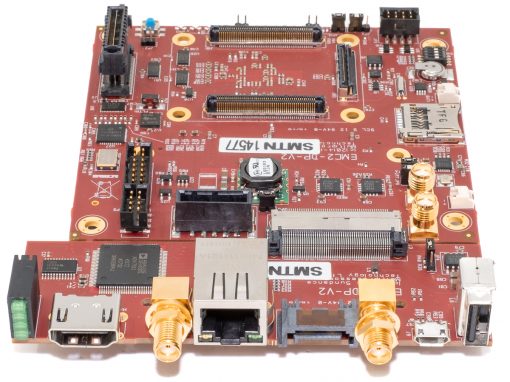

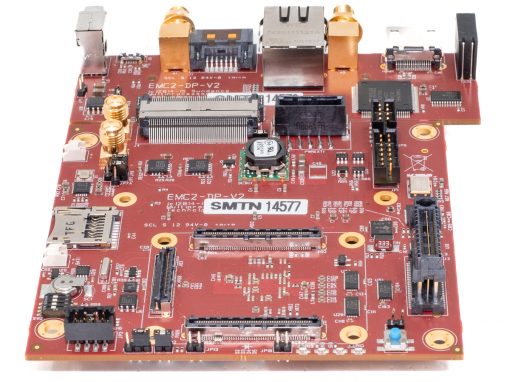

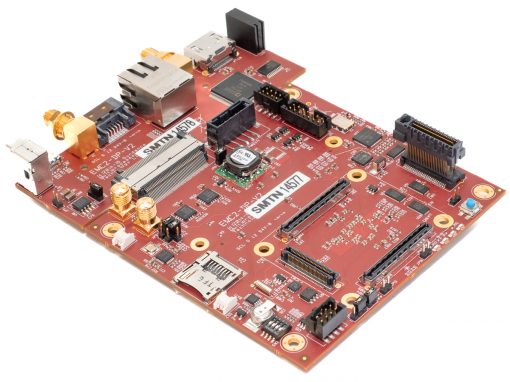

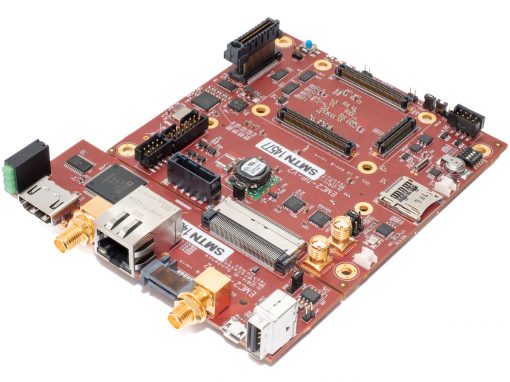

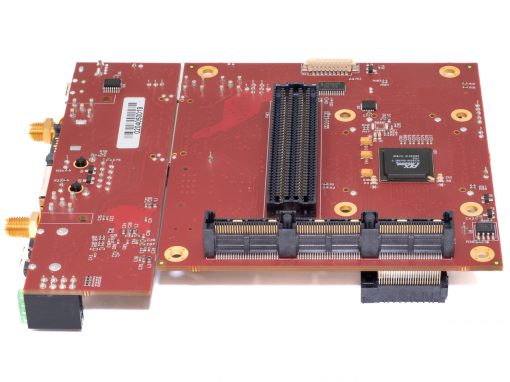

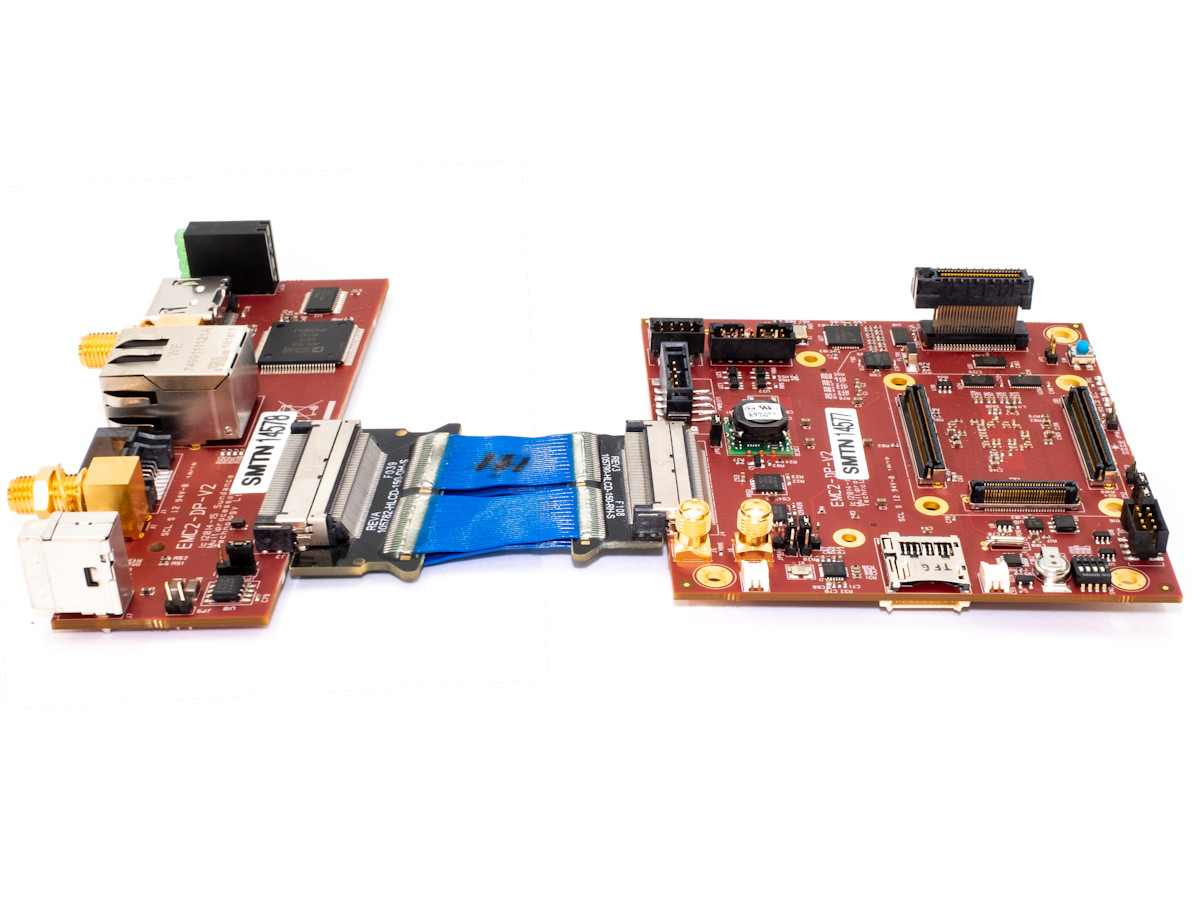

The EMC²-DP is a PCIe/104 OneBank™ Carrier for a Trenz compatible SoC Module and has expansion for a VITA57.1 FMC™ LPC I/O board and also has I/O pins, using a 100-way Samtec RazorBeam connectors system. The add-on board, called “Sundance External Interface Connector – SEIC” contains LEDs, RS232, USB2.0, HDMI, 1Gb Ethernet and SATA . The “SEIC” can be customised for individual applications and bespoke connectors.



View a rotating EMC²-DP board



3D Model EMC² board.  (Must be opened in Acrobat Reader)



The PCIe/104 OneBank™ design enables the EMC²-DP to be added to robust and rugged installations for various commercial, medial, industrial and military uses.



  • PCIe/104 OneBank Carrier for Trenz SoC Modules
  • PCI Express Gen 2 compatible and integrate PCI Express switch
  • Infinite number of EMC²-DP can be stacked for large I/O solutions
  • Expandable with any VITA57.1 FMC I/O Module for more flexibility
  • 96mm x 90 mm PC/104 Form-Factor with Cable-less Break-Out PCB Connector

Block Diagram

Labelled Images

A – USB H – External Power O – 1-wire device
B – UART I – TTL I/O P – Battery backup
C – SMA J – AMD JTAG Q – Micro SD
D – SATA K – 40mm x 50mm SoM R – Clock Synthesizer
E – RJ45 L – PCIe/104 OneBank S – Fan connector
F – HDMI M – Reset Button T – Clock in
G – LEDs N – SATA switch U – External I/O (SEIC)





1 – PCIe/104 Express 5 – RS232 9 – RJ45
2 – FMC LPC Connector 6 – USB 10 – HDMI
3 – PCIe Switch 7 – UART 11 – LEDs
4 – Accelerometer 8 – SATA



Other Files



 EMC²DP-Starters-Guide-v3.1-QCF32

  EMC²DP-Design-Specification-QCF51-v3-4

  EMC-²-IO-v1.0_z712-15-30

EMC² STEP File
