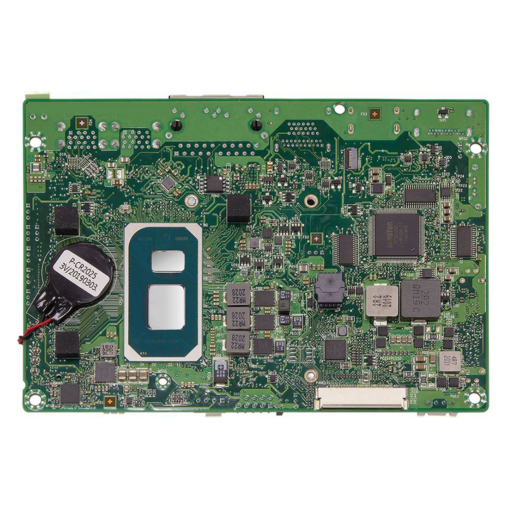

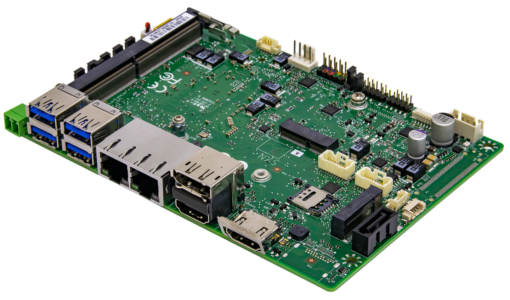

Intel 11th Gen. Tiger Lake-UP3,  DDR4 up to 32GB, Dual M.2 expansion slots: 3042/3052/2280 B-key, 2230 E-key, Extended Temp. -40 to 85°C


  • 11th Tiger Lake-UP3 i7-1185G7E/i5-1145G7E/i3-1115G4E/Celeron® G6305E
  • Dual M.2 Slots: 1 x M.2 2242/2260/2280 B-key (SATA, PCIe x1), 1 x M.2 2230E-key (PCIe, USB)
  • Compatible with M.2 3042/3052 & SIM Slot for 5G Network Connectivity
  • 1 x DDR4 SO-DIMM up to 32GB
  • 1 x SATA III , 2 x Intel® Gigabit Ethernet
  • 2 x USB 2.0, 4 x USB 3.1
  • 4 x COM (3 x RS232, 1 x RS232/422/485)
  • 8~24V Wide Voltage Power Input
  • Extended Temperature ET : -20 to 70°C ; UT : -40 to 85°C


  OXY5363A Datasheet

 OXY5363A User Manual






OXY5363A is a highly integrated 3.5″ rugged SBC driven by 11th Gen Intel® Tiger Lake i7-1185G7E soldering onboard. With processor soldered onboard, OXY5363A can significantly enhance the resistance of vibration and shock. Processor supports graphics (HD Graphics 620 Series) and CPU performance and equips with rich legacy I/O features such as: 2 COM Ports; 8 Bit DIO; 6 USB Ports. With 2 DisplayPort and a Dual Channel 24 Bit LVDS, OXY5363A can fulfill diverse needs of modern day display & monitor control applications.OXY5363A can operate in harsh environment under temperature range from -40℃ to 85 °C and avoid damage from sudden surge of voltage with its 8V to 24V DC input design.

Key Features

(1)Rich I/O interface – Extensive Functionality

Rich I/O design endows OXY5363A with the ability to comprehend present day automation devices, display, and other applications that require extensive I/O features. With 2 COM, 6 USB, 2 LAN, and dual Channel 24-bit LVDS, OXY5363A provides a wide array of choices to expand and connect to different devices.

(2)Extended Temperature Operation

7STARLAKE aims to provide excellent performance to all types of temperature zone. From component selection to layout design, we dedicate our knowledge to make sure that our boards can stand extreme temperature. OXY5363A can operate from -40℃ to 85 °C , our strict manufacture procedure guarantees supreme performance in severe environment.

(3)Efficient thermal solution

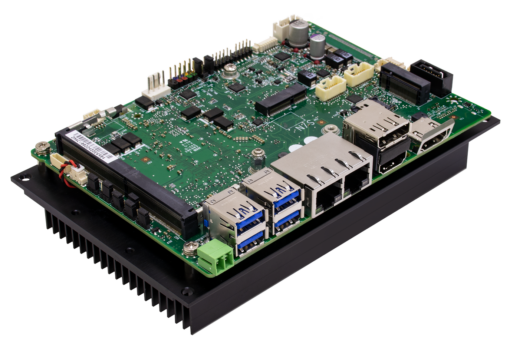

A tailor-made heat spreader is what 7STARLAKE provide for engineers to reduce mechanical design period also ensures the highest efficacy for dissipation. For OXY5363A, the customized heat sink is placed on top of the CPU and chipset, acting as the medium that exchanges the heat to the surrounding atmosphere. The highly efficient aluminum heat sink has a thermal conductivity to absorb the heat generated by the pumping CPU.

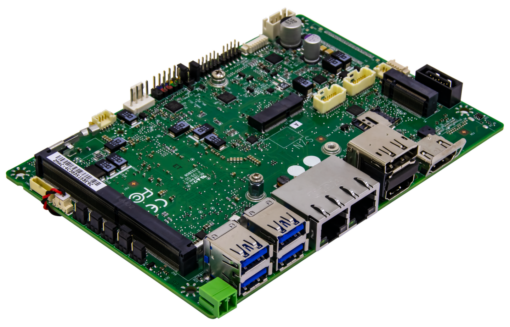

I/O Placement



CPU Type Intel® Core™ i7-1185G7E, 15W, TigerLake 11th Gen, 4C, Freq. 1.8/4.4 GHz, 12M cache Intel® Core™ i5-1145G7E, 15W, TigerLake 11th Gen, 4C, Freq. 1.5/4.1 GHz, 8M cache Intel® Core™ i3-1115G4E, 15W, Tigerlake 11th Gen, 2C, Freq. 3.0/3.9 GHz, 6M cache
Memory Type DDR4 3200MHz / 1 x 260-pin SO-DIMM / Max. 32GB (Non-ECC)
Chipset Intel® SoC Integrated
I/O Chipset Nuvoton NCT6126D
H / W Monitor Temperature Monitor, Voltage Monitor, Fan Monitor
Watchdog 1-255 sec. or 1-255 min. software programmable and can be generate system


Smart Fan Control CPU Fan
Expansion Slot
M.2 1 x M.2 2230 E-key ( Wifi & BT , PCIe / USB)

1 x M.2 2242 / 2260 / 2280 / 3042 / 3052 B-key

(Storage / 5G / LTE,USB2.0 / PCIe x 1 / SATAIII)

Chipset Intel® Iris Xe Graphics
HDMI 2.0b Up to 4K (4096 x 2160) @ 60 Hz
Display Port 1.4 Up to 5120 x 3200 @ 60 Hz
LVDS Up to 1920 x 1200 @ 60 Hz
eDP (Option) Up to 5120 x 3200 @ 60 Hz
Chipset Intel® I219LM Giga LAN + I225LM 2.5G
Codec Realtek ®ALC256
Rear I/O
USB 4 x USB 3.1
Display Port 1 x DP ; 2 x HDMI
LAN 2(1xGbE;1×2.5GbE)
Internal I/O
USB 2.0 2
Display I/O 1 x LVDS (colay eDP)

1 x Backlight connector

Audio 1 x Speaker connector

1 x Mic-in & Line-out

Serial 4 (1 x Support RS-232 / 422 / 485)
CPU Fan 1
Power 1 x 8~24V 4-pin Power Connector, 1 x AT/ATX Mode Select Jumper
Front Panel Control 1 x Front IO Header (PWR ON / RESET / PWR LED / HDD LED)
Mechanical and Environmental
Form Factor 3.5″
Power Type DC-IN 8~24V
Dimension 102mm x 147mm
Operating Temperature ET : -20℃ ~ 70℃

UT : -40℃ ~ 85℃

Storage Temperature -40 to 85
Relative Humidity 10% to 90% , non-condensing
Standard Compliance
Standard Compliance CE/FCC
OS Support Windows®10 64-bit

Linux(Support by request)
