SR700-X4D

IP65 MXM-GPU Military Computer , Intel 9th Xeon E-2276ME, Quadro RTX A2000 GPU with DTL38999 connector

  • IP65 MXM-GPU MIlitary Computer
  • MIL-STD 810 Thermal, shock, vibration, Humidity, EMI
  • Quadro® RTX A2000 (CUDA 2560, GDDR6-8GB) ; Options for GTX1050 Ti
  • 9th Gen Intel® Xeon E-2276ME (6C,4.5Ghz)
  • Up to DDR4-64GB, Options for DDR4-128GB
  • 9V to 36V DC, Options for MIL-STD-461 18V~36V
  • Extended operating temp. -40°C to 60°C
  • Dimension : 360 x 230 x 86 mm (WxDxH)

Special Request :

  • Frame Grabber : 4xCH HD-SDI
  • Discrete IO : 4xDI 4xDO

 SR700-X4D Datasheet



CONTACT US FOR A QUOTE

Description

SR700-X4D rugged system is a powerful system configured with 9th Gen Intel® Xeon® / Core ™ processor with up to 6 cores and 45W/25W TDP and chipset soldering onboard, delivering an amazing level of CPU performance.

Processor Core i7-9850HE plus Intel® CM246 chipset supports supports frequency up to 4.40GHz. SR700-X4D highlights on high flexibility with upgradeable CPU, GPU without constraining by small spaces and limited power consumption chassis.

Besides its extremely rugged design and high functionality, SR700-X4D is designed under MIL-STD-810 and IP65 protection, possessing high adaptation toward dust, humidity, shock, vibration, extreme temperatures and electromagnetic interference characteristics.

SR700-X4D is the perfect solution to military purposes, such as defence, marine navigation and aviation technology. It also can withstand and survive in the harshest surroundings with extended temperature operation from -40 to 60℃.

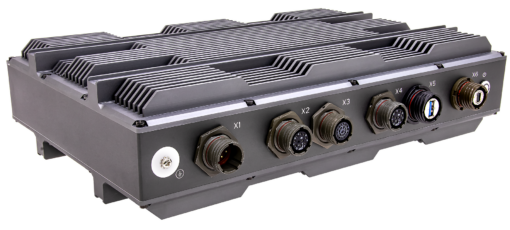

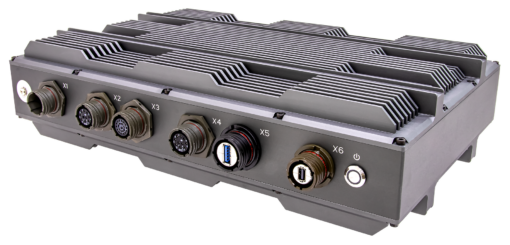

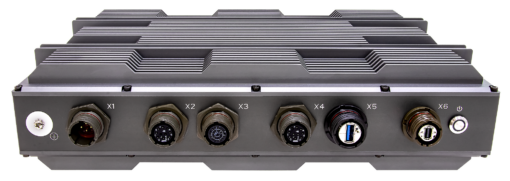

X1 : DC-IN with DTL38999 connector
X2 : 2 x USB2.0 with DTL38999 connector
X3 : 1 x 1GbE LAN with DTL38999 connector
X4 : 1 x 1GbE LAN with DTL38999 connectors
X5 : 1 x RS232/485 with DTL38999 connector
X6 : 1 x mDP with DTL38999 connector​​

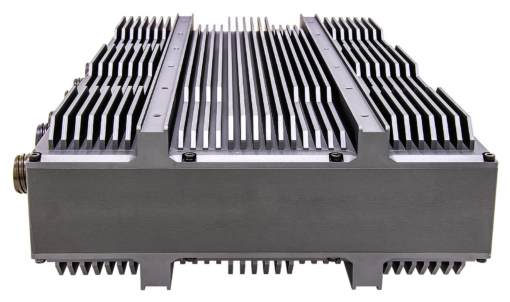

Thermal Solution for Fanless System Design

The unique design of 7StarLake’s stack rack series integrate both horizontal and vertical placement. Dual-sided aluminum heat sink further secures extreme heat dissipation. 7StarLake incorporates exceptional heat radiating material with exceptional CNC cutting design. Fanless method relies heavily on the precise calculation of the efficiency of each heat dissipating component. Superior fanless design guarantees silent operation that enhances the flexibility of mobility and prevents the intrusion of dust and debris. SR700-X4D supports -40°C up to 60°C extended temperature operation, achieving ultimate reliability and stability.



Wire Rope Vibration Isolator Design for Higher Vibration Resistance
7StarLake has especially design a Wire Rope Vibration Isolator for SR700-X4D. The Wire Rope Vibration Isolator may sustain higher vibration resistance of the product itself.

A Wire Rope Vibration Isolator is widely apply on supporting Military equipment because it may absorb and protect the object from vibration damage in any axes simultaneously, with the protection it may extended the product life operating under long hour vibration environment and vibration shock. The isolator is long life maintenance free tool and it may unload whenever required. Besides, Wipe Rope Vibration Isolators may survive under extreme temperature, corrosion, radioactivity, extreme dry or high humidity and UV Radiation environment.

MIL-STD 810 Compliant & Full IP65 Anti-water / Dust Protection
SR stands for Stack & Rack, which means that our SR series systems are capable of stacking and rack mount cabinet placement. With key components such as CPU, memory, and storage devices all soldered onboard, the possible risk of damages caused by sudden impact of vibration and bumping can be diminished to the minimum. MIL-STD tests are established by the US government to simulate how materials would hold up to harsh environments. SR700-X4D is rigorously field-tested to meet or exceed MIL-STD810 & IP65 criteria for extremely high & low temperature, humidity, shock, and vibration. SR700-X4D has complete resistance to dust and water, making it even more ruggedized and reliable. SR700-X4D can stand against the intrusion of dust, accidental contact, and water. Not just commercial grade waterproof and dustproof, it can reach Dust Tight level, which guarantees complete protection against ingression. Even the strong power of water jet won’t post a threat to it, now this is true ruggedness embodied.

MIL-STD-461
MIL-STD-461 is a military standard that establishes the control of electromagnetic interference (EMI) emissions and susceptibility characteristics of electronic, electrical & electromechanical equipment and subsystems for military equipment. EMI encompasses any undesired signals, “noise”, generated by electronic equipment. Keeping EMI under control is crucial for military applications, because if it’s out of control, the military will be detected by the enemy and it might cause a great loss. To design a product that meets strict requirements, engineers should possess extensive knowledge of both electrical and mechanical design to avoid unintentional generation, propagation and reception of electromagnetic energy, which may cause unwanted effects, for example, physical damage in operational equipment.

Rugged Connectors (D38999 & other MIL-STD variations )

MIL-DTL-38999 is a high-performance cylindrical connector family designed to withstand the extreme shock, exposure and vibration that are commonplace in Defense and aerospace applications. Class D38999 connectors are capable of operation within a temperature range -65 to 200℃. They are lightweight and can stand up to environmental challenges. Made with removable crimp or fixed hermetic solder contacts, these connectors provide high-vibration characteristics and are suitable for severe wind and moisture problem areas.

VG96912
Derived from MIL-D38999 Series, VG96912 incorporates lightweight, scoop proof and high contact density features. The plug and receptacle bodies are manufactured from aluminum alloy and protected by cadmium or nickel plating.

Specifications

System

High Power Processor Intel® Core™ i7-9850HE, 45W, Coffee Lake 9th Gen, 6C, Freq. 2.7/4.4 GHz, 9M Cache,

Intel® Core™ i7-9850HL, 25W, Coffee Lake 9th Gen, 6C, Freq. 1.9/4.1 GHz, 9M Cache,

Intel® Xeon® E-2276ME, 45W, Coffee Lake 9th Gen, 6C, Freq. 2.8/4.5 GHz, 12M Cache,

Intel® Xeon® E-2276ML, 25W, Coffee Lake 9th Gen, 6C, Freq. 2.0/4.2 GHz, 12M Cache

Chipset CM246
memory type 4 x DDR4 2666 MHz SO-DIMM up to 128GB
Graphic Geforce® 1050Ti CUDA 768 GDDR5-4GB

Quadro® RTX A2000 CUDA 2560 GDDR6-8GB

Ethernet I219LM +3 x I210iT
Audio codec ALC887
Power Type DC-DC 9V~36V, Options for MIL-STD 461 18V~36V DC
Storage 2 x SSD

Expansion slot

M.2 1 x M.2 (M-key, type:2280, SATA/PCIe 3.0×4 NVMe)
Mini-PCI 2 x Full size (PCIe x1,USB 2.0 and micro SIM Card)

Front I/O

X1 DC-IN with DTL38999 connector
X2 2 x USB2.0 with DTL38999 connector
X3 1 x 1GbE LAN with DTL38999 connector
X4 1 x 1GbE LAN withDTL38999 connectors
X5 1 x RS232/485 with DTL38999 connector
X6 1 x mDP with DTL38999 connector

Applications, Operating System

Applications Military Platforms Requiring Compliance to MIL-STD-810 where Harsh Temperature, Shock, Vibration, Altitude, Dust and EMI Conditions.
Operating System Windows 10 32/64Bit

Ubuntu13.04, Ubuntu13.10, Ubuntu14.04, Fedora 20

Physical
Dimension 360 x 230 x 86 mm (WxDxH)
Weight 8.6 Kg ( 18.9 lbs )
Chassis Aluminum Alloy, Corrosion Resistant
Heatsink Aluminum Alloy, Corrosion Resistant
Finish Anodic aluminum oxide ( Color Iron gray )
Cooling Natural Passive Convection/Conduction. No Moving Parts.
Connectors IP65 Waterproof  Connectors
Ingress Protection IP65
Environmental
Operating Temp. -40°C to 60°C
Storage Temp. -40°C to 85°C
Relative Humidity 5% to 95%, non-condensing
MIL-STD-810 Method 507.5, Procedure II ( Temperature & Humidity )
Method 516.6 Shock-Procedure V Non-Operating ( Mechanical Shock )
Method 516.6 Shock-Procedure I Operating ( Mechanical Shock )
Method 514.6 Vibration Category 24/Non-Operating ( Category 20 & 24, Vibration )
Method 514.6 Vibration Category 20/Operating ( Category 20 & 24, Vibration )
Method 501.5, Procedure I ( Storage/High Temperature )
Method 501.5, Procedure II ( Operation/High Temperature )
Method 502.5, Procedure I ( Storage/Low Temperature )
Method 502.5, Procedure II ( Operation/Low Temperature )
Method 503.5, Procedure I ( Temperature shock )
Reliability No Moving Parts; Passive Cooling.
Designed & Manufactured using ISO 9001 / 2000 Certified Quality Program.
MIL-STD-461 CE102  :   10 KHz – 10 MHz
RE102-4 : 1.5 MHz -30 MHz – 5 GHz
RS103 :    200 MHz – 3.0 GHz – 5.0 GHz, 50 V/m equal for all frequencies
Green Product RoHS, WEEE compliance

Ordering Information



Model Name

Description

SR700-X4DT Xeon E-2276ML, DDR4-4GB, 128GB SSD, Geforce GTX1050Ti, 9V~36V (DTL38999)
SR700-X4DTE Xeon E-2276ML, DDR4-4GB, 128GB SSD, Geforce GTX1050Ti, 18V~36V, MIL-461/1275 (DTL38999)
SR700-X4DE Xeon E-2276ML, DDR4-4GB, 128GB SSD, Quadro RTXA2000, 18V~36V MIL-461/1275 (DTL38999)
SR700-X4IE i7-9850HL, DDR4-4GB, 128GB SSD, Quadro RTXA2000, 18V~36V MIL-461/1275 (DTL38999)
SR700-X4ITE i7-9850HL, DDR4-4GB, 128GB SSD, NVIDIA GTX1050Ti, 18V~36V MIL-461/1275(DTL38999)
SR700-X4IT i7-9850HL, DDR4-4GB, 128GB SSD, NVIDIA GTX1050Ti, 9V~36V (DTL38999)
