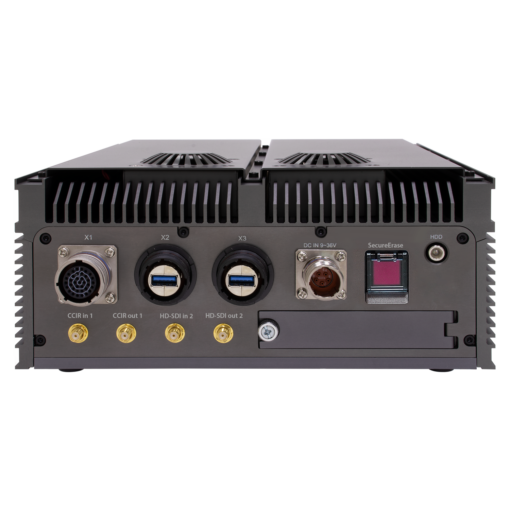

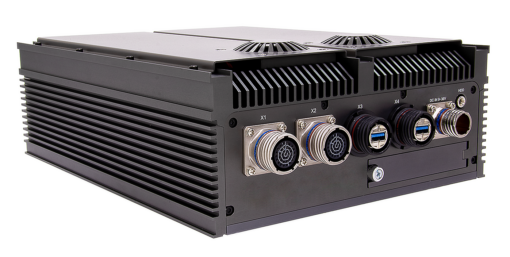

AV600-THT

Military IP66 Mission GPU Computer

  • MIL-STD 810 Thermal, shock, vibration, Humidity / EMI / EMC conditions
  • IP66 Chassis with D38999 connectors
  • Intel® 11th Gen. Tiger Lake(H) W-11865MRE Processors, up to 8 cores
  • Up to 96GB DDR4 SO-DIMM, non-ECC and ECC
  • NVIDIA RTX™ A4500 8GB/16GB GDDR6 memory 5888 CUDA cores
  • Soldered 64 GB NVMe
  • IP65 2 x 2.5” SATA SSD Easy Swap Tray
  • MIL-STD 461 18V~36V DC-Input (Options for MIL-704/1275)
  • Extreme Temperature : -40°C to +60°C
  • Dimensions : 250(W) x 325 (L) x 100 (H) mm

Special Request :

  • Frame Grabber : 4xCH HD-SDI
  • Discrete IO : 4xDI 4xDO
  • Conformal coating on electronics



 AV600-THT Datasheet

 AV600-THT e-DM



CONTACT US FOR A QUOTE

Description

AV600X-THT is driven by Intel® 11 Gen. Tiger Lake-H Processors, integrated Intel® UHD Graphics (Xe architecture). Tiger Lake H processor is built on 10nm SuperFin Technology, up to 8 CPU cores and 4.7 GHz frequency. It is high computing performance and flexibility for heavier IoT workloads, the platform posts significant performance gains gen-over-gen with up to 32 percent gain in single-thread performance. It also features in high-bandwidth, high speed I/Os for expansion and peripherals.

AV600X-THT highlights on its rugged design and high functionality, the system especially installed MIL-STD Amphenol type connector and full IP66 protection allow system withstand in any kind of harsh environment. AV600X-THT supports extended temperature from -40°C to 70°C and MIL-STD-461 18V~36V DC-input Power supply which can protect system from damages caused by sudden surge of voltage, thus further secure the reliability of its critical components and the system itself.







Block Diagram





Specifications



System

CPU Intel® 11 Gen. Tiger Lake-H Processors, up to 8 cores, integrated Intel® UHD Graphics

Intel® Xeon® W-11865MRE, 45W Tiger Lake 11th Gen, 8C, Freq. 2.6/4.7 GHz, 24MB cache

Memory type Up to 96GB DDR4 SO-DIMM, non-ECC and ECC
CHIPSET Intel® RM590E (support ECC, with Xeon CPU) /QM580E
GPU NVIDIA RTX™ A4500 GA104-955 GPU

8GB/16GB GDDR6 memory, 5888 CUDA cores

On Board Storage Soldered 64 GB NVMe
Expansion Slot 2x Full-size mini PCIe (1 with mSATA supported)

-1 with mSATA/USB2.0/PCIeX1 support

-1 with SIM/USB2.0/PCIeX1 support

1x 2280 M key (SATA only)

Storage

SATA 2x 2.5” SSD, Hot Swappable SSD/HDD slot
M.2 1x 2280 M key (SATA only)

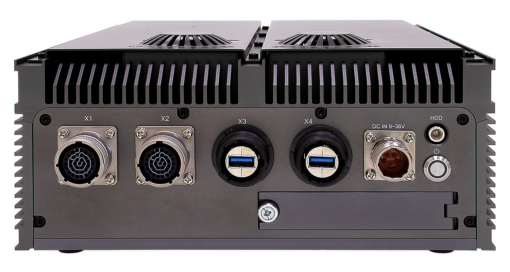

Front I/O

X1 2x GbE LAN + 2x USB2.0 + 1x COM(RS232) with D38999 connector
X2 1x VGA + 4x DI/4x DO + 3x RS422 with D38999 connector
X3 1x USB3.0 , with D38999 connector
X4 1x USB3.0 , with D38999 connector
X5 1x DC-in , with D38999 connector
LED 1x SSD/HDD LED indicator
switch 1x IP65 power button , with LED indicator
SSD 2x 2.5”Easy swap SSD Tray

Power

Power input MIL-STD-461 18V~36V DC-Input

Application, Operating System

Application Military Platforms Requiring Compliance to MIL-STD-810 Where Harsh Temperature, Shock, Vibration, Altitude, Dust and MIL-461 EMI Conditions.
Operating System Windows® 10 64-bit / Linux (support by request)

Physical

Dimension 250(L) x 325 (W) x 100 (H)mm
Weight 11 KG
Chassis Aluminum Alloy
Heatsink Heatsink Aluminum Alloy, Corrosion Resistant

Environmental

Green Product RoHS, WEEE compliance
Operating Temp. -20°C to +60°C
Storage Temp. -40°C to +85°C
Relative Humidity 5% to 95%, non-condensing
MIL-STD-810 Method 507.5, Procedure II ( Temperature & Humidity )
Method 516.6 Shock-Procedure V Non-Operating ( Mechanical Shock )
Method 516.6 Shock-Procedure I Operating ( Mechanical Shock )
Method 514.6 Vibration Category 24/Non-Operating ( Category 20 & 24, Vibration )
Method 514.6 Vibration Category 20/Operating ( Category 20 & 24, Vibration )
Method 501.5, Procedure I ( Storage/High Temperature )
Method 501.5, Procedure II ( Operation/High Temperature )
Method 502.5, Procedure I ( Storage/Low Temperature )
Method 502.5, Procedure II ( Operation/Low Temperature )
Method 503.5, Procedure I ( Temperature shock )
Reliability No Moving Parts; Passive Cooling.
Designed & Manufactured using ISO 9001 / 2000 Certified Quality Program.
MIL-STD-461 CE102  :   10 KHz – 10 MHz
RE102-4 : 1.5 MHz -30 MHz – 5 GHz
RS103 :    200 MHz – 3.0 GHz – 5.0 GHz, 50 V/m equal for all frequencies
Designed to Meet Items ( Options )
CS101, CS114, CS115, CS116
CE106, RE103, RS101
MIL-STD-1275 Steady State 20V-33V
Surge Low 18V/500ms
Surge High 100V/500ms

Ordering Information



Model Name Description
AV600TH-A10
Intel® 11th Gen. Tiger Lake(H) W-11865MLE, RTX A1000 MXM, 1x 2.5” SATA SSD Easy Swap Tray, 18V-36V DC-IN, support MIL-STD-461, MIL-STD-810. with MIL-DTL-D38999 Connectors, Operating Temp. -40 to +60°C
AV600TH-A20-PA1 Intel® 11th Gen. Tiger Lake(H) W-11865MLE, RTX A2000 MXM, 1x 2.5” SATA SSD Easy Swap Tray, 1x 3D-SDI Capture Card, 18V-36V DC-IN, support MIL-STD-461, MIL-STD-810. with MIL-DTL-D38999 Connectors, Operating Temp. -40 to +60°C

Thermal Solution

Video

Downloads



 AV600 MIL-810 514.6 Operation_1

 AV600 MIL-810 514.6 None-Operation_1

 7Starlake_AV600-THT_QTP_20230727

 7StarLake_MIL-STD-461G_Test Report-CE102,RE102,RS103_AV600
