Description

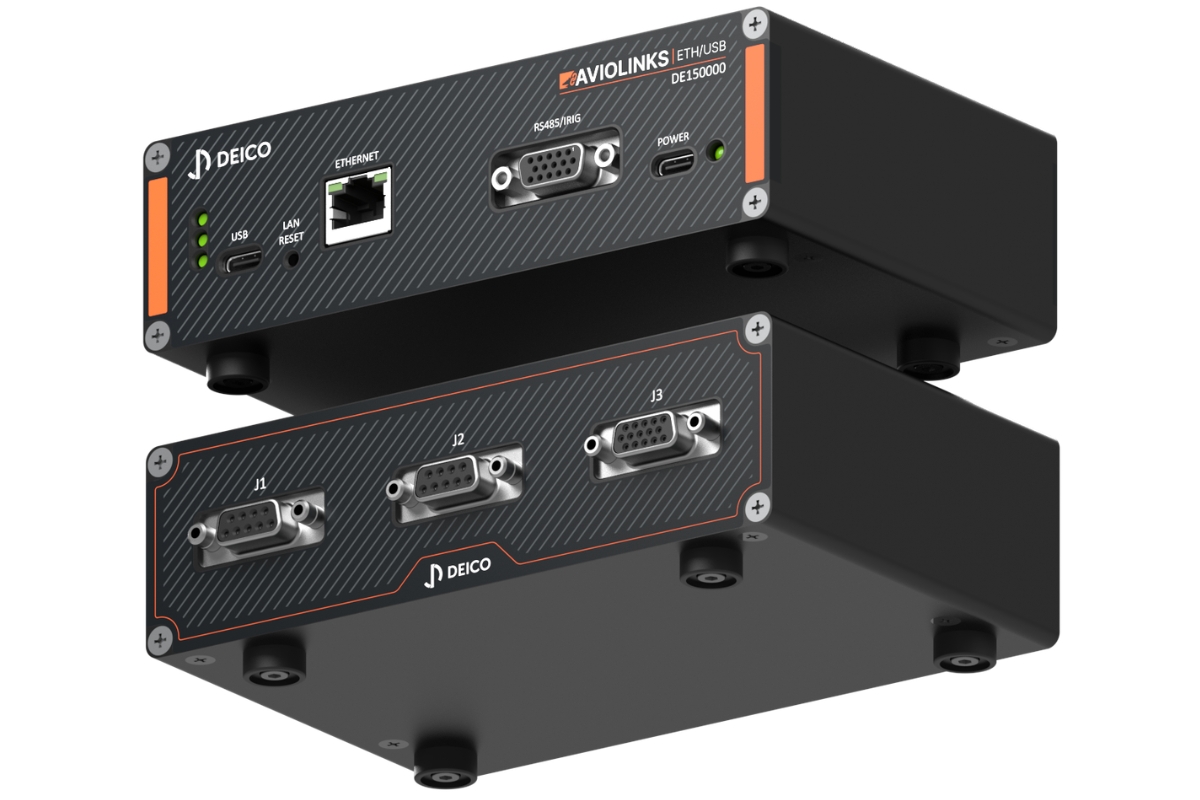

Aviolinks® ETH/USB is a versatile and high-performance unit designed to support a wide range of avionic protocols. With its modular architecture, the device can be configured to meet the specific application requirements.
Key Features
- The device supports up to three modules, each capable of handling one or more of the following avionic protocols:
- MIL-STD-1553 (M1553-1): provides 1 channel dual redundant communication per module with a single or multi-function operation with selectable direct or transformer coupling interface
- ARINC-429 (A429-1): enables data transmission with 2 TX & 4 RX channels per module, ideal for various avionics applications
- ARINC-825 (A825-1): supports bidirectional communication with 2 channels per module, offering versatility in system integration
- Avionic Discrete (DISC-1): provides precise control of avionic discrete signals with 8 channels per module
- IRIG B time decoder: decodes IRIG B time signals up to 4.5 V
- RS-485 interface: provides a high-speed at 20 Mb/s and a low-speed at 500 Kb/s serial communication interface
- Discrete I/O: offers 4 TTL-level discrete input/output channels for digital control and monitoring

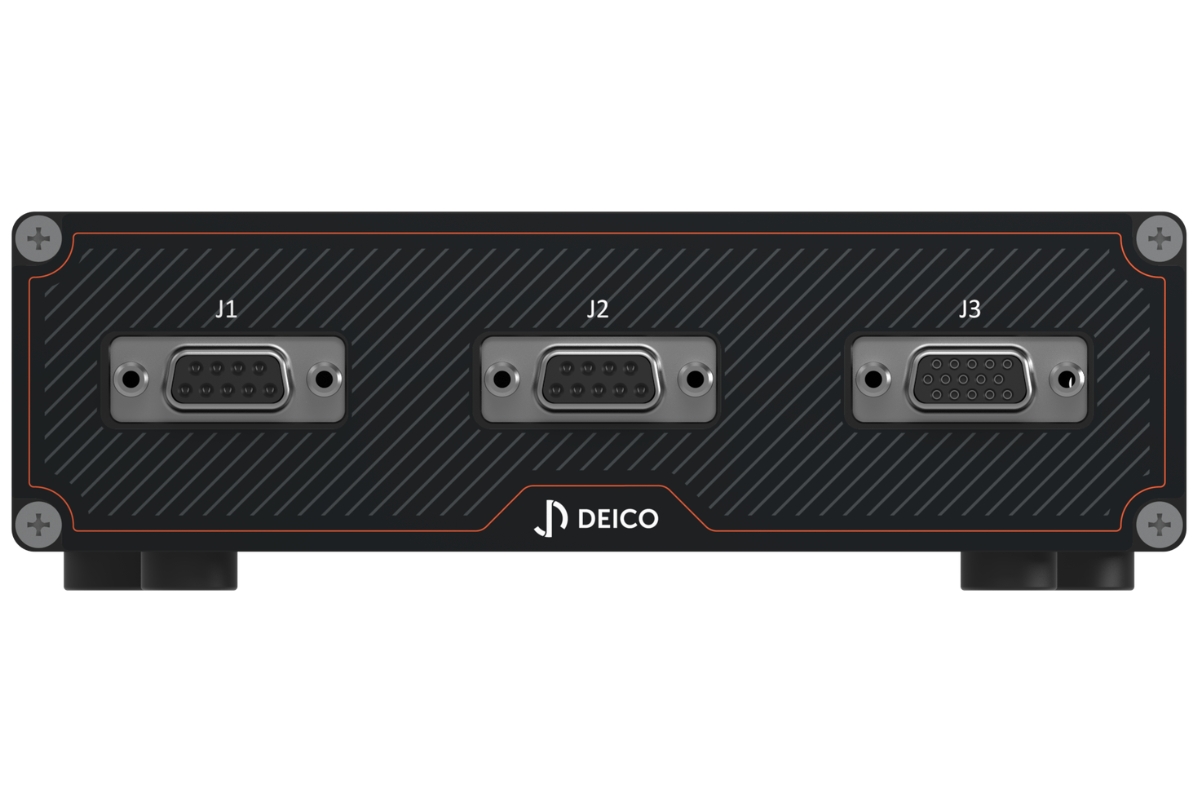

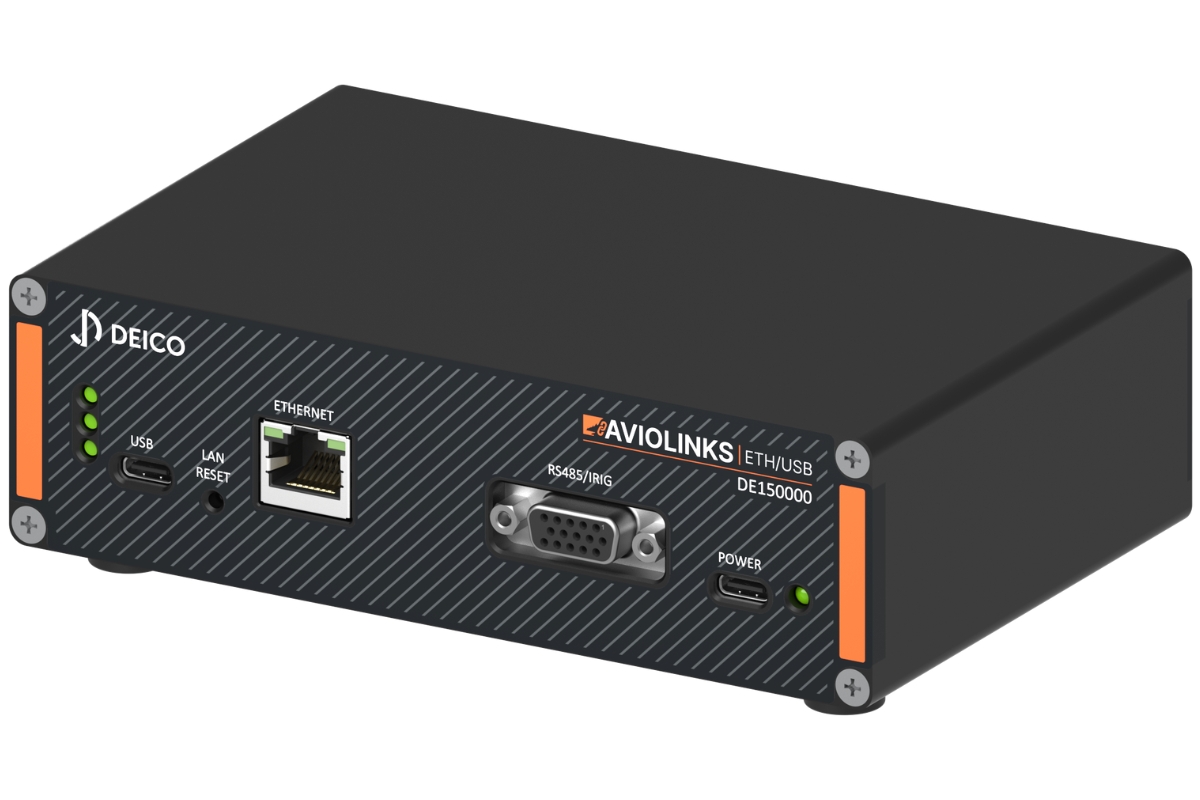

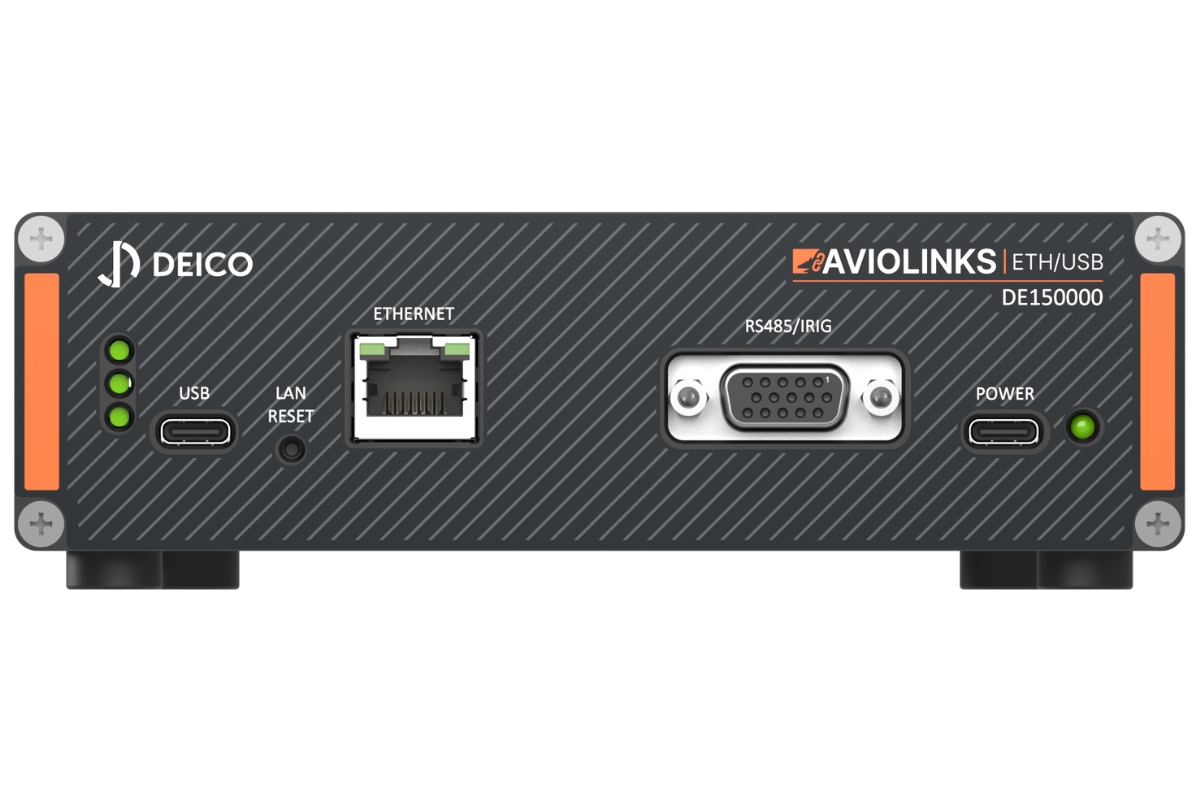

- Ethernet port: enables network connectivity for data transfer and communication
- USB 2.0 port: provides a USB interface for connecting peripheral devices
- Power input: powered via a USB Type-C connector, supporting 5 V – 15 W max. power input
IRIG B Time Decoder
- Format: IRIG-B-122
- Carrier wave: 1 KHz amplitude modulated sine wave
- Input amplitude: 0.5 – 4.5 Vpp
- Modulation ratio: 3:1
