DUAL_ADC&DAC

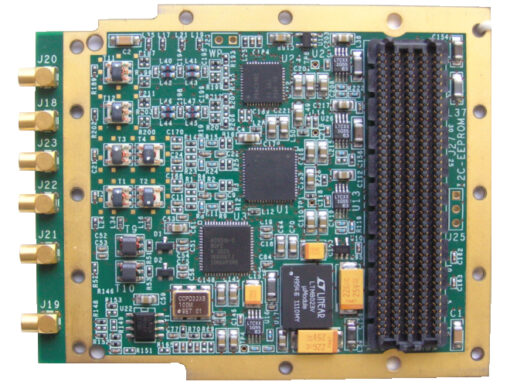

The DUAL_ADC&DAC is a dual channel A/D and dual channel D/A FMC daughter card.



CONTACT US FOR INFO
Categories: , ,

Description

The DUAL_ADC&DAC is a dual channel A/D and dual channel D/A FMC daughter card. The card provides two 14-bit A/D channels and two 12-bit D/A channels. The ADC and DAC can be clocked by an internal clock source(OCXO) or an externally supplied sample/reference clock. There is also an external trigger input for customized sampling control.

The DUAL_ADC&DAC daughter card is mechanically and electrically compliant with FMC standard (ANSI/VITA 57.1). The board has a high-pin count connector and the front panel I/O, and it can be used in a conduction-cooled environment. The design is based on TI’s ADS62P49 dual channel 14-bit 250Msps ADC and TI’s DAC3162 dual channel 12-bit 500Msps DAC. The analogue signals are AC coupled, connecting to MMCX coax connectors on the front panel.

Specifications

  • ADS62P49 Dual ADC by T.I.:
    • N. Bit 14;
    • Input Bandwidth selection (opz.);
    • Max clock 250 MHz;
    • Instantaneous Bandwidth 500 MHz;
    • Power Dissipation 1.25 W;
    • Industrial range (-40°;+85°C);
    • Conformal Coating (opz.);
    • Anti-Sulfur Resistor type;
    • Dual DAC Channels;
  • DAC3162 DAC by T.I.:
    • N bit 12;
    • Input Bandwidth selection (opz.);
    • Max clock 500 MHz;
    • Power Dissipation 1.3 W (typ);
    • Industrial range (-40°;+85°C);
    • Conformal Coating (opz.);
    • Anti-Sulfur Resistor type.
    • External or internal Clock Generation;
    • Input Trigger signal;



  • VITA 57.1 – 2010 compliant (HPC Connector);
  • LVDS/2.5V I/O Signalling;
  • Conduction Cooled;
  • Operating Temperature -40° +85°C;
  • Operating Humidity 5% to 95% at 40°C non-condensing;
  • Conformal Coating Mil-I-46058c Compliant.

Applications

  • Direct RF Down Conversion.
  • Software-defined radio (SDR).
  • RADAR/SONAR.
  • Ultra Wideband Satellite Digital Receiver.
  • Aerospace and test instrumentation.
