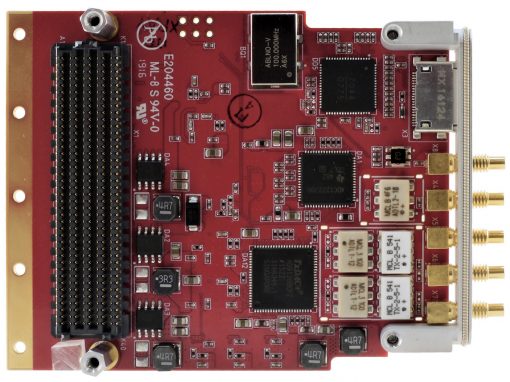

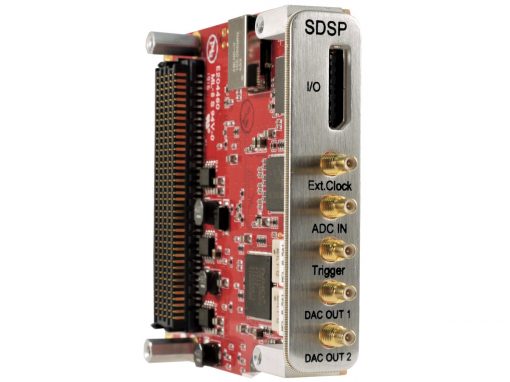

FMC-DAQ2P5

ADC AND DAC FMC MODULE



CONTACT US FOR A QUOTE
Categories: , ,

Description

FMC-DAQ2P5 allows for ADC decimation and DAC interpolation. External trigger input allows the addition of timestamps to the sample stream from ADC. CLK-IN can be a Sample clock input up to 4GHz, or a reference clock input up to 1GHz. The module provides simultaneous working of ADC and DAC on a sample rate of 2.1GSPS, using an internal VCXO clock.

FMC-DAQ2P5  provides 4 x high-speed transceiver lanes routed from the FPGA carrier card to the bezel. 4 differential low-speed lanes and 10 single-ended IO are also routed to the Molex connector available at the bezel which, can be used for any control or data exchange with the FPGA.



ADC Parameters

  • 12-Bit Resolution, single-Chanel, 2.7-GSPS ADC
  • Noise Floor: –146 dBFS/Hz
  • INL: ±2 LSB (Ta = 25)
  • DNL: ±0.25 LSB (Ta = 25)
  • Spectral Performance (fIN = 600 MHz at –1 dBFS):
  • SNR: 54.8 dBFS
  • NSD: –146 dBFS/Hz
  • SFDR: 71.6 dBFS
  • ENOB: 8.8 Bits
  • Spectral Performance (fIN = 1500 MHz at –1 dBFS):
  • SNR: 52.5 dBFS
  • SFDR: 65.2 dBFS
  • THD: -68 dBFS
  • Input Full-Scale differential: 0.95 VPP
  • Full power Bandwidth (-3 dB – calibration = FG): 3200 MHz
  • Integrated Wideband DDC Block
  • Input type: AC – coupled, single ended.
  • Input frequency range: 30 – 1800 MHz
  • Maximum input voltage – 2 Vpp single ended
  • Power Dissipation: 2.21 W max at 2.7 GSPS



DAC part parameters

  • Resolution: 16-Bit
  • Maximum Sample Rate: 2.8GSPS
  • Maximum Input Data Rate: 2.12GSPS
  • 8 JESD204B Serial Input Lanes
  • 10.6 Gbps Maximum Bit Rate per Lane
  • Subclass 1 -DAC Synchronization
  • On-Chip Very Low Jitter PLL
  • Selectable 1x –8x Interpolation
  • Sinx/x Correction Filters
  • 3/4-Wire Serial Control Bus (SPI)
  • Outputs: AC coupled, transformer-isolated
  • Output voltage range: 2Vpp max
  • Output frequency range: 20 – 1060 MHz
  • Integrated Temperature Sensor
  • Power Dissipation: 1.74W at 1.6GSPS



Clock and trigger in parameters

  • External clock in the frequency range, in reference clock mode – 10 – 800MHz
  • External clock in the frequency range, in device clock mode – 400 – 4000MHz
  • Input: AC coupled, 50 Ohm, single-ended.
  • Input power range: -6 to 6 dBm.
  • Trigger input – logic level, ESD protected, LVTTL 3.3V

Features

  • 1 x ADC 12 bit @ 2.7 GSPS
  • 2 x DAC 16 bit @ 2.8 GSPS
  • High Pin Count ( HPC ) FMC module
  • PXIe, PCIe, Stand-Alone … platforms
  • Trigger Input
  • External Clock up to 4 GHz
  • 100 MHz onboard VCXO
  • 4 x high-speed and 4 x low-speed differential lanes
  • 10 x single-ended IOs
  • Optional dual SATA for direct disk interface
  • Commercial and Industrial grades

Applications

  • Radar / Sonar
  • Wireless communication transceivers / base stations
  • Defense / Aerospace / Satellite communications
  • Medical
  • Automotive
  • Direct RF Down Conversion
  • Test and measurement
  • Beamforming / Directional vector
  • Software-defined radio (SDR)

Block Diagram
