Description

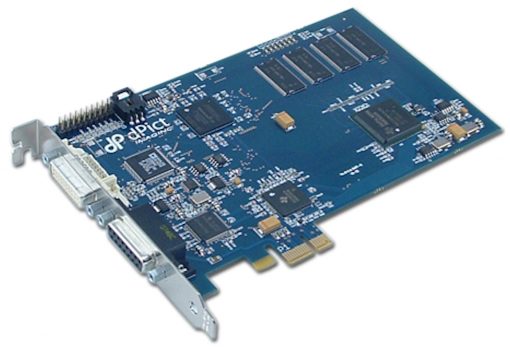

Nexeon HD is a full-featured video frame grabber for high-definition video display and capture. It supports video inputs from standard and HDTV resolutions as well as VGA display. Nexeon HD has a flexible input interface complete with an HDMI compatible receiver and supports both analog and digital DVI/HDMI standards.
PCI Express Support
Nexeon HD is designed with the high-speed PCI Express system interface. PCI Express is the high-performance, next-generation interconnect that increases bandwidth, scalability, and reliability.
Bus-Mastering Performance
Nexeon HD’s high speed bus-mastering capability with scatter gather support delivers realtime video data to system or display memory simultaneously, without intervention from the host CPU. Video data formatting and resolution is independent between streams, allowing for maximum bandwidth flexibility.
Digital Video Processor
By incorporating a TI DM642 video processor, Nexeon HD enables maximum flexibility in handling challenging application requirements. Equipped with a 64 MB SDRAM frame buffer, the video processor provides video scaling, pixel formatting, interrupt support, hardware overlay, and real-time video processing without host CPU assistance.
High-Definition Video Capture
Nexeon HD supports capture and steaming of high-defi nition video and display. Nexeon HD supports VGA display resolutions up to 1280×1024 at 75 Hz, as well as HDTV inputs up to 1080p. Video can be accepted in either analog or digital through DVI or HDMI connectors. With acquisition rates up to 150 MHz, Nexeon HD is one of the most versatile frame grabbers on the market.
High-Quality Standard Definition Capture
Nexeon HD also supports standard defi nition composite, S-Video, or RGB/YCrCb component sources in both NTSC or PAL formats. Nexeon HD provides high-quality 10-bit capture and supports both square-pixel and CCIR-601 video resolutions. Video can be scaled to any arbitrary size.
dVeloper Foundation Software Developers Kit
dVeloper is a comprehensive software developers kit that supports all dPict Imaging products, allowing for easy porting to new hardware. dVeloper is royalty free and runs under Microsoft Windows 10, 8, 7, Vista, XP, and Linux operating systems. Source code samples and complete documentation are included in Visual C, C#, and Visual Basic .NET to provide insight to various hardware functions. Samples include video-in-a-window, overlay, video buffering, camera control, and more.
dPiction Capture Application
dPiction is a viewing and capture application for Windows® systems that is included free with any PCI or PCI Express board purchase. It supports video configuration, viewing, and capture for dPict Imaging frame grabbers.
