Description
nVision GX3 from dPict Imaging is a multi-format intelligent video acquisition device for embedded video capture and processing. nVision GX3 digitizes and transmits high-quality, full-resolution video over TCP/IP networks in real time. nVision’s compact size allows it to be installed anywhere a network connection exists. Designed with a powerful DSP and Linux based ARM processors, nVision GX3 is perfect for video analysis applications.

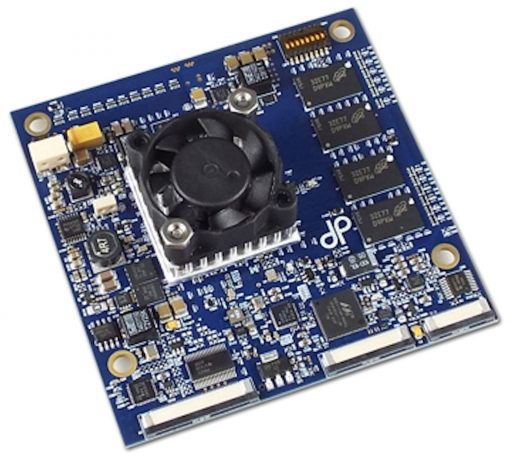

The complete nVision GX3 system consists of two boards – a GX3 processing board and accompanying video input module. Each video module is designed to support various input types and standards.
Complete Linux Based SoC
nVision GX3 is a fully integrated multimedia device with a complete peripheral set, making it suitable for complex embedded video applications. It comes equipped with a powerful video processor with ARM® Cortex™-A8 RISC CPU, allowing for video processing to be separate from network and I/O functions.
H.264 Streaming and Advanced Video Processing
nVision GX3 contains two high-definition video coprocessing channels capable of simultaneously encoding and decoding video in H.264 at 1080p60 resolution. Image processing functions such as image enhancement, stabilization, advanced motion detection, noise filtering, frame de-interlacing, image rotation, video overlay, or scan, format and rate conversion can be accomplished.
Standard Video Module
The nVision GX3 Standard Video Module supports both standard and high-definition video inputs. The Standard Video Module supports HDTV inputs up to 1080p60 as well as VGA display inputs with aquisition rates up to 165 MHz. Standard definition support includes composite, S-video and component in NTSC and PAL.
Sony FCB-EV Series Block Camera Support

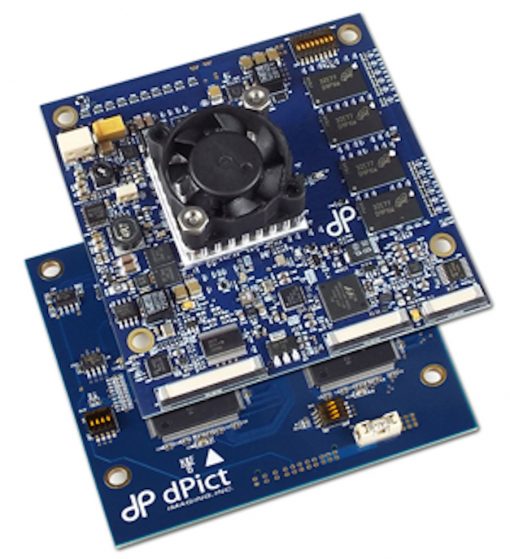

The nVision GX3 Sony Block Video Module supports dual FCB-EV series HDTV block cameras. Communication and power are provided by the nVision GX3, allowing for a clean install with available 30-pin micro-coax cables. Supports RS-232 VISCA protocol.
HDMI Video Display Output
nVision GX3 includes an HDMI 1.3a-compliant transmitter for digital video and audio data to display devices up to 1080p60 at 165MHz pixel rates. Output video can recorded playback or live video input.
Extensive Control
nVision GX3 contains extensive camera and I/O control to make application development simple. By utilizing the integrated ARM processor and 2 GB frame buffer, nVision GX3 provides reliable image transfer to prevent dropped images. nVision GX3 also supplies a dual UART serial interface to control cameras, a USB 2.0 interface, an SD memory card interface, and programmable general-purpose I/O triggers for event notification. nVision GX3 is also available with up to 1 GB of flash memory for boot load options, presets, or integrated web interface.
nVision GX3 API and Developers Kit
The nVision GX3 API is a comprehensive board support package that comes complete with drivers and samples. For ease in application development, the nVision GX3 Developer’s Kit also supplies nVision GX3 Audio/Video and Data I/O boards with cabling.
