Description

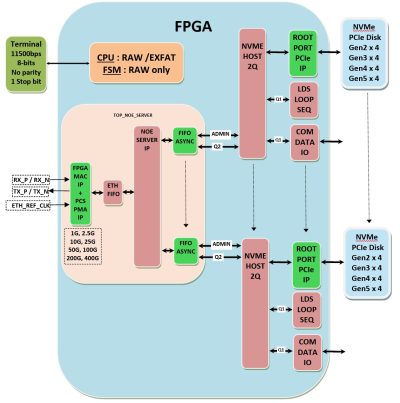

This new NVME HOST NOE IP is an assembly of two IP.
One NVMe Host IP and one NOE SAN IP.
Please have a look at the corresponding IP Product Brief to get the feature details of each IP.

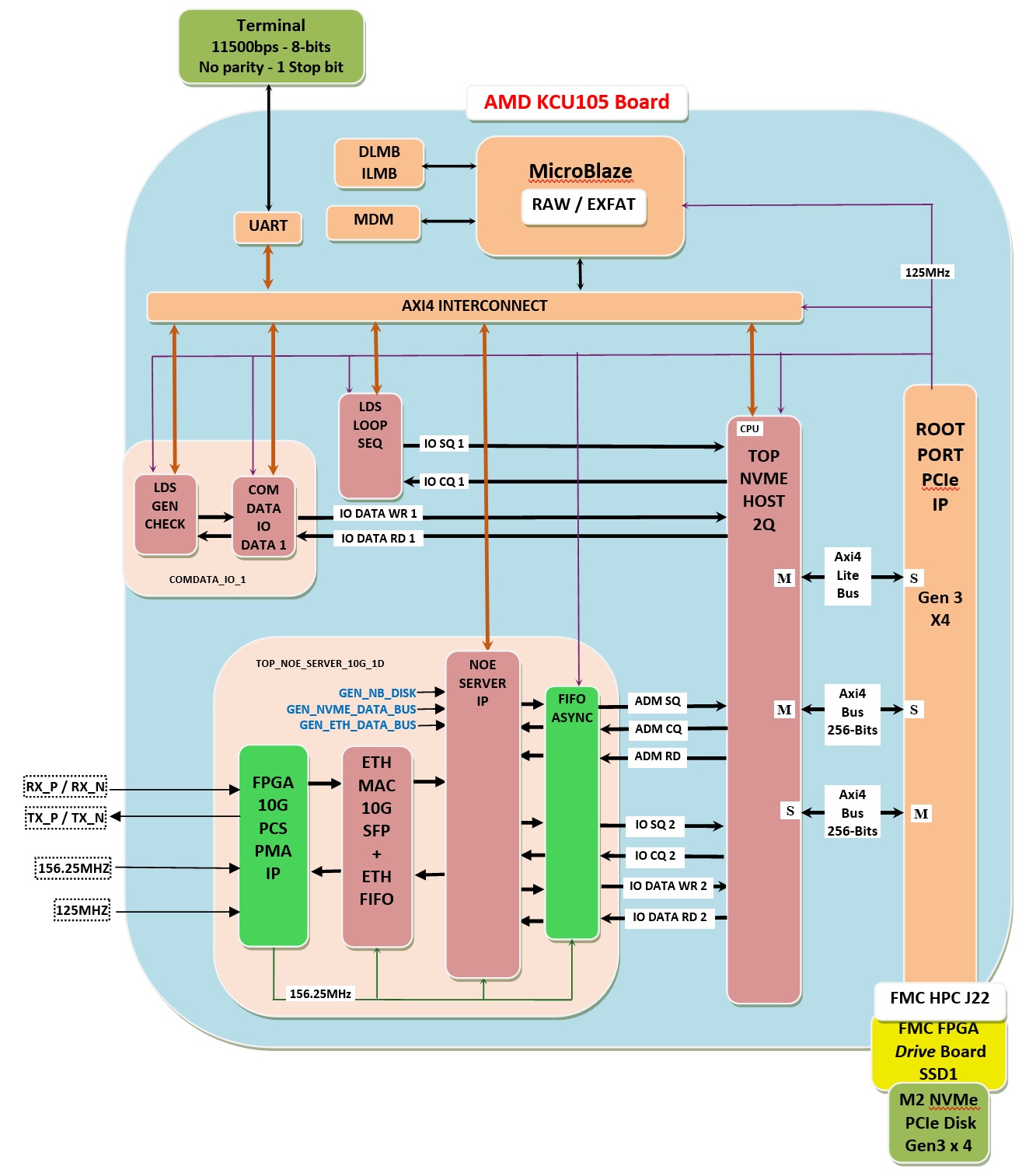

The NVMe Host IP has been configured in two Queues :
- The first Queue receives the user flow data to write to the disk or to read from the disk.
- The second Queue is connected to the NOE SAN IP, which enable the user to be connected to the disk through ethernet to a PC. This Ethernet link enables the user to read the disk in the same time the user data flow is written to the disk as well.
The demo runs at 125MHz/256-Bits and its goal is to check performance during long transfer.
- You can run a write and read performance test through a User Interface on the Hyper Terminal, please have a look on the demo documentation for details.
- EXFAT is available as an option and support RAID0.
- In any case, the C source code is provided which enables the user to modify it to fit its project requirement.
The source code format is available for ease of customisation. The customisation can be done by Logic Design Solutions and DO254 documentation is available on request.
This IP can be customised according to specific needs (application-specific requirement). Any other pre-designed functions can be integrated into the FPGA. FPGA density and I/O requirements can be defined according to customer specification.
