Description

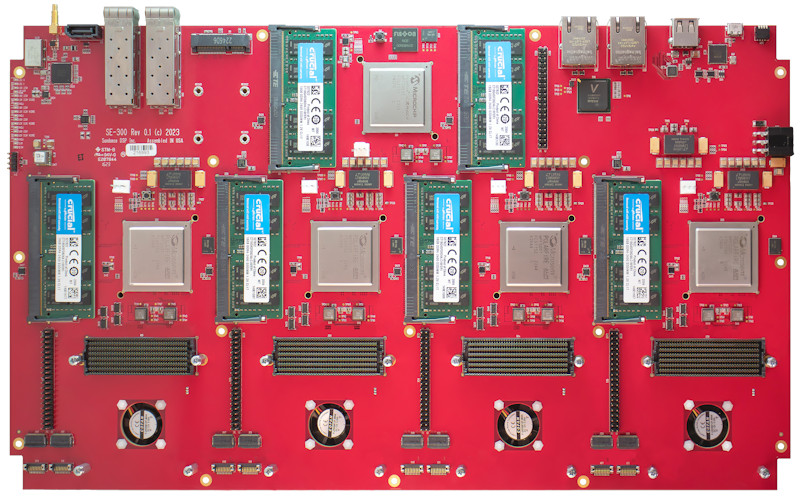

SE300 is a multi purpose embedded multi-FPGA solution with flexible clocking and 4 FMC+ interfaces. It can be a scalable MIMO solution populated with ADC and DAC FMC+ modules like Sundance DSP FMCP-ADC3p0 and FMCP-DAC12p0. It has the capability of capturing/processing data over long distances using the Firefly(c) from Samtec.

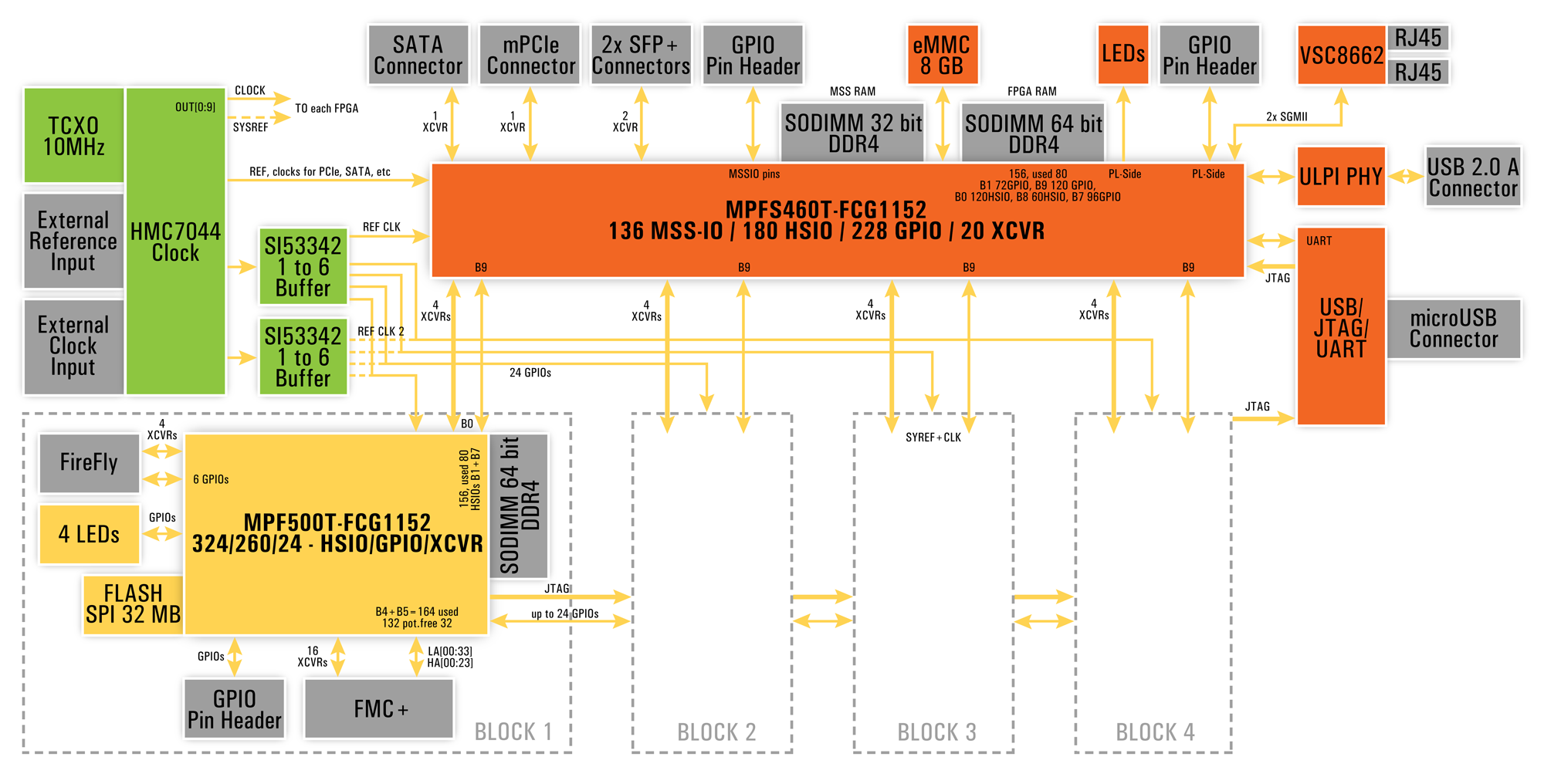

SE300 has a PolarFire SoC MPFS460T-FCG1152 as the central unit and 4 Polarfire FPGAs (MPF500T-FCG1152) as FMC+ controllers. Also, there is a flexible clock tree with JESD204B capable of inter-chip synchronization, which allows the creation of coherent systems with 4 FMC+ mezzanine cards.
PolarFire MPSOC is an FPGA + RISC-V processor. PolarFire SOC has a 5-core RISC-V processor (PS part) and programmable Logic (PL) resources.

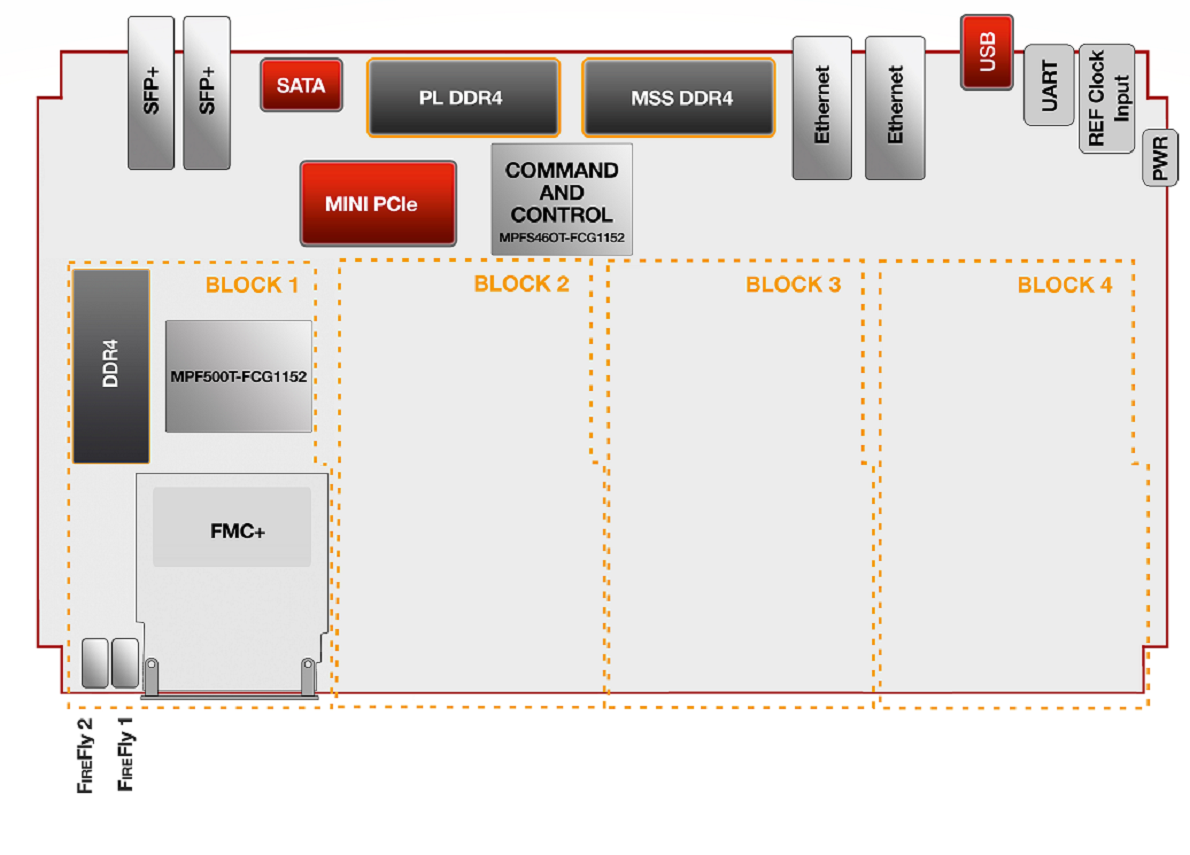

The board offers the following main interfaces:
- SODIMM 260 pin connector, with a 32-bit interface for the PS part;
- SODIMM 260 pin connector, with a 64-bit interface for the PL part;
- 32MB SPI Serial FLASH for storing boot image;
- 8GByte of eMMC storage for various purposes;
- Two RJ45 with 100/1000BASE-T interfaces;
- USB 2.0 HOST interface, for user purposes;
- Two SFP+ connectors;
- Full or Half-size mPCIe connector with PCIe x1 interface;
- SATA connector, with SATA 3.0 interface;
- 16 XCVRs routed to slave units, 4 XCVR each;
- Star topology low-speed LVDS connections to each unit, 4 pairs to each unit*;
- User LEDs;
