Description
The SMT-FMC510L is an FMC module with a low pin count connector (LPC). It is primarily designed to attach to the EMC2-DP FMC PCIe104 carrier board and provide analogue video and serial interfaces. Connectivity is via BNC connectors on the main FMC PCB, BNC connectors on an adaptor PCB, and two 20-way latching DIL pin headers. The adapter PCB is optional and only required if interfaces other than analogue video are needed.
The following interfaces are provided on the main FMC module:
- BNC connector carrying analogue video out.
- BNC connector carrying analogue video in (optional).
- LSHM connector carrying:
- One analogue video output
- One analogue video input
- 10 pairs of full-duplex RS422
The following are the interfaces presented to additional connectors when using the adapter PCB:
- BNC connector carrying analogue video out.
- BNC connector carrying analogue video in (optional).
- 2 x 20-way connectors with 10 full-duplex RS422 channels.4.2.1 Mechanical Interface

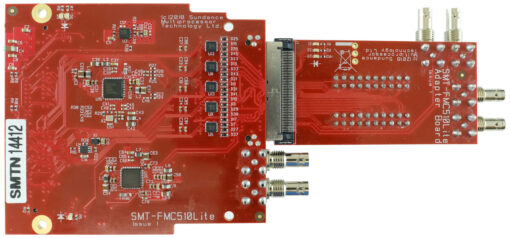

The FMC module’s front panel has two HD-BNC connectors (for analogue video), and a high-density Samtec connector (LSHM-150-01-L-RH-A-S-K-TR).
The adapter PCB has two HD-BNC connectors (for analogue video output), and two standard 2×10 0.1” pitch latching pin headers.

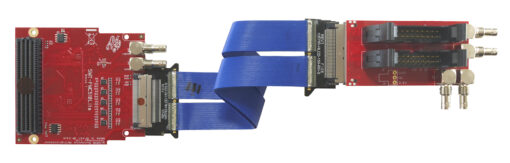

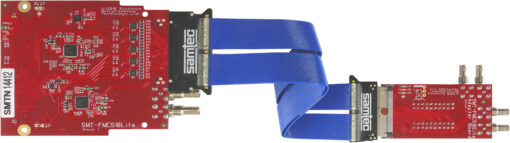

A cable may be used between the main and adapter PCBs if the adapter PCB needs to be located away from the FMC module.
