Solar Express 216

PCIE CARRIER FOR POLARFIRE BASED SOM3 MODULE



CONTACT US FOR A QUOTE
Category:

Description

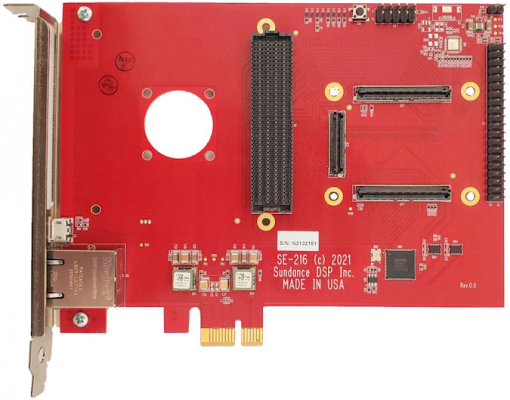

SE216 is a PCIe development board for SOM3 module . It is a simpler version of SE215 carrier and offers X1 Gen2 PCIe interface. It includesUSB JTAG and UART, through a micro USB connector. The card provides Power GOOD and user LEDs for rapid debugging. A Low Pin Count (LPC) FMC site is also available. The board has external 12V power input connector so it can be used as an embedded / desk top solution. TJ45 and IO header pins are also onboard.

Features

  • Slot for SoM3-MPFxxxT module (MPF300T-1FCVG484 FPGA)
  • USB – JTAG and USB – UART bridge via FT4232H IC, connector – micro USB;
  • FMC LPC Vita 57.1 connector for functional extension, with ten gigabit lane;
  • FMC VADJ supported 1.2V, 1.8V, 2.5V;
  • RJ45 connector for 100/1000Mbit Ethernet connection*;
  • PCIe x1 Gen 2 EP for communication with PC,
  • Three LEDs for power GOOD;
  • Five User LEDs for debug purposes;
  • Two user button and four dip switches;
  • 12V input power connector;
  • Temperature range, 0°C to +100°C;
  • Maximal power consumption, including FMC LPC, is 15W;

Applications

  • Defence
  • Control
  • Instrumentation and testing
  • Embedded and Indsutrial

Block Diagram

IP Cores / Drivers / BSP

Example Libero project and confidence test application will be provided, including driver from Microchip.

Ordering Information

SE216   the carrier card without the SOM3 module

SE216-eval   SE216 + SOM3-MPF300T
