STEMlab 125-14 PRO Z7020 Gen 2 Starter Kit
STEMlab 125-14 PRO Z7020 Gen 2 Starter Kit - Image 2
STEMlab 125-14 PRO Z7020 Gen 2 Starter Kit - Image 3
STEMlab 125-14 PRO Z7020 Gen 2 Starter Kit - Image 4

STEMlab 125-14 PRO Z7020 Gen 2 Starter Kit

£800.00

Introducing the Red Pitaya STEMlab 125-14 PRO Z7020 Gen 2 Starter Kit, a next-generation all-in-one measurement and control solution built for high-performance applications. Designed for engineers, researchers, and industry professionals, this kit combines powerful hardware with precision measurement tools in one compact device.

The Gen 2 PRO Z7020 board features a Zynq 7020 SoC, 1 GB RAM, and significantly improved analog front- and back-ends for ultra-low noise performance. With the new redesigned and improved front-end, reduced crosstalk, USB-C connectivity, and support for multi-channel synchronization, it sets a new standard in software-defined instrumentation.

Whether you’re developing cutting-edge RF systems, working on quantum or photonics research, or implementing real-time industrial monitoring, the STEMlab 125-14 PRO Z7020 Gen 2 Starter Kit delivers unmatched flexibility and measurement accuracy right out of the box.

Category:

Description



The STEMlab 125-14 PRO Z7020 Gen 2 is built on the trusted legacy of the original STEMlab 125-14 board, but completely re-engineered to meet the demands of modern industry and research. Designed for applications that require exceptional signal fidelity, low noise, and multi-channel synchronization, this board is ideal for aerospace, quantum, photonics, RF, and automated industrial systems.

Powered by a Zynq 7020 SoC with 1 GB of RAM, the Gen 2 PRO Z7020 offers improved analog front- and back-ends, lower jitter and latency, and a high SFDR of 50 dB. It also supports internal and external clock switching and enables multi-device synchronization through USB-C or Red Pitaya Click Shields. The E3 connector opens up high-speed differential GPIO access and advanced boot options (eMMC, QSPI).

The included software suite features intuitive, web-based measurement tools such as an oscilloscope, signal generator, spectrum analyzer, and more. With support for Python, MATLAB, LabVIEW, and C, the Gen 2 PRO Z7020 integrates effortlessly into advanced testing workflows and automation systems.

Key features

  • Ultra-low noise, high-fidelity analog front-end
  • Zynq 7020 SoC with dual-core ARM Cortex-A9 and 1 GB DDR
  • 2 × 125MSPS 14-bit analog inputs and 2 × 14-bit outputs
  • Crisp 50 Ω output impedance and improved crosstalk (70 dB up to 30 MHz)
  • High SFDR: 50 dB @ 10 MHz, 10 dBm
  • Internal/external clock switching with CLK_SEL pin
  • E3 connector with 8 differential pairs and boot extension options
  • USB-C connectivity for power, serial, USB, and synchronization
  • Remote access via web interface over Ethernet
  • Compatible with Python, MATLAB, LabVIEW, and more
  • Free, open-source software and web apps
  • Supports synchronization of multiple devices for multi-channel setups
  • Reliable operation without voltage glitches on startup
  • OEM variant available for custom integration

What’s in the box

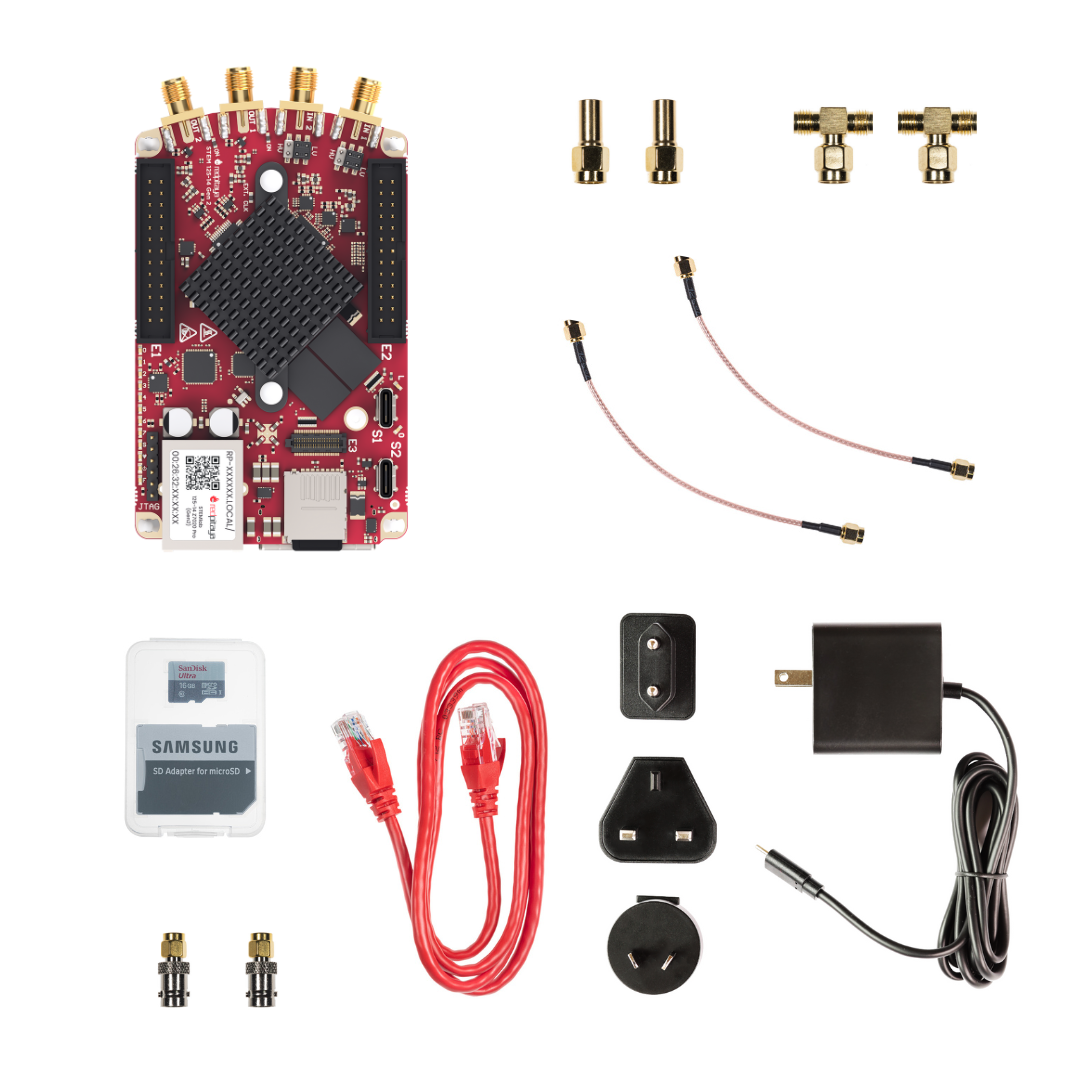

  • Red Pitaya STEMlab 125-14 PRO Z7020 Gen 2 digitizer board

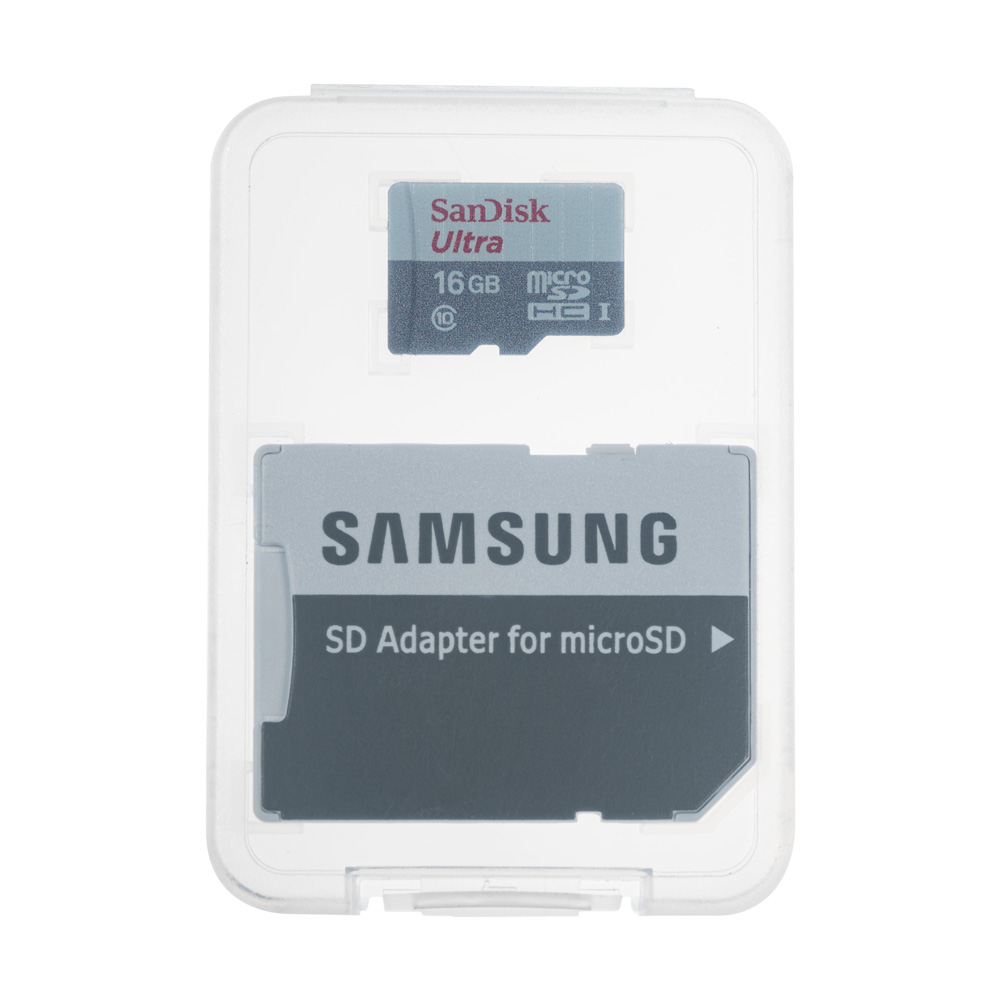

  • MicroSD card (with OS image pre-installed)
  • 5V 5A USB type-C power supply

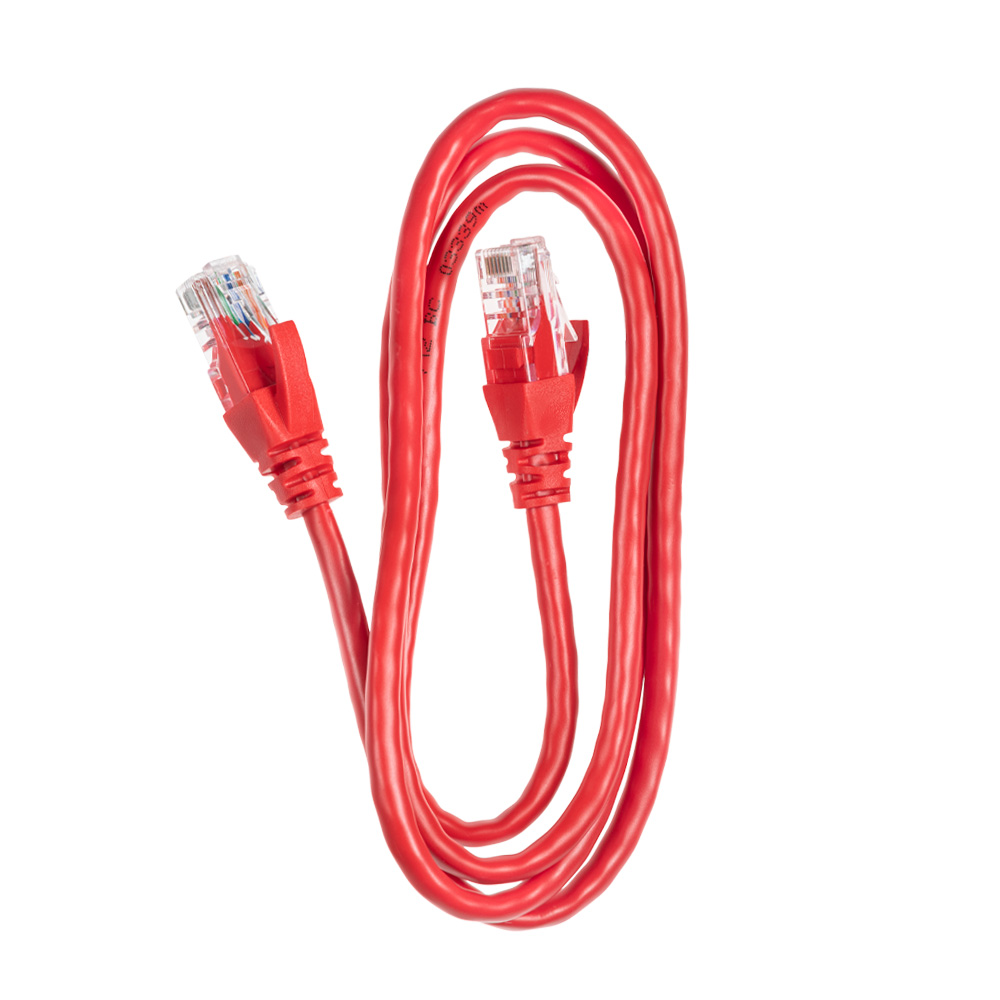

  • Ethernet cable
  • 2 × SMA-BNC adapters
  • 2x 50 ohm termination
  • 2x SMA T adapter
  • 2 x SMA Cable
