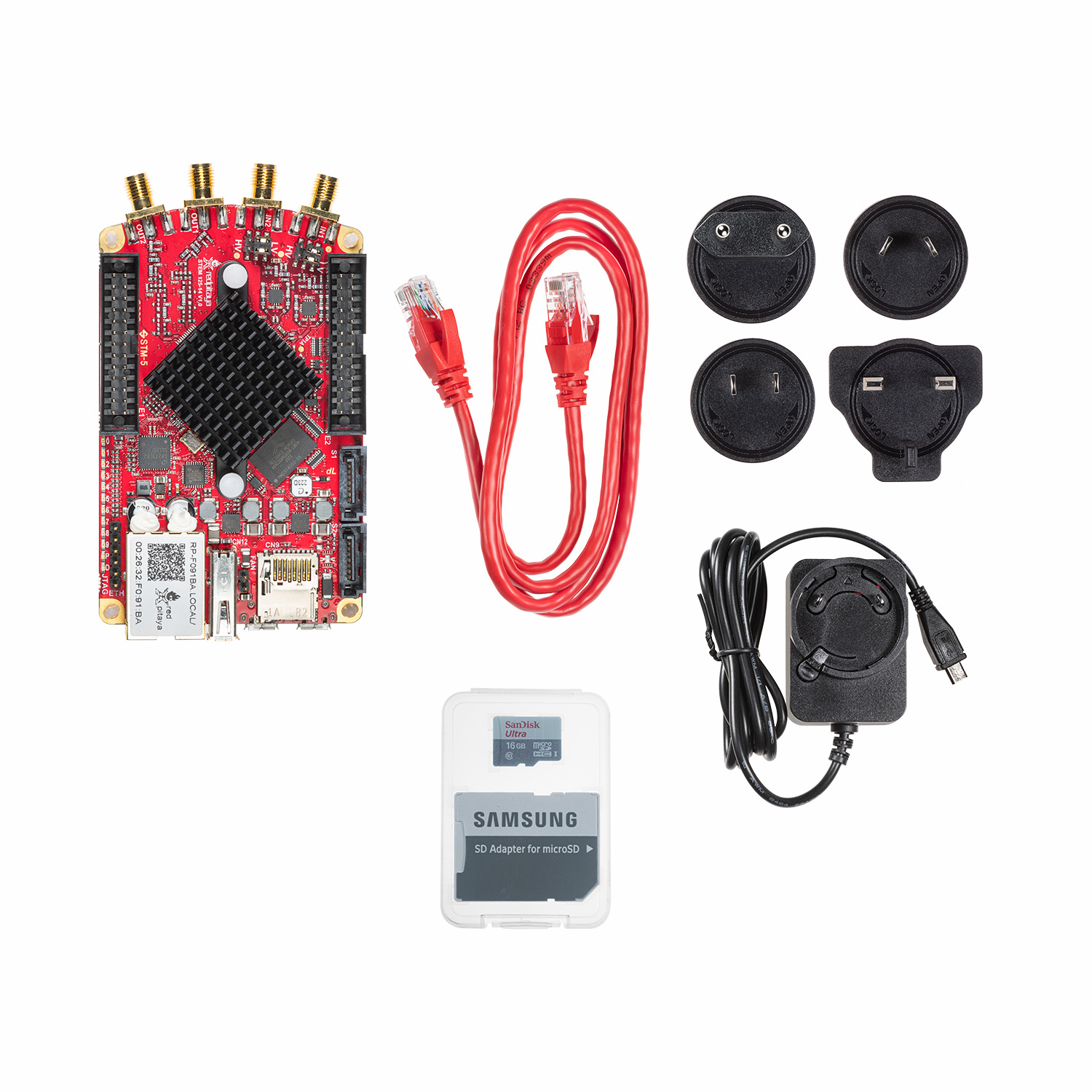

STEMlab 125-14 Starter Kit







Red Pitaya’s IZD0007 kit with a 50 MHz frequency range is ideal for hobbyists, DIY engineers, makers, and industrial engineers.





 STEMlab 125-14 Datasheet



Category:

Description

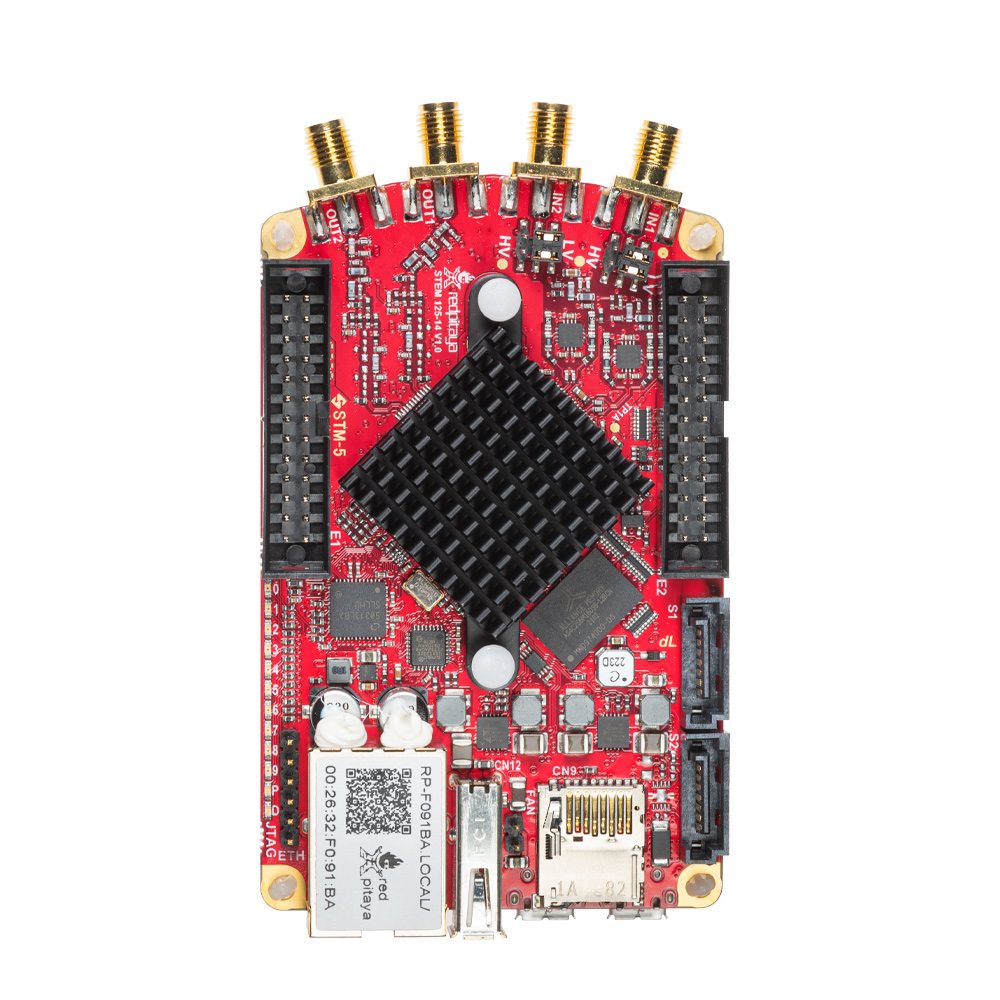

STEMlab 125-14 is our most versatile and popular product, which was introduced to the market in 2013 when Red Pitaya was established. Since then it has been used in wide variety of contexts, from hobbyists and ham radio operators to industry, research and space applications.

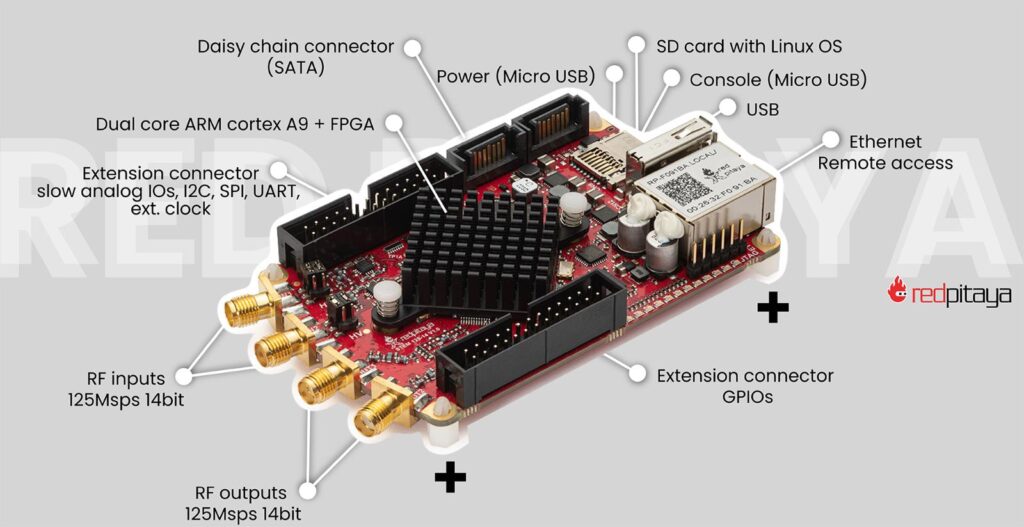

It has two 125Msps 14-bit inputs and two 14-bit outputs, Xilinx Zynq 7010 FPGA and offers remote access, with an online app user interface accessible through Ethernet or Wi-Fi.

Key features:

  • Credit-card sized RF signal acquisition and generation platform
  • Ethernet connectivity
  • Xilinx SoC (CPU & FPGA)
  • Two fast analog inputs and two outputs
  • Possibility of integration into own system/product
  • Open software source code available
  • Works with Linux or Windows PC
  • Can be used as an oscilloscope & signal generator, spectrum, Bode analyzer, logic analyzer, LCR meter*, streaming, SDR, or vector network analyzer*
  • Can be controlled remotely using LabVIEW, MATLAB, Python, or Scilab
  • Can be re-programmed to meet custom needs
  • Supported by an app marketplace with several free apps available

* Requires an extension module.



Specifications



Basic

Processor:   Dual-Core ARM Cortex-A9 MPCore

FPGA:   Xilinx Zynq 7010

RAM:   512MB (4Gb)

System memory:   Micro SD up to 32GB



Connectivity

Ethernet:  1 Gbit

USB:   USB 2.0

WI-FI:   Using Wi-Fi dongle



RF inputs

Channels:   2

Sample rate:   125MS/s

ADC resolution:   14bit

Full scale voltage range:   +-1V / +-20V

Input coupling:   DC

Bandwidth:   DC-60MHz

Input impedance:   1Mohm



RF outputs

Channels:   2

Sample rate:   125MS/s

DAC resolution:   14 bit

Full scale voltage range:   +-1V

Load impedance:   50 ohm

Shortcut protection:   Yes

Typical rising/falling time:   2V / 10ns

Bandwidth:   DC – 50MHz



Extension connector

Digital IOs:   16

Analog inputs:   4 channels 0-3.5V 12bit

Analog outputs:   4 channels 0-1.8V 12bit

Communication interfaces:   I2C, UART, SPI

Available voltages:   +5V, +3.3V, -4V



Synchronisation

Trigger input:   through extension connector

Daisy chain connection:   over SATA connection

Ref. clock input:   N/A



Applications



  • Automated testing
  • Portable test and measurement tool
  • Multi-channel data acquisition
  • Lock-in amplifiers
  • OEM DAQ device
  • Radars
  • Quantum computing experiments
  • Space and military RF applications
  • Skimmer server
  • Reverse beacon network (RBN)
