TE0820-04-5DI21MA

£760.00

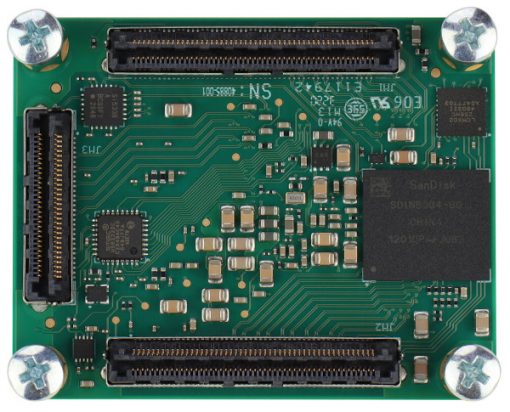

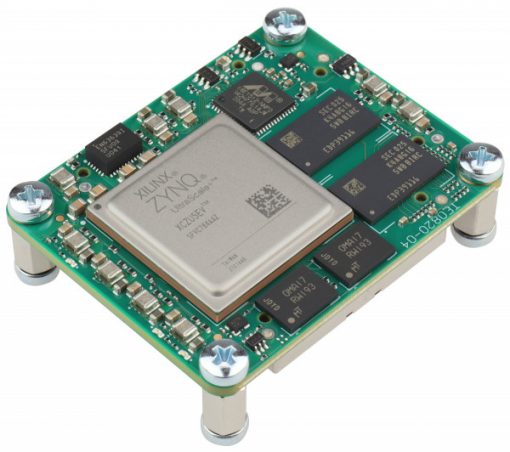

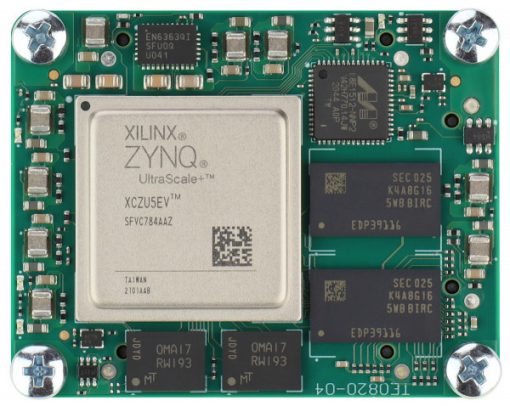

Trenz Electronic SOM MPSoC Module

  • Xilinx Zynq UltraScale+ ZU5EV-1I
  • 2 GByte DDR4 SDRAM
  • 4 x 5 cm

1 in stock

Categories: , ,

Description

The Trenz Electronic TE0820 is a powerful 4 x 5 cm industrial/extended module integrated with a Xilinx Zynq UltraScale+ MPSoC. In addition, the module is equipped with 2x 8 Gb DDR4 SDRAM chip, up to 64 Gb eMMC chip,  2x 512 Mb flash memory for configuration and data storage, as well as powerful switching power supplies for all required voltages. The module is equipped with a Lattice Mach XO2 CPLD for system controlling. 3x Robust high-speed connectors provide a large number of inputs and outputs. Additionally the module provides Gigabit Ethernet and USB2.0 Transceivers. The highly integrated modules are smaller than a credit card and are offered in several variants at an affordable price-performance ratio. Modules with a 4 x 5 cm form factor are completely mechanically and largely electrically compatible with each other. All components cover at least the industrial temperature range. The temperature range in which the module can be used depends on the customer design and the selected cooling.

Features

  • SoC/FPGA
    • Package: SFVC784
    • Device: ZU2 …ZU5, *
    • Engine:  EG, CG, EV, *
    • Speed: -1, -1L, -2, -2L, 3, *, **
    • Temperature: I, E, *, **
  • RAM/Storage
    • 2x  DDR4 SDRAM,
      • Data Width: 16 Bit
      • Size: 8 Gb, *
      • Speed: 2400 Mbps, ***
    • 2x QSPI boot Flash in dual parallel mode
      • Data Width: 8 Bit
      • Size: 512 Mb Gb, *
    • 1x e.MMC Memory
      • Data Width: 16 Bit
      • Size: 8 Gb, *
    • MAC address serial EEPROM
  • On Board
    • Lattice MachXO2 CPLD
    • Programmable Clock Generator
    • Hi-speed USB2 ULPI Transceiver
    • 4x LEDS
  • Interface
    • 1 Gbps RGMII Ethernet interface
    • Hi-speed USB2 ULPI transceiver with full OTG support
    • Graphic Processor Mali-400 MP2, *
    • 156 x High Performance (HP) und 96 x High Density PL I/Os
    • 4 x serial PS GTR transceivers
      • PCI Express interface
      • SATA 3.1 interface
      • DisplayPort interface with video resolution up to 4k x 2k
      • 2x USB 3.0 specification compliant interface implementing a 5 Gbit/s line rate
  • Power
    • All power regulators on board
  • Dimension
    • 40 x 50 mm
  • Note
    • * depends on assembly version
    • ** also non low power assembly options possible
    • *** depends on used U+ Zynq and DDR4 combination
    • Rugged for shock and high vibration
