TE0823-01-3PIU1FA

£645.00

Trenz Electronic SOM MPSoC Module

  • Xilinx Zynq UltraScale+ 3CG-L1I
  • 1 GByte LPDDR4
  • 4 x 5 cm

1 in stock

Category:

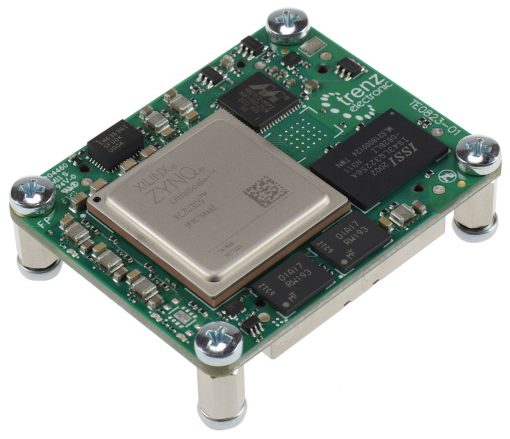

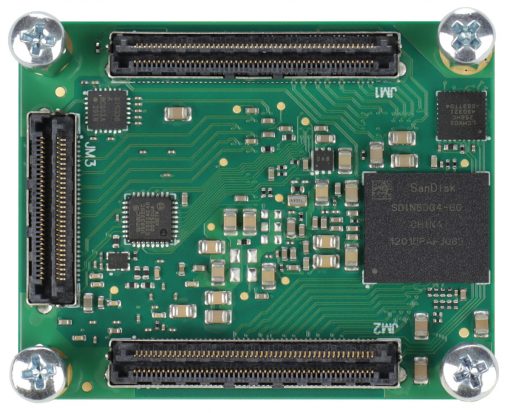

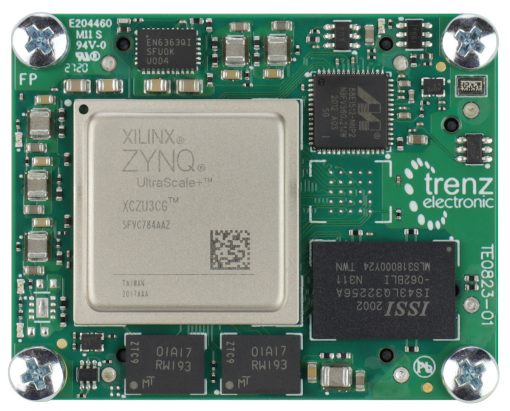

The Trenz Electronic TE0823 3PIU1FA is an industrial-grade MPSoC module integrating a low power Xilinx Zynq UltraScale+ MPSoC, 1 GByte LPDDR4 SDRAM, 8 GB eMMC chip, 2x 64 MB Flash memory for configuration and operation, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O's is provided via rugged high-speed stacking connections. The module is equipped with a Lattice Mach XO2 CPLD for system controlling. 3x Robust high-speed connectors provide a large number of inputs and outputs.

The highly integrated modules are smaller than a credit card and are offered in several variants at an affordable price-performance ratio. Modules with a 4 x 5 cm form factor are completely mechanically and largely electrically compatible with each other.

All parts are at least industrial temperature range. The module operating temperature range depends on customer design and cooling solution.

Features

  • SoC/FPGA
    • Package: SFVC784, SFRC784
    • Device: ZU2 …ZU5, *
    • Engine:  EG, CG, EV, *
    • Speed: -1, -1L, -2, -2L, 3, *, **
    • Temperature: I, E, *, **
  • RAM/Storage
    • 2x  DDR4 SDRAM,
      • Data Width: 32 Bit
      • Size: 16 Gb, *
      • Speed: 3733 Mbps, ***
    • 2x QSPI boot Flash in dual parallel mode
      • Data Width: 8 Bit
      • Size: 512 Mb Gb, *
    • 1x e.MMC Memory
      • Data Width: 8 Bit
      • Size: 32 Gb, *
    • MAC address serial EEPROM
  • On Board
    • Lattice MachXO2 CPLD
    • Programmable Clock Generator
    • Hi-speed USB2 ULPI Transceiver
    • 4x LEDS
  • Interface
    • 1x GB/s serial GMII interface
    • 1x Hi-speed USB2 ULPI transceiver with full OTG support
    • 154 x High Performance (HP) und 96 x High Density (HD) I/Os
    • 78 x PS MIOs
    • 4 x serial PS GTR transceivers
      • PCI Express interface version 2.1 compliant
      • SATA 3.1 specification compliant interface
      • DisplayPort source-only interface with video resolution up to 4k x 2k
      • USB 3.0 specification compliant interface implementing a 5 Gbit/s line rate
  • Power
    • All power regulators on board
  • Dimension
    • 40 x 50 mm
  • Note
    • * depends on assembly version
    • ** also non low power assembly options possible
    • *** depends on used U+ Zynq and DDR4 combination
    • Rugged for shock and high vibration

Block diagram
