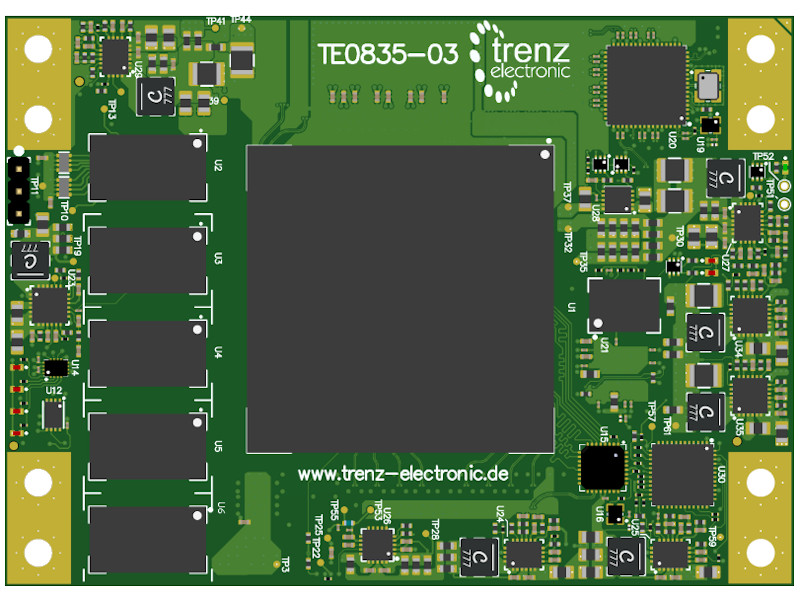

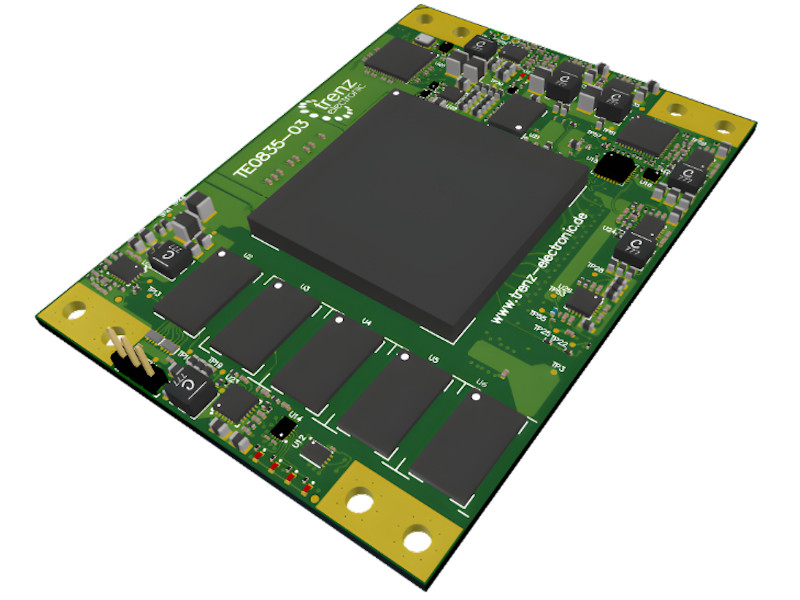

Description
Key Features
B2B Connectors
- 2x Samtec ADM6 B2B connectors
AMD Zynq UltraScale+ RFSoCs XCZU25DR-1FFVE1156E
- FVE1156E possible variants: ZU25DR, ZU27DR, ZU28DR, ZU42DR, ZU43DR, ZU47DR, ZU48DR
- Speed Grade: -1, -2
- Temperature: E, I*
RF:
- 8x ADC (12-bit RF-ADC)
- 8x DAC (14-bit RF-DAC)
IO resources:
- Transceivers 8 PL-GTY, 4 PS-GTR
- MIO: 33x SE
- HP: 48x SE / 24x DIFF
- HD: 20x SE / 10x DIFF
Clock source:
- Programmable Clock Generator PLL SI5395A-A-GM
Memory:
- DDR4 4GByte
- Dual QSPI 128MByte
- I2C MAC EEPROM 2Kbit
ON-Board periphery
- USB2.0 PHY
- Gigabit Ethernet PHY
- TPM chip
- FPGA System Oscillator
- 4x USER LED
System controller:
- CPLD LCMXO2-640HC-4SG48I
Size:
- 90.0 mm x 65 mm
5…12V Input Supply Voltage
