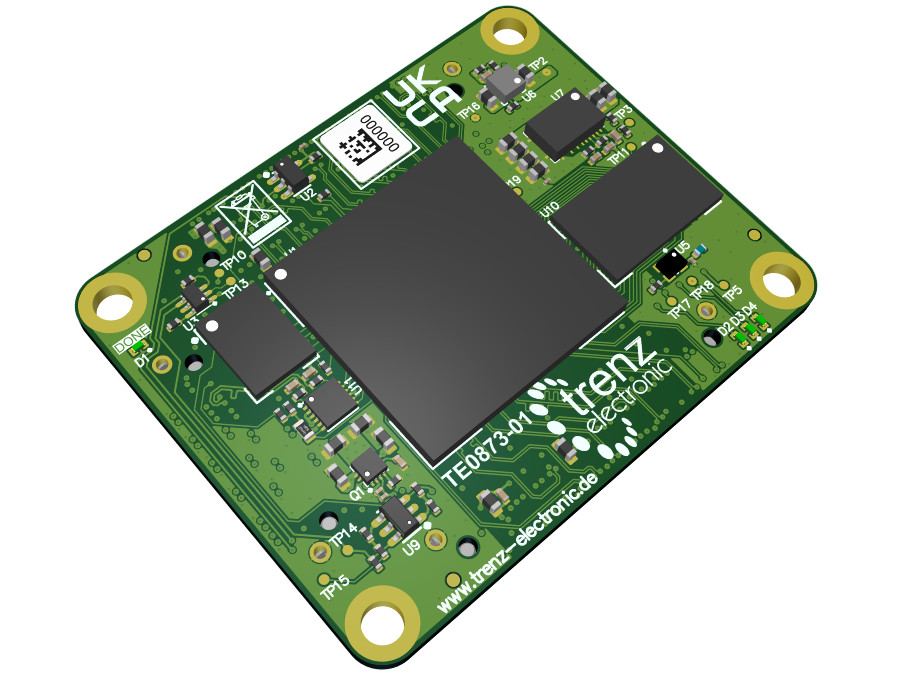

Description
Key Features
Main FPGA:
- AMD Spartan Ultrascale+ XCSU35P, SBVB625 package.
- Optional: SU10P, SU25P, SU50P (for 21.01.2026 SU50P doesn’t exist)
Memory:
- QSPI Flash 256Mbit
- SDRAM 512Mb
- EEPROM 128K
IO resources:
- PL IO 50 SE 24 diff (B47 HP) + 8/3 (B45 HD) + 42/21 (B65 HD) + 20/10 (B66 HD) + 40/20 (B67 HD)+ 18/9 (B68 HD)
ON-Board Peripherals:
- 1x USB to UART bridge
- 1x 100 MHz Clock generator
- 3x user LEDs + 1x Done LED
- B2B Connectors: 3x Samtec LSHM
Dimension:
- Size 40mm x 50mm
Power:
- Power Supply: Single 3.3V or Dual 3.3/5V
