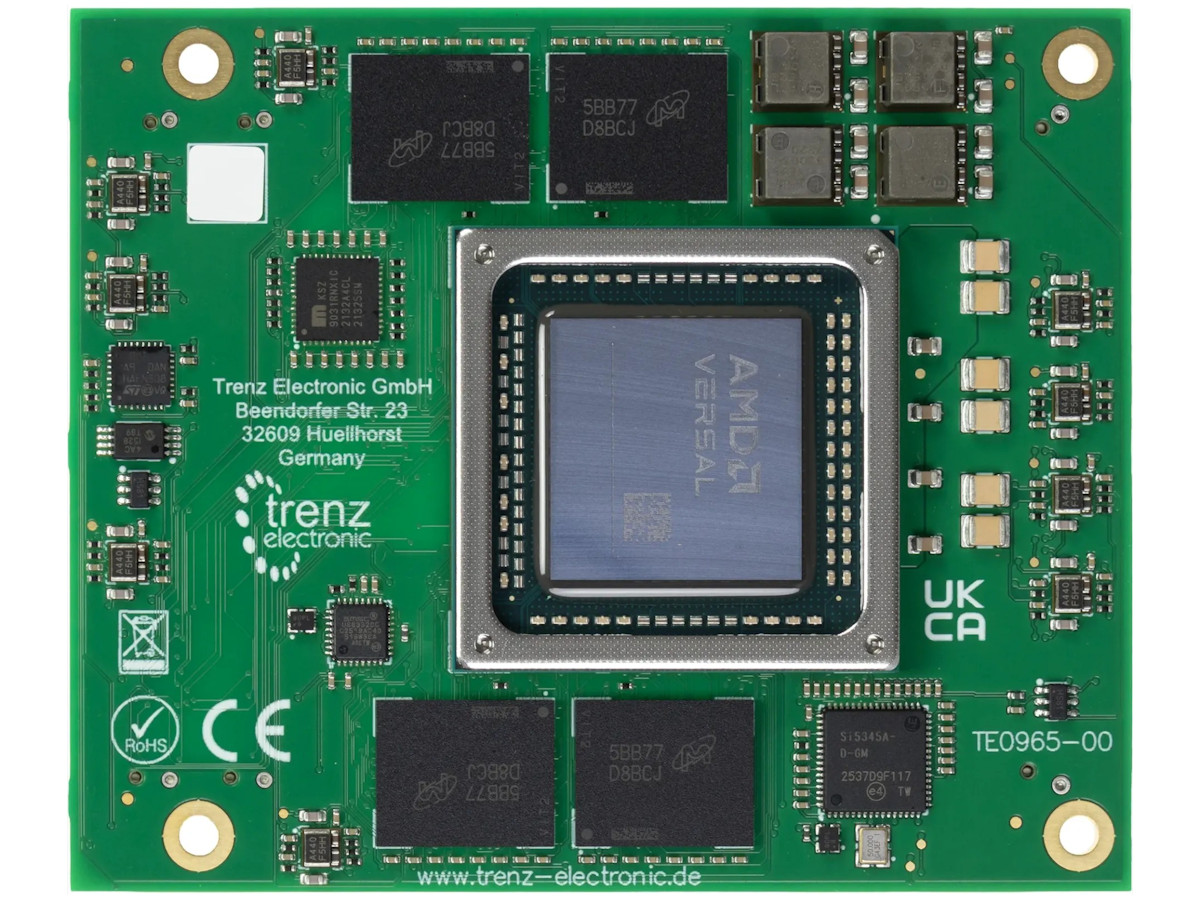

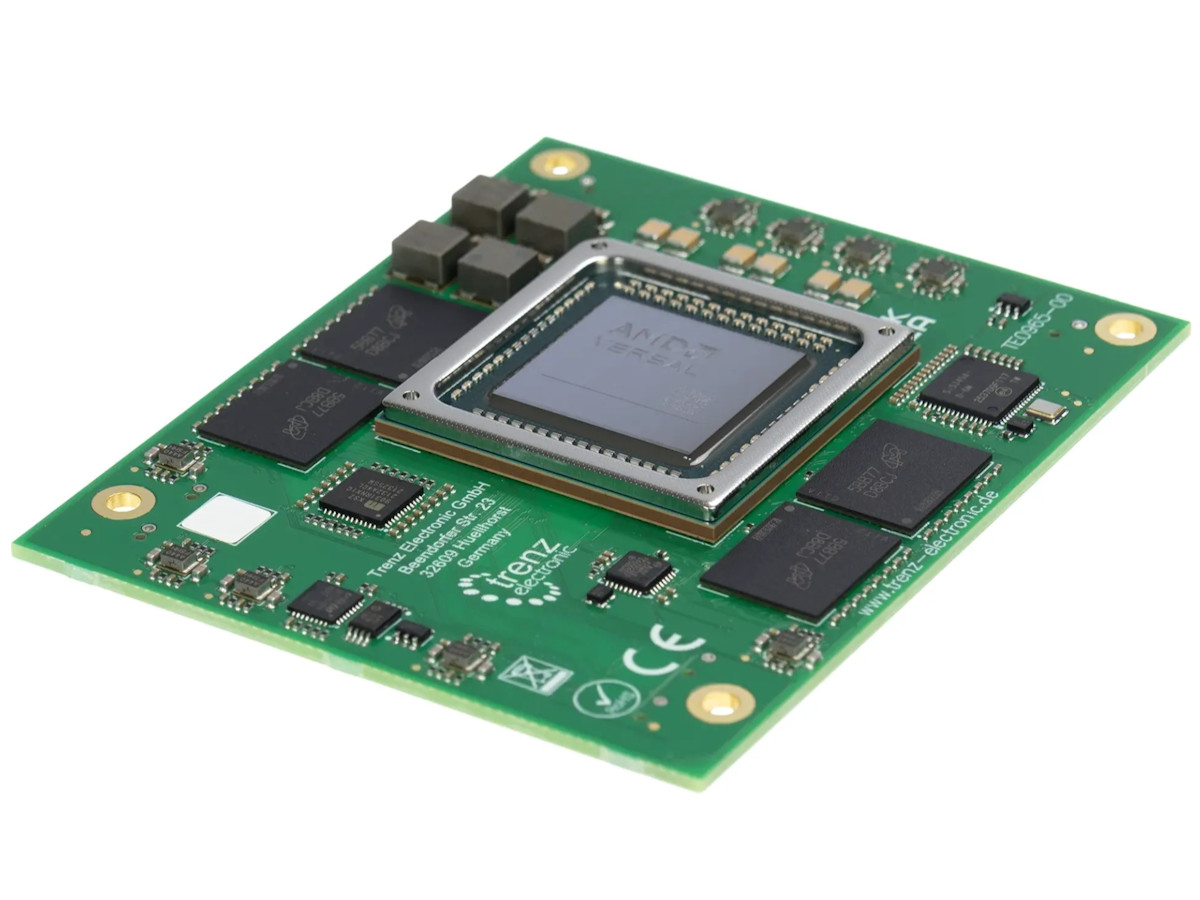

Description
Key Features
- SoC
- AMD Versal AI Edge Gen 2: SSVA2112 package
- Possible variants: SSVA2112
- RAM / Storage
- OSPI Flash
- 4x 32-bit LPDDR5
- 2x EEPROM (Ethernet MAC EEPROM + User Data EEPROM)
- On-Board Peripherals
- Ethernet PHY
- USB2.0 PHY
- 10 Output Clock Generator
- IO Resources
- PL: 20 x GTYP Transeivers + Clocks; PS: 4x GTYP Transceivers + Clocks , 4x PS-GTR Transeivers + Clocks
- X5IO: 62 diff / 114 single ended I/Os (MIPI ready)
- HDIO: 22 diff /44 single ended I/Os
- MIO (SD3.0, UART, I2C, CAN)
- Interface
- 2x Samtec ADF/ADM (320pin) B2B connectors + 1x Samtec APM6/APF6 (320pin) B2B connector
- Connector-based harmonized FPGA module: oHFM.c-L
- Power
- Single 12 V power supply
- Dimension
- 55 x 74 mm
