Description

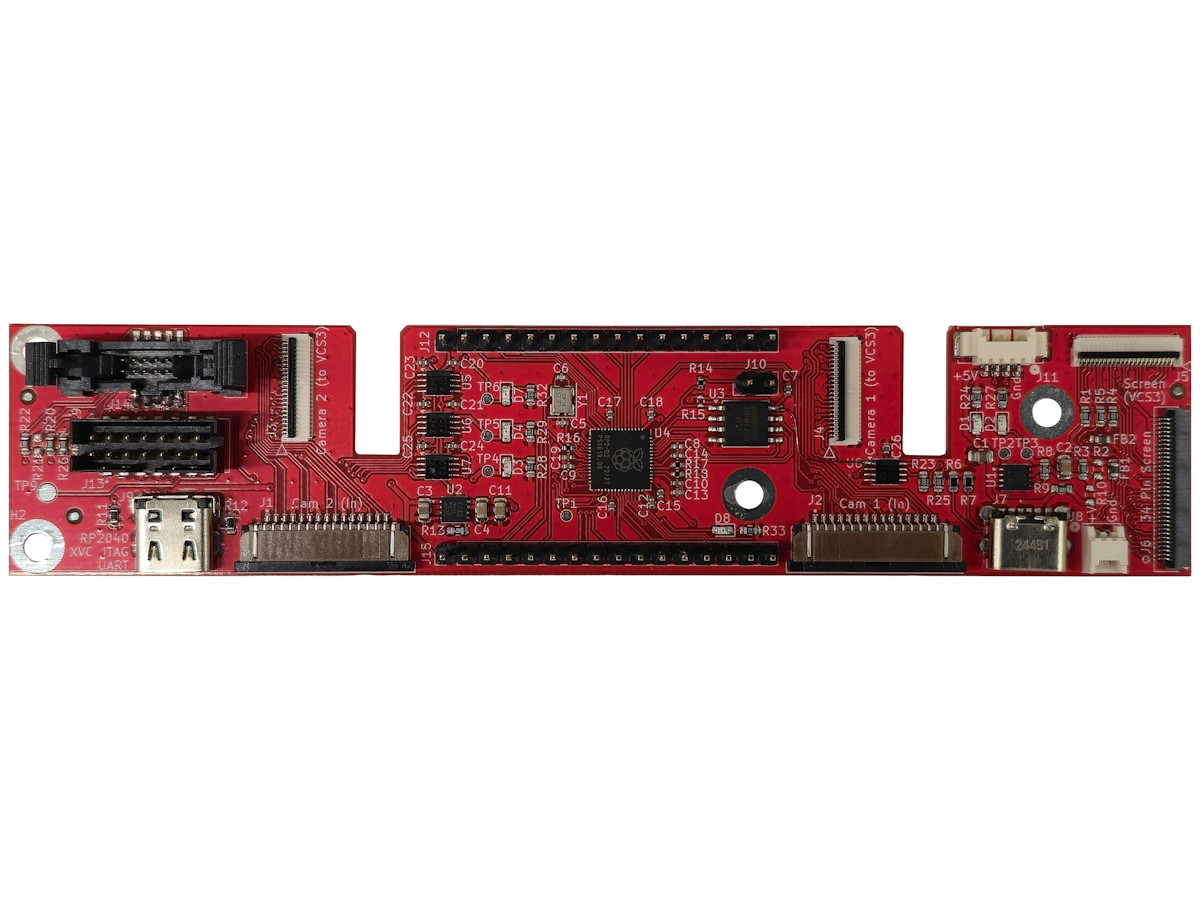

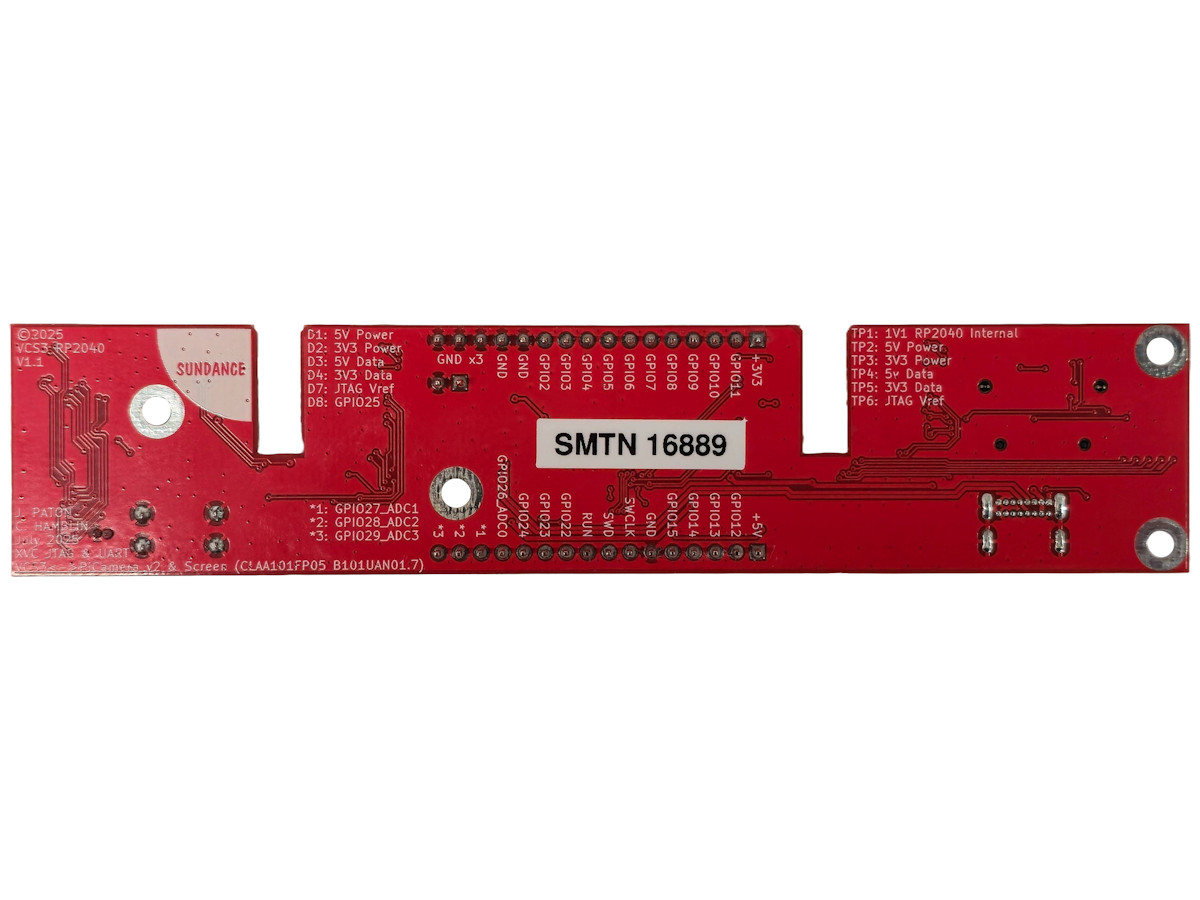

The VCS³-RP2040 I/O card is used for XVC JTAG as well as UART communication to the VCS³ module. It will come programmed with the required code to run the UART and XVC JTAG.

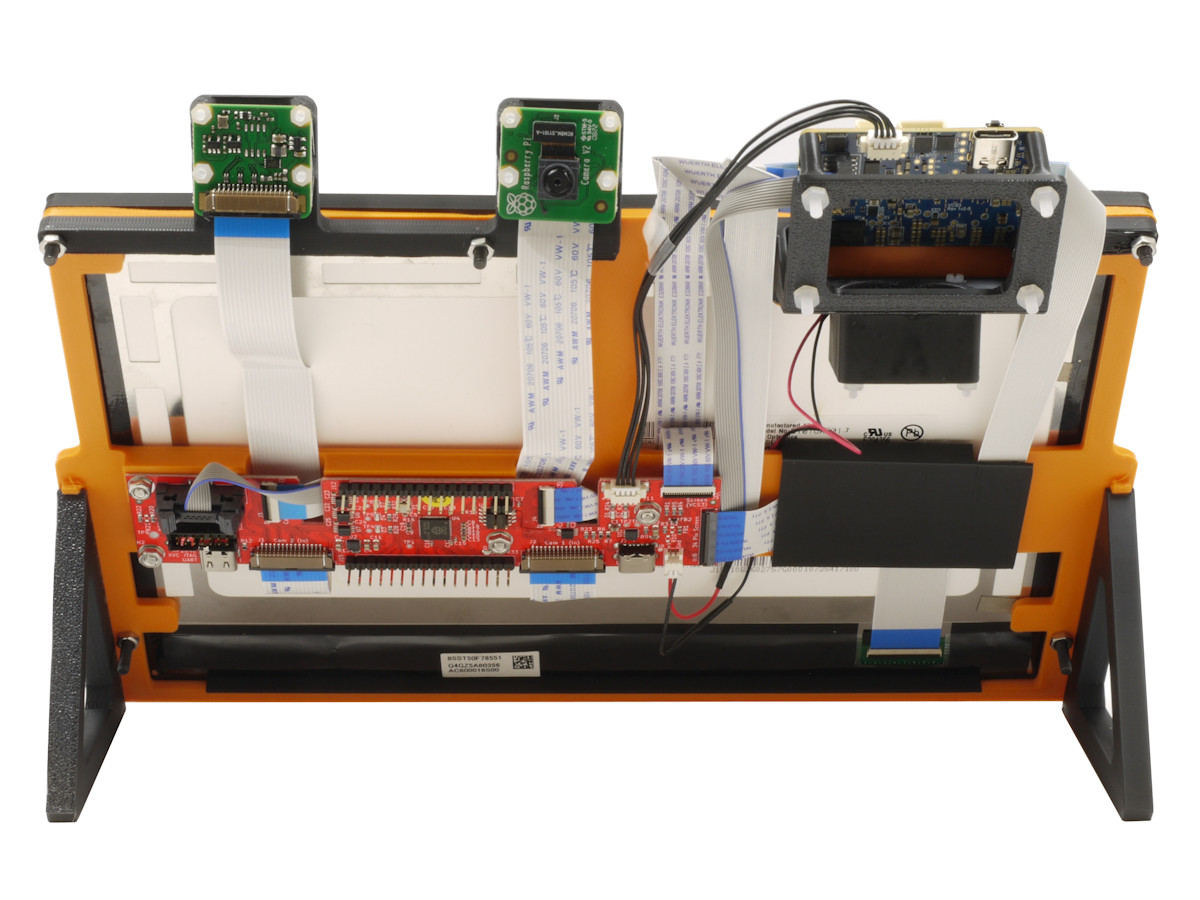

The VCS³-RP2040 has conversion between the standard 15-pin MIPI connector from the Raspberry Pi V2 cameras to the 22-pin MIPI connector used by the VCS³. It also converts the 22-pin MIPI on from the VCS³ to the 34-pin connector used by the 10.1” screen in the VCS³ 3D Kit. Extra power is supplied to power the backlight to assist the VCS³.
Features:
- XVC JTAG via USB-C.
- Comport UART with power over UART protection
- Power for the VCS³ via a USB-C without blocking the onboard USB-C Connector.
- 2x Converters for 15pin Pi cameras to 22pin MIPI for the VCS³.
- Converter from 22 pin MIPI to 34 pin DSI screen interface.
Getting Started Guide:
VCS³ 3D Kit – Getting Started Guide
Build Guide:
Schematics:
VCS3-RP2040 Schematics A small mod is required – VCS3-RP2040-V2 UART TX Buffer mod
GitHub page:
https://github.com/SundanceMultiprocessorTechnology/xvc-vcs3-rp2040
