Description

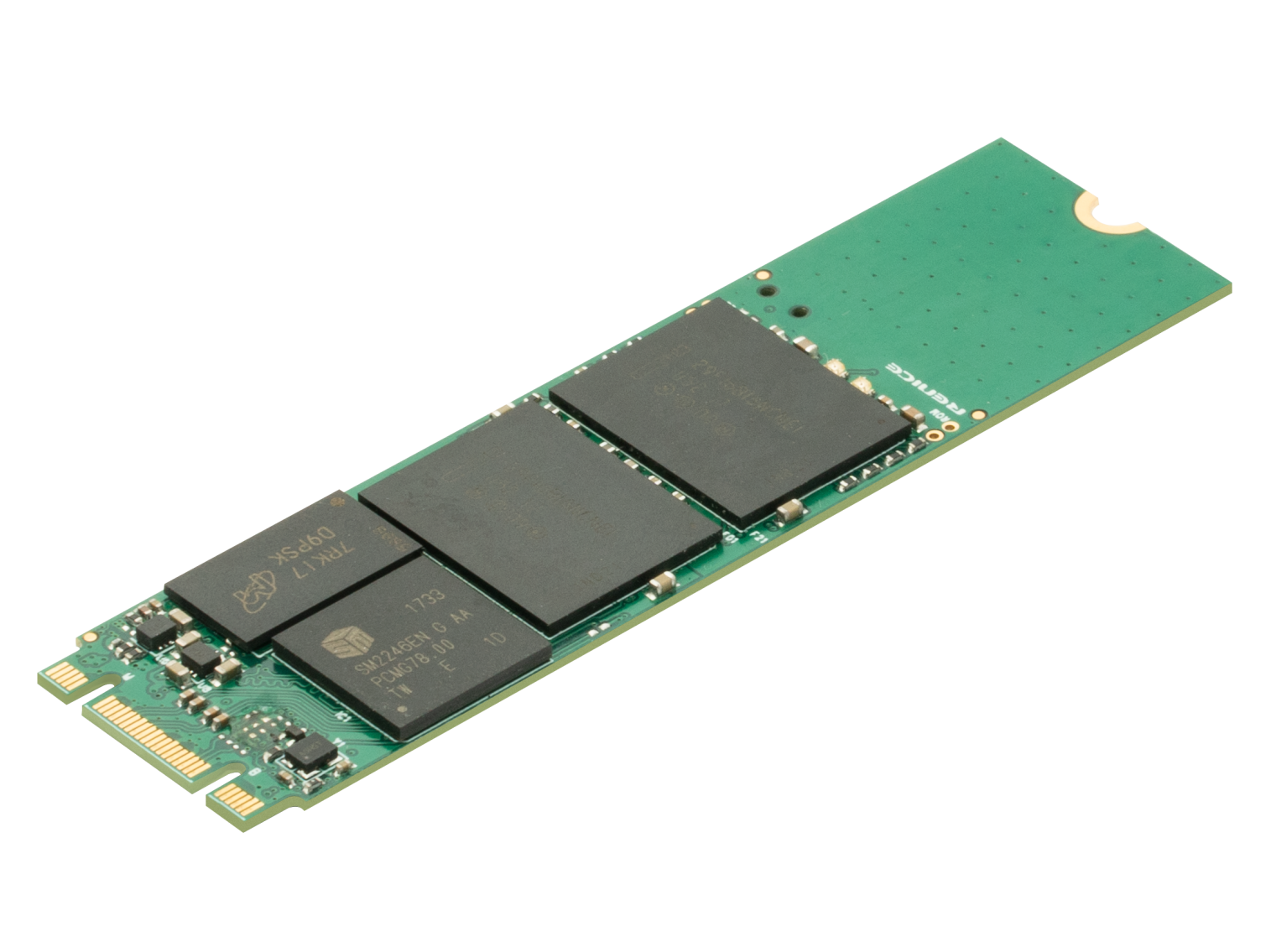

Renice X10B SSD designed as the standard M.2 form factor with PCIe interface and industrial 3D-TLC NAND Flash memory technology. Integrating high speed PCIe Gen 4×4 and NVMe 1.3 compliant, it provides low latency and excellent read/write performance.
Equipped with advanced ECC ability optimised for 3D TLC NAND, the X10B NVMe M.2 delivers capacities up to 8TB.
Features
- Interface: M.2 PCIe Gen4x4 (Compatible with PCIe Gen4x2/ PCIe Gen3x4)
- NAND Flash: 3D TLC
- Performance:
- Read: up to 3,200MB/s
- Write: up to 3,000MB/s
- Capacities:
- M.2 2280: 960GB~7680GB
- M.2 2242: 240GB~1920GB
- M.2 2230: 240GB~960GB
- Temperature Range:
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +90°C
- Operating Voltage: 3.3V±5%
- Power Consumption:
- Active mode (Typ.) <7W
- Idle mode < 1W
- High Reliability:
- Mean Time Between Failure (MTBF) > 2,000,000 hours
- Intelligent features:
- End-to-End data protection
- Dynamics and Static Wear Leveling
- Support SMART and TRIM
- Advanced bit error detection and correction optimized for 3D NAND
- Support S.M.A.R.T
- Temperatureadaptive function
- AES 256-bit encryption (on request)
- Secure Erase for quick delete (on request)
