Description

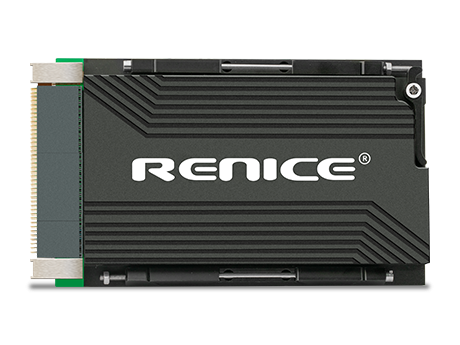

Renice 3U Open VPX storage card adopts dual-channel SATAIII protocol, built-in with Renice industrial grade SSD, and single-channel SATA sequential read and write speed is higher than 500MB/s, random read/write IOPS greater than 75,000, maximum capacity up to 4TB. 3U Open VPX storage card is a highly reliable storage solution for real-time signal acquisition, processing, storage and playback implementations, including satellite navigation and communication, radar stations, aviation, vehicle and off-site experiments. It is suitable for industrial data storage, especially for high-shock and high-vibration application environments.
Features
- HOST Interface: VPX Interface, Dual-SATAIII 6.0Gbps (Backward compatible with SATA 3.0/1.5Gbps)
- Form factor: 3U (170.6mmX100.0mmX20.83mm) L×W×H
- Connector: VPXP0,P1,P2
- Performance:
- Single SATA SSD Max Sequential Data Read/Write: 500/500MB/s
- Single SATA SSD Read/Write IOPS: 75,000 / 65,000
- Access Time: <0.1ms
- Capacities:
- 512GB, 1TB, 2TB, 4TB, 8TB (MLC)
- 256GB, 512GB, 1TB, 2TB (SLC)
- Power Management:
- Input voltage: 5V (±5%)
- Temperature ranges:
- Operation: -40 to 85°C (Industrial)
- Storage: -40 to 95°C
- Intelligent features:
- Flash management algorithm: static and dynamic wear-levelling, bad block management algorithm
- Supports dynamic power management and SMART (Self’-Monitoring, Analysis and Reporting Technology)
- Supports BCH ECC8~80bits/512Bytes or 1KBytes
- Support Power Failure Protection
- TRIM support
- Support AES’-128/256 bits
- Support NCQ
- Support Interface Power Management
- Support Spread’-Spectrum Clocking
- MTBF: >3,500,000 Hours @25C
