Description

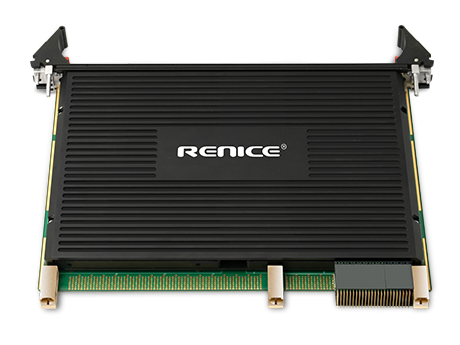

Renice 6U Open VPX Storage Card adopts Renice industrial-grade Solid-state Drive technology, with a maximum capacity up to 32TB. VPX interface can achieve three modes: 1x SATA, 2x SATA and 4x SATA. The single-channel SATA sequential read/write speed is more than 500MB/s. Renice 6U Open VPX Cards have multiple customised functions for options: data AES 256bit encryption, one-key Physical Destruction, and one-key Logical Destruction.
Features
- Host Interface: VPX interface, SATA 6.0Gbps (1 lane, 2 lanes, 4 lanes)
- Form Factor: 6U (233.35mmX160.0mmX25.1mm) L×W×H
- Connector: VPX P0, P1, P2, P3, P4, P5, P6
- Performance:
- Max. Sequential Data Read/ Write (1 SATA): 530/500MB/s
- Access Time: <0.1ms
- Max. Capacity: 32TB
- Power Management:
- Input Voltage: 5V (±5%) or 12V (±5%)
- Temperature Range:
- Operation: -40°C ~+85°C (Industrial)
- Storage: -40°C ~+ 95°C
- Intelligent Features:
- Flash management algorithm: static and dynamic wear-levelling, bad block management algorithm
- SMART (Self-Monitoring, Analysis and Reporting Technology)
- Built-in voltage detector, supports over-voltage & over-current protection
- Real’-time high performance AES’-128 and AES’-256 encryption
- Supports logical destruction and physical destruction
- Supports BCH ECC 80-Bit/1KB
- Write endurance: >35 years @ 100GB write/day (1TB MLC SSD)
- Read endurance: JESD47 compliant
- Date retention: JESD47 compliant
- MTBF: >4000,000 hours @25C
