  • PCI or PCI Express Formats
  • Composite, S-Video, or RGB/YPrPb Inputs
  • Composite, S-Video, or RGB/YPrPb Outputs
  • Extensive Camera Control

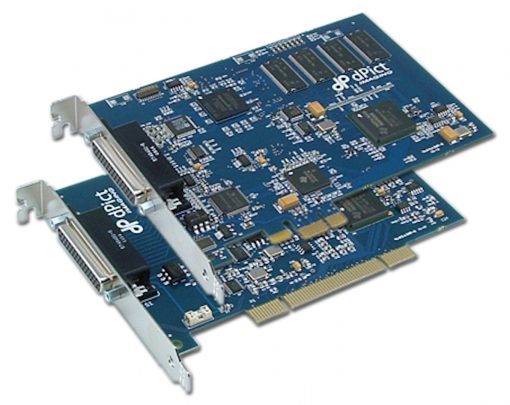

Aexeon is a low-cost, full-featured video acquisition board for analog cameras. Available in either PCI or PCI Express formats, Aexeon incorporates a digital media processor and on-board frame buffer for reliable capture for the most demanding vision-related application. Aexeon’s video input circuitry digitizes between multiple component, S-Video, or composite video signals in either square pixel or CCIR-601 resolutions. With plenty of I/O triggers and extensive camera control, Aexeon is the perfect frame grabber for cost-effective analog camera applications.

PCI Express Support

Aexeon can be ordered in either PCI or PCI Express system interfaces allowing for system compatibility well into the future. PCI Express is the high-performance, next-generation interconnect that increases bandwidth, scalability, and reliability.

Bus-Mastering Performance

Aexeon’s high speed bus-mastering capability with scatter gather support delivers real-time video data to system or display memory simultaneously, without intervention from the host CPU. Video data formatting and resolution is independent between streams, allowing for maximum bandwidth flexibility.

Digital Video Processor

By incorporating an on-board video processor, Aexeon enables maximum flexibility in handling challenging application requirements. Equipped with a 32 MB SDRAM frame buffer, the video processor provides video scaling, pixel formatting, interrupt support, hardware overlay, real-time video processing, and video output functionality.

High-Quality Video Capture

Aexeon provides high-quality 10-bit capture from up to 3 RGB or PrPb component, 4 S-Video, or 9 composite/monochrome video sources in NTSC or PAL format. Video can be captured and stored in either square pixel or CCIR-601 resolutions, and can be scaled to any arbitrary size.

Video Output

Aexeon also supplies RGB or YPrPb component, S-Video, or composite video outputs in NTSC or PAL format. Video output source data is acquired from on-board memory, making it completely independent of the video input. This allows for video output not only from the currently viewed input video, but also from off-screen system memory. Graphics overlay or image processing functions can be applied to the video image before going to the video output.

Extensive Camera Control

Interfacing and controlling cameras with Aexeon is painless. Cameras can be accessed through Aexeon’s on-board RS-232 serial interface and powered through a fused12-volt power output. Aexeon has 8 programmable I/O triggers for camera integration or event triggering. Aexeon also incorporates an on-board microprocessor to guarantee accurate synchronization and robust triggering without relying on the host CPU.

dVeloper Foundation Software Developers Kit

dVeloper is a comprehensive software developers kit that supports all dPict Imaging products, allowing for easy porting to new hardware. dVeloper is royalty free and runs under Microsoft Windows 10, 8, 7, Vista, XP, and Linux operating systems. Source code samples and complete documentation are included in Visual C, C#, and Visual Basic .NET to provide insight to various hardware functions. Samples include video-in-a-window, overlay, video buffering, camera control, and more.

dPiction Capture Application

dPiction is a viewing and capture application for Windows® systems that is included free with any PCI or PCI Express board purchase. It supports video configuration, viewing, and capture for dPict Imaging frame grabbers.


  • PCI or PCI Express Formats
  • Bus-mastering video acquisition
  • Simultaneous real-time transfer of video to system or display memory
  • TI DM642 Digital Media Processor
  • 32 MB SDRAM Frame Buffer
  • High-quality 10-bit input digitization
  • Video scaling to arbitrarily sized windows
  • Up to 3 RGB or YPbPr, 4 S-Video, and 9 composite multiplexed video inputs
  • RGB, YPbPr, S-Video, and composite video output
  • CCIR and square pixel capture resolution
  • NTSC and PAL video formats
  • 8 General purpose I/O triggers
  • On-board microcontroller for robust timing and capture control
  • RS-232 serial input and output
  • 12-volt DC switched output for camera supply
  • Windows® 10, 8, 7, Vista, and XP drivers
  • TWAIN support
  • Free dPiction Capture Application
  • Optional SDK with sample applications


Form Factor

  • PCI or PCI Express Formats
  • PCI 2.2 compliant, 5V and 3,3V universal slot
  • PCI Express x1 connector

Video Inputs

  • Up to 9 composite or monochrome inputs
  • Up to 4 S-Video inputs
  • Up to 3 RGB or YPbPr component inputs

Video Digitization

  • NTSC (J, M, 4.43), PAL (B, D, G, H, I, M, N, Nc, 60), and SECAM (B, D, G, K, K1, L) support
  • High-quality 10-bit digitization
  • Square pixel and ITU-601 resolution support
  • Software programmable control of gain, offset, hue, saturation, and sharpness
  • EEPROM for storing configuration and calibration settings

Video Acquisition

  • Video scaling to randomly-sized windows
  • Bus-mastering video transfers to system or display memory simultaneously
  • Hardware overlay of graphics over video
  • RGB 32/24/16/15/8 and YUV 4:2:2 pixel formats
  • Area of interest transfers to on-board and system memory
  • 32 MB SDRAM video frame buffer
  • Extensive interrupt control for robust capture
  • Real-time image flip, mirror, or rotate

Video Output

  • Composite, S-Video, and component video output
  • Output video can be from video overlay, system memory, or display memory

I/O Control

  • 8 general purpose I/O triggers
  • Triggers programmable as input or output
  • Relay trigger output

Camera Control

  • Micro-controller for reliable capture and control
  • RS-232 serial interface
  • Camera exposure control
  • 12-volt fused DC output for camera power supply

I/O Control

  • 8 general purpose I/O triggers
  • Triggers programmable as input or output
  • Relay trigger output

Physical and Environmental

  • 5.00″(length) x 4.20″ (height)
  • Operating temperature: 0° C to 70° C
  • Relative humidity: 5% up to 95% non-condensing

Ordering Information

  • Aexeon PCI: 10011-001
  • Aexeon PCI Express: 10012
  • dVeloper Foundation SDK for Aexeon: 90015
