Description

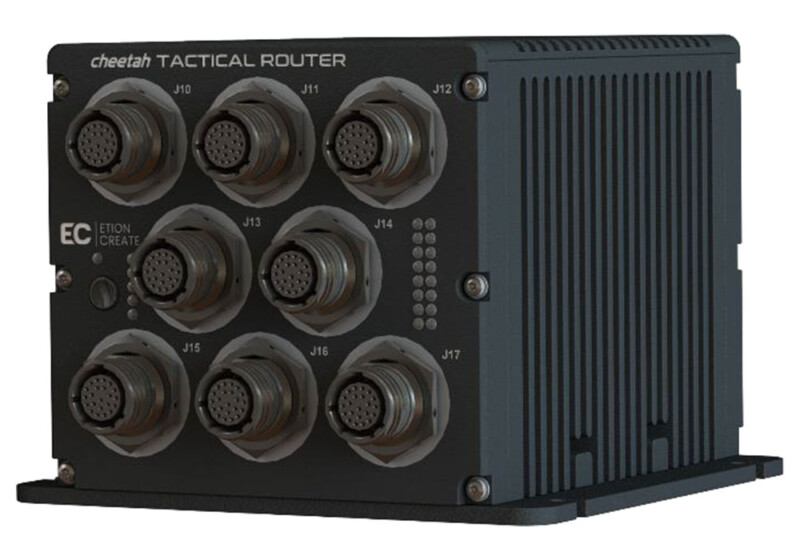

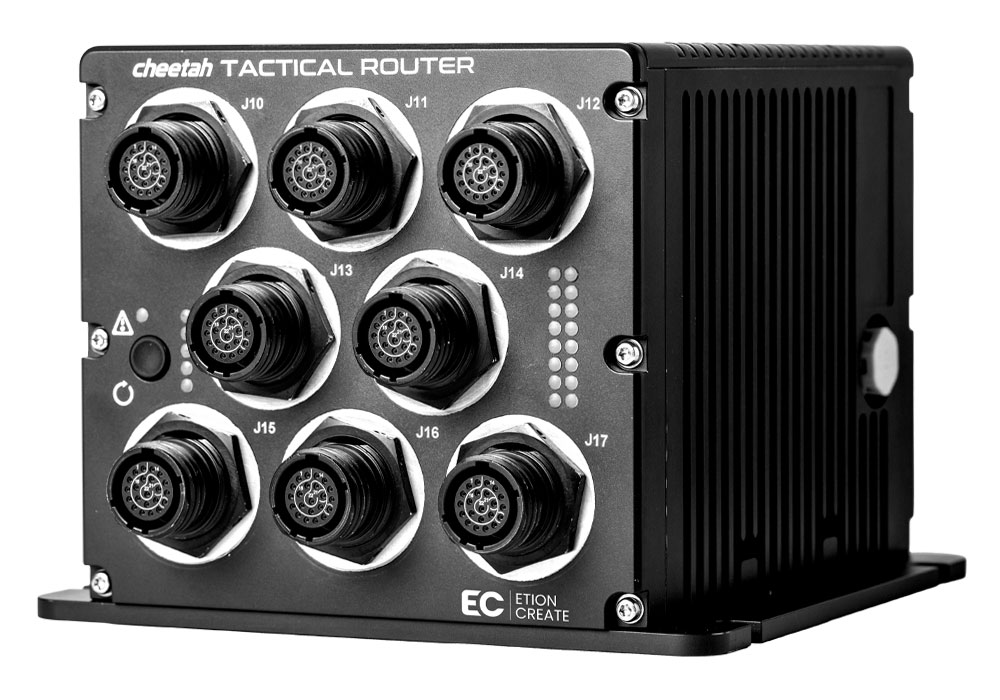

Our VITA90VNX+ Cheetah Router is designed for tough operational conditions; the ruggedised design has been tested to withstand severe customer environments. The NATO Generic Vehicle Architecture (NGVA) compliant router is ideal for vehicle applications, providing security-encrypted connectivity for situational awareness, communications internal and external to the vehicle, as well as Tactical Datalink functions.
Utilising a Linux-based operating system enables the router to host custom software functions as required by the client use case requirements.
Modularity of the system facilitates a cost-effective approach to provide functionality only as needed, with future processing upgrade options a possibility.
Key Features
- VITA 90 VNX+ design with modular expandability
- VITA 90 Tier 1 module management
- Ruggedised design
- Conduction cooling
- IEEE1588 PTP
- Non-ITAR controlled / NGVA compliant
- Web based management interface
- RS232 / RS422 / 2x FDCAN – ISO11898
- Legacy Radio Synchronous Serial interface
- PoE – Power over Ethernet (1x Class3 / x15 Class1)
Optional
- Upgradeable to Mission Computer with CM120 Intel ATOM or NVIDA Jetson Nano VNX+ processing module
- AES256 encryption / Custom encryption VNX+ module
- SSD Storage VNX+ module
- LTE / GNSS VNX+ module
- HUMS – Health and Usage Monitoring System
- Custom VNX+ module design and integration
- 360° Video Processing VNX+ module
