Description

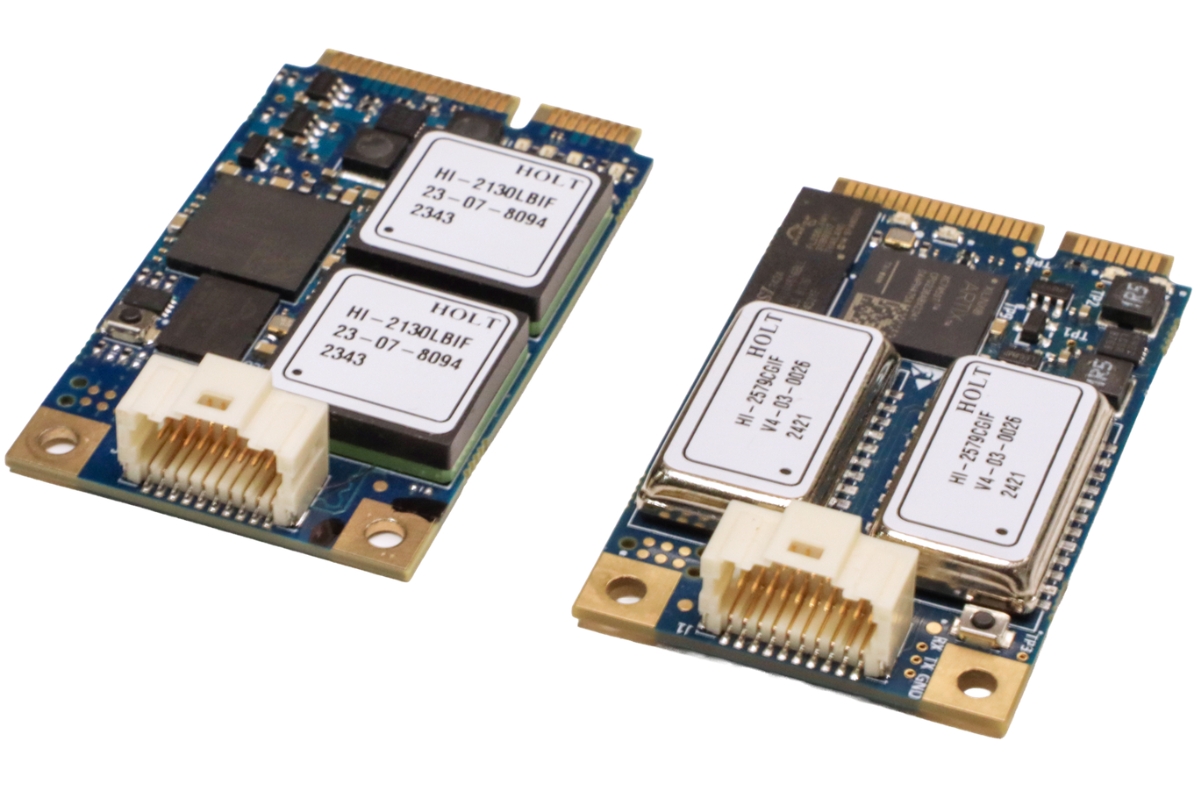

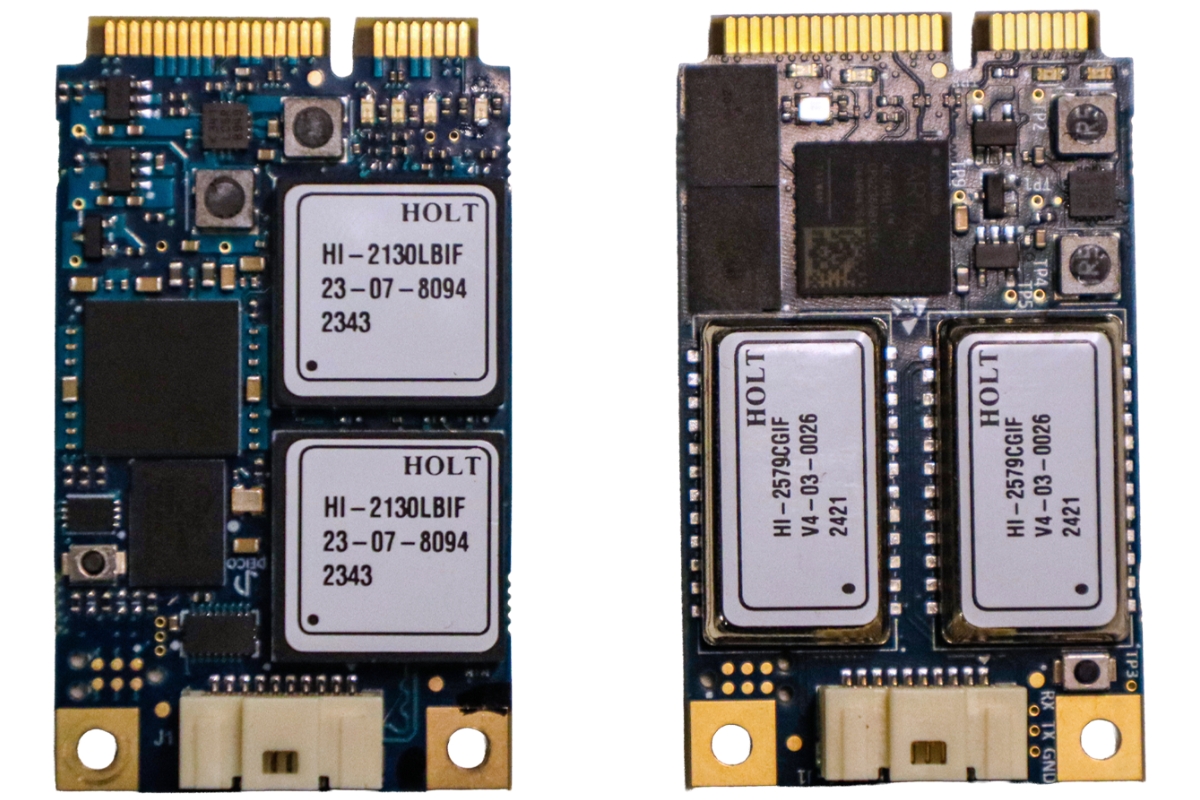

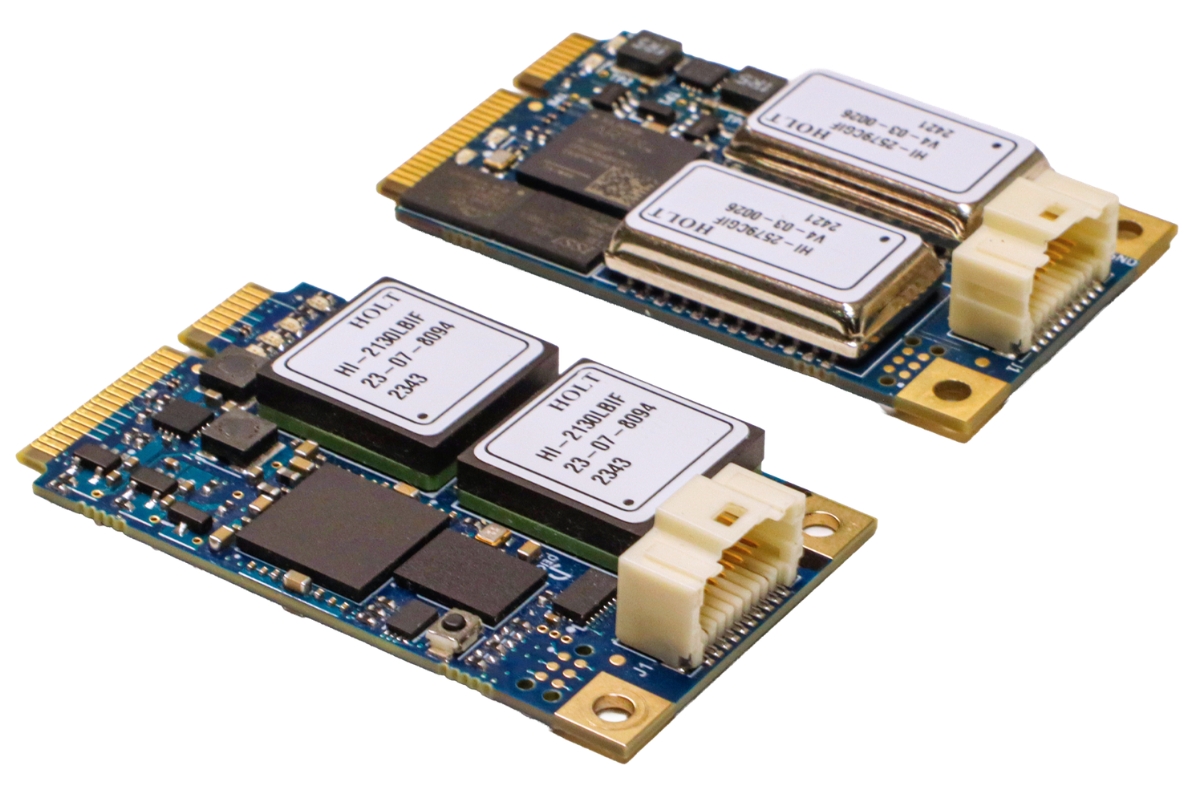

DE150100 Aviolinks® mPCIe MIL-STD-1553 Module 2 CH is a full-size PCI Express mini card. DE150100 supports a 2-channel transformer-coupled dual-redundant MIL-STD-1553B interface. DE150100 is suitable for embedded and portable systems. DE150100 supports bus controller, remote terminal and bus monitoring operating modes.
Key Features
- 2-channel transformer-coupled dual-redundant MIL-STD-1553B interface
- Bus controller/remote terminal/bus monitor operating mode
- 2 remote terminals per channel
- BC external trigger/SS flag
- Comprehensive built-in self-tests
- PCI Express mini card electromechanical specification revision 1.1
- Maximum power consumption of 4 W
- Driver and test software support for Windows, Linux and VxWorks
- MIL-STD-810G environmental requirements compliant
- Lockable connector for MIL-STD-1553B
- Suitable for embedded and portable systems
