EMC²-MPFS250

£1,495.00

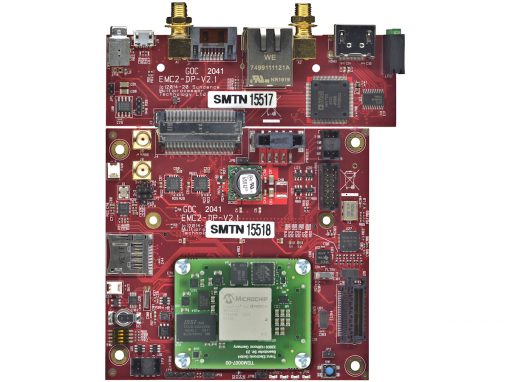

This system comprises an EMC²-DP and a Trenz Electronic SoM, namely the TEM0007-01-CHE11-A

Ask a question



Category:

Description



EMC²-DP

The EMC²-DP is a PCIe/104 OneBank™ Carrier for a Trenz compatible SoC Module and has expansion for a VITA57.1 FMC™ LPC I/O board  and also has I/O pins, using a 100-way Samtec RazorBeam connectors system. The add-on board, called “Sundance External Interface Connector – SEIC”  contains LEDs, RS232, USB2.0, HDMI, 1Gb Ethernet and SATA . The “SEIC” can be customised for individual applications and bespoke connectors.

The PCIe/104 OneBank™ design enables the EMC²-DP to be added to robust and rugged installations for various commercial, medial, industrial and military uses.

  • PCIe/104 OneBank Carrier for Trenz SoC Modules
  • PCI Express Gen 2 compatible and integrate PCI Express switch
  • Infinite number of EMC²-DP can be stacked for large I/O solutions
  • Expandable with any VITA57.1 FMC I/O Module for more flexibility
  • 96mm x 90 mm PC/104 Form-Factor with Cable-less Break-Out PCB Connector



 TEM0007-01-CHE11-A

The Trenz Electronic TEM0007-01-CHE11-A is a low cost small-sized FPGA module integrating a Microchip PolarFire® SoC, 1 GByte LPDDR4 SDRAM and 64 MByte SPI Flash for configuration and operation.



  • Extended commercial grade Microchip PolarFire® SoC MPFS250T-FCVG484E FPGA
  • 1 GByte LPDDR4 SDRAM
  • 64 MByte SPI Flash Memory
  • System Controller CPLD
  • Serial EEPROM with EUI-48 Node Identity
  • 10/100/1000 Mbps Gigabit Ethernet PHY
  • USB2.0 ULPI Transceiver
  • 3 x Samtec LSHM B2B connectors (2 x 100 Pins, 1 x 60 Pins)
  • On-board DC-DC converter
  • Size 4 x 5 cm

Block Diagram
