Description

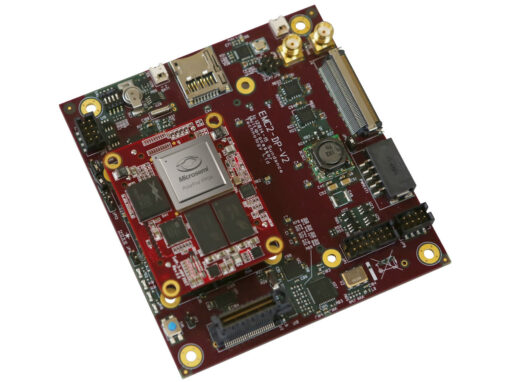

The PCIe/104 OneBank™ design enables the EMC²-SoM3-300 to be added to robust and rugged installations for various commercial, medical, industrial and military uses and to enable more versatility, the EMC²-SoM3-300 also incorporates a VITA57.1 FMC™ LPC connector opening up a range of extra possibilities and expansion options.
- PCIe/104 OneBank I/O board, via a Sundance 40mm x 50 mm SoM3
- PolarFire FPGA for I/O Interface and processing
- Integrated 1Gb Ethernet and optional SATA-2 IP-Core for storage.
- PCI Express Gen 2 compatible and integrated PCI Express switch
- An infinite number of EMC² can be stacked for large I/O solutions
- Expandable with any VITA57.1 FMC I/O Module for more flexibility
- 96mm x 90 mm PC/104 Form-Factor with Cable-less Break-Out PCB Connector
EMC²-SoM3-300 Features:
- PolarFire FPGA MPFT300-1FCVG484E
- Enhanced Operation Temperature: 0°C ~ 100°C (TJ)
- Optional: -40°C ~ 100°C (TJ)
- 300K Logic Elements
- 484 Pin Packages, with up to 284 I/O pins
- Four high-speed serial I/O (XCVR @ 12.7GBPS)
- Enhanced Operation Temperature: 0°C ~ 100°C (TJ)
- Rugged for shock and high vibration
- Plug-on module with 2 x 100-pin and 1 x 60-pin high-speed hermaphroditic strips
- 4 GBytes DDR4 SDRAM, Two 1024Mx16 devices to give 32-bit width-bus.
- 256Mb SPI boot Flash
- Programmable Clock PLL clock generator (SI5338A)
- Gigabit Ethernet transceiver PHY (KSZ9031RNXIC)
- 3.3VDC compatible I/O, 5VDC supply only
- All DC/DC power supplies on board.
- Evenly spread supply pins for good signal integrity.
40 mm x 50 mm standard SoM form factor for upgrades
