FMC ADC 4x 500 MSPS 14 bit (DC coupled)

£1,985.00

A 4-channel 500 MSPS 14 bit ADC card in FMC (FPGA Mezzanine Card, VITA 57.1) format using a High Pin-Count (HPC) connector.

SKU: T0010

Category: FMC Modules

Description

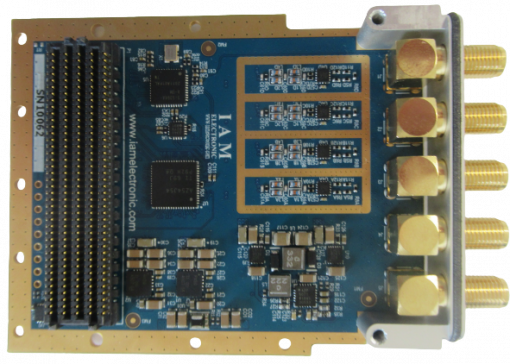

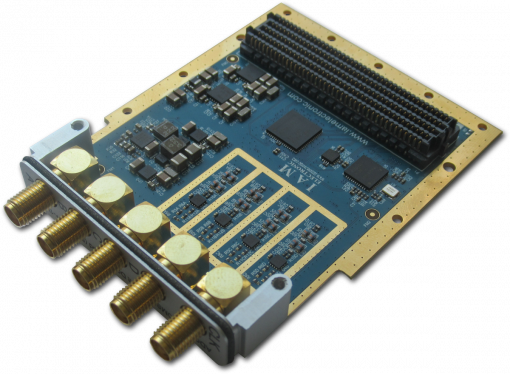

The FMC ADC 4x 500 MSPS 14 bit (DC coupled) is a 4-channel 500 MSPS 14 bit ADC card in FMC (FPGA Mezzanine Card, VITA 57.1) format using a High Pin-Count (HPC) connector. It was developed for the CERN Beam Instrumentation Group and is licensed under CERN Open Hardware Licence v2.

The board has single-width, ruggedized, conduction cooled form factor and is fully ANSI VITA 57.1 compliant. The VADJ voltage must be 1.8 V, and the carrier must support data rates up to 5 Gbps for each JESD204B lane. With 2 lanes per ADC-channel, the maximum data rate is 40 Gbps (8 JESD204B lanes, 5 Gbps per ADC).

Sampling and data clocks are generated by the Si5394A from Silicon Labs. This is a ultra-high-performance jitter attenuator for applications requiring the highest level of jitter performance. The device has an ultra-low jitter of 85 fs and can be quickly and easily configured using ClockBuilder Pro software.

Online Wiki: CERN OHWR: FMC ADC 500M 14b 4cha

Features

  • High-pin count (HPC) connector
  • 4 analog signal inputs
  • DC-coupled, singled-ended 50 Ohm inputs
  • +/- 500 mV analog input voltage range
  • Bandwidth: DC to 500 MHz (or better)
  • SNR: typ. 60 dB
  • 500 MSPS sampling rate, 14 bit resolution, simultaneous sampling
  • JESD204B data interface up to 5 Gbps lane rate (max. 8 lanes)

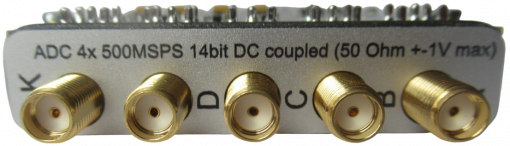

  • SMA connector for external clock reference
  • EEPROM for FRU information storage
  • Open-source hardware

Applications

  • Beamline instrumentation
  • Nuclear electronics
  • Scientific instrumentation
  • High-speed data acquisition
  • Test and measurement instrumentation
  • Digital Pulse Processing
  • Research and education with FPGAs

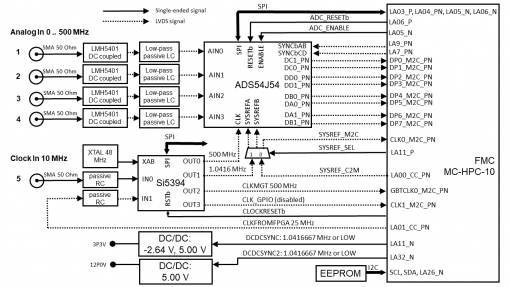

Block Diagram
