Description

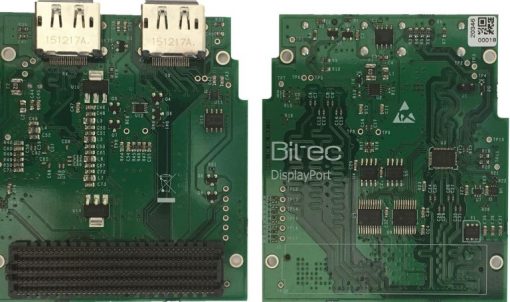

The Bitec FMC Displayport Daughter Card is designed to interface FPGA development kits such as Intel and Microsemi to DisplayPort source and sink devices. The daughter card is compatible with the Bitec DisplayPort IP Core.
Revision 12 represents the latest revision of the DisplayPort daughter card hosting the Kinetic MCDP6000C1 re-timer device on the sink interface.
The board has been tested using numerous third party DP Sinks and Sources and is undergoing Certification to the DP 1.4 standard.
- Source and Sink interfaces
- Supports DisplayPort 1.2 HBR2 data-rate (5.4 Gbps) and DP 1.4 HBR3 (8.1Gbps)
- Compatible with Altera GX development kits
- On board serial EEPROM for HDCP key storage
- Kinetic MCDP6000C1 re-timer device
