RTM-ZU1-A

3U VPX Rear Transition Module
For: VPX3-ZU1B / VPX3-ZU2



 RTM-ZU1-A Datasheet



CONTACT US FOR A QUOTE



Description

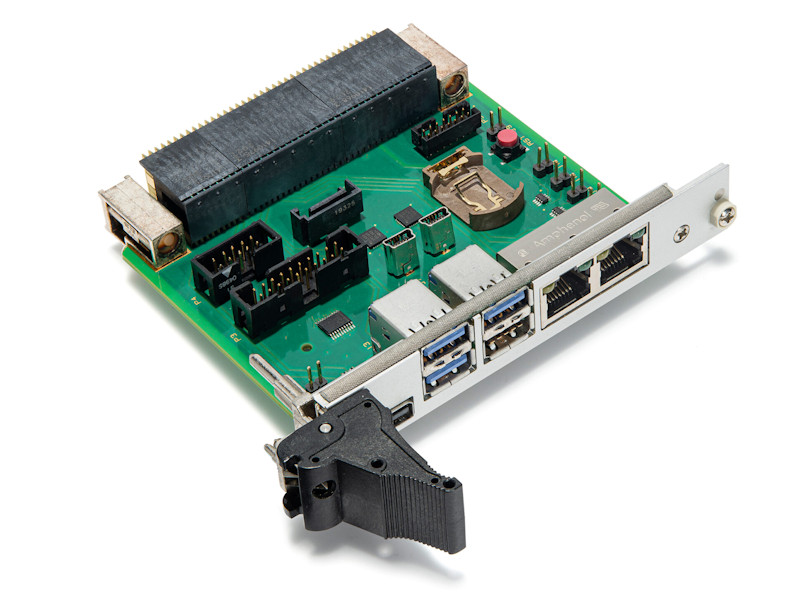

The RTM-ZU1-A is an 3U VPX Rear IO Transition Module for the VPX3-ZU1B 3U VPX AMD Zynq Ultrascale+ MPSoC module from PanaTeQ.

The following interfaces are available through the Rear Panel connectors:

  • 2x Ethernet 100/1000BaseT RJ-45 connectors
  • 2x USB 3.0 Type-A stacked connectors
  • 2x USB 2.0 Type-A stacked connectors
  • 1x mini Display Port 1.2 video output connector

Also these interfaces are available using the on-board vertical connectors:

  • 1x SATA 3.1
  • 1x micro USB UART Zynq
  • 1x micro USB UART BMC
  • 20-pin for 20x GPIOs
  • 10-pin 2x RS-232/422/485 + 2x CAN-bus
  • 14-pin standard Xilinx JTAG Prog/Debug
  • Battery Socket VPX VBAT
  • Push-Button VPX SysReset
  • Main VPX Power Monitoring (VS1, VS2, VS3)

The air cooled PanaTeQ System Development Kit VPX3-ZU1B-PSDK-A is available for the developers and includes a 4U lab chassis with 3/5 slots, the VPX3 -ZU1B-B1M-AS and RTM-ZU1-A boards, a Linux BSP, the PanaTeQ reference designs.



Specifications



  • 3U VPX RTM (100 x 81.5 mm)
  • VITA 46.0, 46.10, 65.0 specifications compliant
  • 0.8 or 1 Inch Rear Panel Width
  • Dual 100/1000 Base-T RJ-45 with status Leds connectors
  • Dual USB 3.0/2.0 Type-A stacked connectors
  • Dual USB 2.0 Type-A stacked connectors
  • Mini DisplayPort 1.2 Video Output connector
  • SATA 3.1 on-board vertical connector
  • Micro USB on-board vertical UART for VPX3-ZU1 Zynq
  • Micro USB on-board vertical UART for VPX3-ZU1 BMC
  • 10x LVDS / 20x GPIOs on-board 20-pin vertical connector
  • 2x RS-232/422/CAN on-board 10-pin vertical connector
  • Power Monitor (VS1, VS2, VS3) with status LEDs
  • On-board Xilinx JTAG Programming/Debugging connector
  • On-board Push-Button VPX SysReset
  • On-board Socket for Battery sourcing VPX VBAT

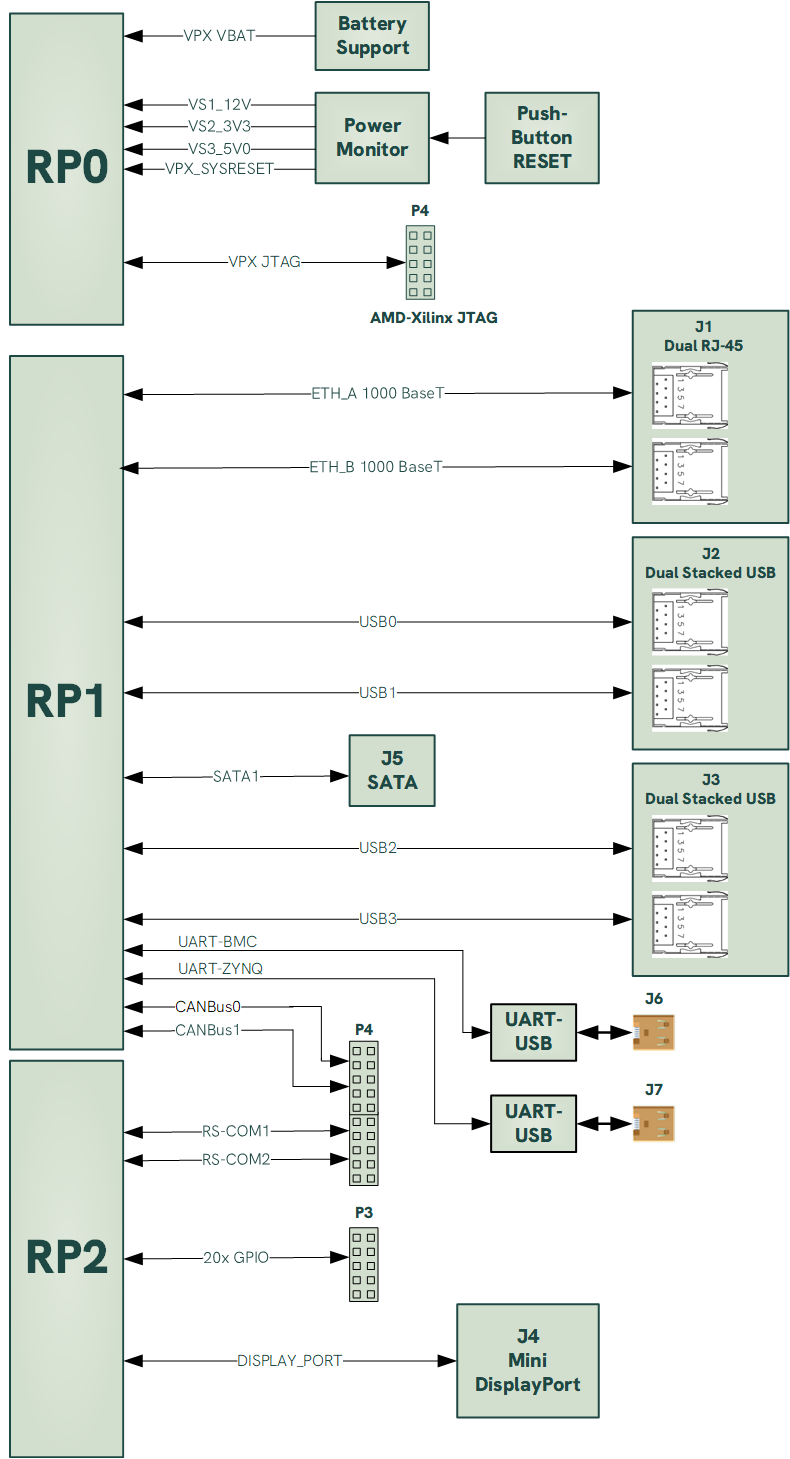

Block Diagram





Ordering Info



RTM-ZU1-A : RTM for VPX3-ZU1 with 0.8 inch Front-Panel
RTM-ZU1-B : RTM for VPX3-ZU1 with 1.0 inch Front-Panel
